Industrial Fixed Barcode Scanner The Advanced RK360 Small Barcode Scanner
Industrial Fixed Barcode Scanner The Advanced RK360 Small Barcode Scanner
Industrial Fixed Barcode Scanner The Advanced RK360 Small Barcode Scanner
Industrial Fixed Barcode Scanner The Advanced RK360 Small Barcode Scanner
Industrial Fixed Barcode Scanner The Advanced RK360 Small Barcode Scanner
Industrial Fixed Barcode Scanner The Advanced RK360 Small Barcode Scanner
Industrial Fixed Barcode Scanner The Advanced RK360 Small Barcode Scanner
Industrial Fixed Barcode Scanner The Advanced RK360 Small Barcode Scanner
Specifications
Brand Name :
RAKINDA
Model Number :
RK360
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability :
200PCS/Week
Delivery Time :
Within 5 working days after receiving the balance
Packaging Details :
Normal craft paper and foam
Weigh :
75g
Light Source :
Visible laser diode 650 nm
Colour Depth :
32 Bit
Response Time :
Less than 0.4 sec
Scan Element Type :
CMOS
Scan Mode :
Trigger/Auto Sense/Continuous reading
Symbol Contrast :
≥30% reflectance difference
Ip Rating :
IP54
Application :
Kiosk/Production line
Sensor :
1280 x 1024 CMOS
Sealing :
IP54
Motion Tolerance :
4 meters/s
Drop Resistance :
1.5 meters
Scan Type :
Laser
Operating Voltage :
3.0~5.5VDC
Description

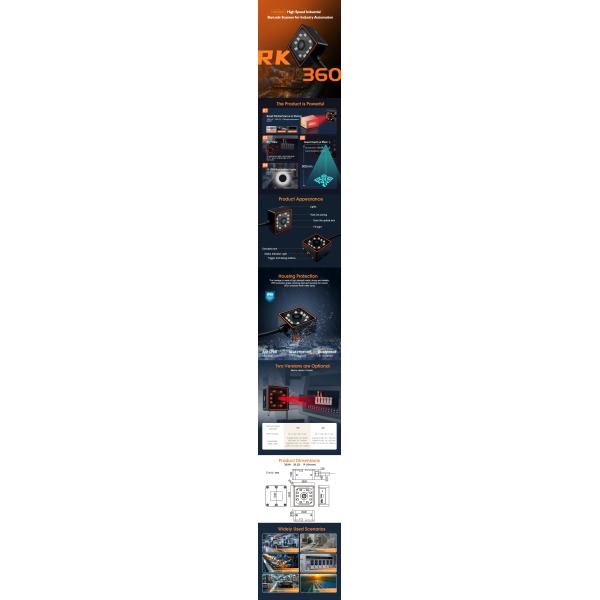

RK360 Small Barcode Scanner for Industrial Fixed Scanner

Enhance your industrial automation processes with the RK360 Small Barcode Scanner, a cutting-edge solution designed to boost operational efficiency and reliability across various industries.


Product Overview

High-Performance Small DPM Barcode Scanner for Industrial Applications

Experience the future of industrial automation with the RK360 Small Barcode Scanner, engineered to deliver unmatched performance and efficiency. This compact barcode scanner is equipped with a high-resolution megapixel image sensor that accurately reads both 1D and 2D barcodes, making it an essential tool for modern industrial environments.

Key features include anti-vibration, anti-dirt, and adaptive brightness technologies, ensuring consistent and reliable operation in even the most challenging conditions. Its lightweight, compact design allows for easy installation in various settings, while its high-strength aluminum alloy construction, coupled with an IP65 protection rating, offers superior durability against dust and water exposure.

Key Features of the RK360 Small Barcode Scanner:
- High-Resolution Megapixel Image Sensor: The scanner is equipped with a 1280*1080 high-resolution image sensor for precise and accurate barcode recognition, crucial for high-speed industrial operations.
- Compact Design & Easy Installation: Featuring proprietary barcode recognition technology, the RK360 delivers fast and efficient barcode scanning in a compact form factor, ideal for space-constrained environments.
- Durable Aluminum Alloy Shell: Constructed from high-strength aluminum alloy and rated IP65, the RK360 offers robust protection against environmental hazards, ensuring longevity and reliability.
- Wide Viewing Angle & High Frame Rate: With a 36° horizontal and 43° vertical viewing angle, along with a 60 FPS frame rate, the scanner’s advanced third-generation decoding technology enables superior dynamic reading performance, even in high-speed applications.

Invest in the RK360 Small Barcode Scanner to enhance your industrial automation systems with state-of-the-art barcode scanning technology, designed for reliability, durability, and top-tier performance.

Parameters of Conveyor belt scanner module

Parameter List
Performance And Specification Parameters Table
Resolution Ratio 1080 (H) * 1280 (V) 1.3M high-performance sensor
Lighting 10 LEDs (3 up and down, 2 left and right), red light source
The Main Chip ARM Cortex-A7,1.2G High-performance CPU, MIPI interface
Aim At The Instructions High-brightness red dots aim
Reading Mode Automatic induction, continuous mode, pulse mode (external trigger)
Field Of View Angle Horizontal (H) 36°, and vertical (V) 43°
1D Reading Code System UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32
Code11, Codabar , Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5
Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded
RSS-14 Limited ,Composite Code
2D Reading Code System PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR , Aztec , Maxi Code
Poor Movement Capacity Continuous scan mode: 0.5 m per second
External trigger mode: 1.0-1.5 m per second
Data Interface
Communication RS232, USB (HID; CDC), EA100: Ethernet / TCP / IP
External Input With external trigger line or control box: 1 optical coupling isolation input (NPN / PNG / relay)
External Output Version of the connection control box: 2 optical coupling isolation output (Good; NG)
Supply Electricity Direct connection version: 5VDC, control box: 5-24 VDC (network port support POE power supply)
Physical Characteristics
Appearance Size 38 (W) 38 (D) 19 (H) (mm), the part without the SR
Weight The host machine is about 40g, without the weight of the wire rod
Case Material Alufer
Case Protection IP65
Reliability
Storage Temperature -40℃~+70℃
Working Temperature -10℃~+50℃
Relative Humidity 5%~95% (no condensation)
Ambient Brightness 0~8,600 Lux (fluorescent) 0~100,000 Lux (daylight)
Safe Code CE EN55022 , FCC Part 15 Class B , CE EMC Class B
Work Vibration 10 to 150HZ,0.5G, 3 axial, 1min / ct, 1 time / axial
Durable Vibration 10 to 150 HZ, 2G, 3 axial, 1min / ct, 20 times / axial direction
Typical Read Code Depth Of Field
The Focal Range is Adjustable HD SR
Read Accuracy 1D ≧3 mil ; 2D ≧5 mil 1D ≧3 mil ; 2D ≧7 mil
Typical Depth Of Field / DOF Code39(3mil):40~140mm
QR (5mil) : 45 ~105mm
Code39(5mil):35 ~210 mm
EAN-13(13mil):30~320mm		 Code39(3mil) : 45 ~150 mm
Code39(5mil) : 30 ~255 mm
EAN-13 (13 mil) : 30 ~500m m
