RFID POE TCP IP Turnstile Qr Code Reader With Wiegand Output
RFID POE TCP IP Turnstile Qr Code Reader With Wiegand Output
RFID POE TCP IP Turnstile Qr Code Reader With Wiegand Output
RFID POE TCP IP Turnstile Qr Code Reader With Wiegand Output
RFID POE TCP IP Turnstile Qr Code Reader With Wiegand Output
RFID POE TCP IP Turnstile Qr Code Reader With Wiegand Output
Specifications
Brand Name :
Rakinda
Model Number :
RD006
Certification :
CE ROHS FCC
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability :
200PCS/Week
Delivery Time :
Within 5 working days after receiving the balance
Packaging Details :
Normal craft paper and foam
Supply voltage :
DC 9~18V(POE Optional)
Relay :
2 Relay
Reading Distance :
10~55mm
Barcode/Card :
1D/2D Barcode, RFID Card
Communication interface :
TCP/IP
Card :
13.56MHZ
Description

RFID POE TCP IP Turnstile Qr Code Reader With Wiegand Output

RFID POE Wiegand TCP IP Turnstile Access Control QR Code Scanner

RD006 Access Control QR Code Scanner Description:

This single-door access control + 2d code scanner engine + the second generation ID card reader three in one card products make site installation and maintenance become simple with lower cost. Besides, RD006 has 2-channel relay output, in addition to 1 channel to control the door lock, other 1 channel to control the door opener, lights, players, valves and so on. The product uses the data memory and the ferroelectric memory, even if the device suddenly power-down, it will not lose the stored data to ensure data safe and reliable. Equipment capacity: card 35,000 pieces, record 50,000 pieces, 2d code times 100,000, records and 2d code times are automatically looped over capacity.

RD006 QR Access Control Device Features:

1. Barcode/QR Code reading is standard function, IC/Mifare card reading is optional.

2. It can read both printed or mobile screen barcodes.

3. Free sdk and demo software.

4. Customizable audio.

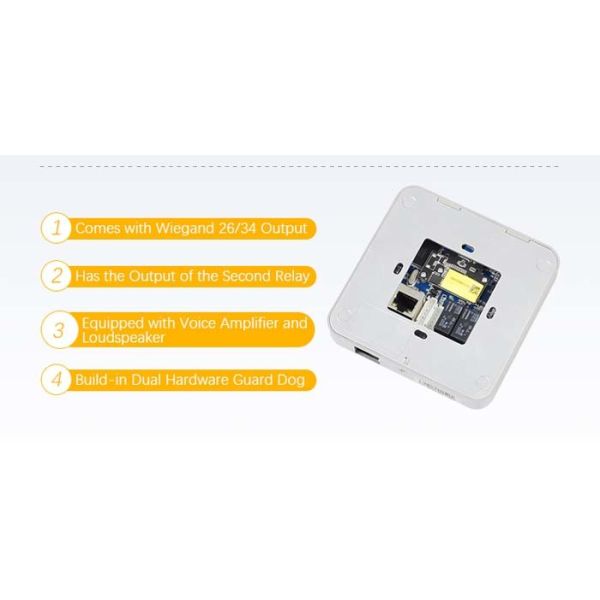

5. With built-in access controller, and 2 replay output.

6. Wifi, Bluetooth, POE function can be added.

Model Name RD006 RD008
Processor ARM+DSP core ARM+DSP core
Memory 85,000 people, 100,000 events 85,000 people, 100,000 events
Verification Speed QR code recognition <0.5S, card recognition <0.1S QR code recognition <0.5S, card recognition <0.1S
Communication Method TCP/IP access, expandable WIFI, bluetooth can be compatible TCP/IP access, expandable WIFI, bluetooth can be compatible
Run Offline Support offline operation Support offline operation
Input and Output Ports Control lock output, exit button and door sensor input, etc. Control lock output, exit button and door sensor input, etc.
Security Input overcurrent protection, instantaneous overvoltage protection Input overcurrent protection, instantaneous overvoltage protection
Power/power Consumption Voltage 12VDC, current <1A Voltage 12VDC, current <1A
Working Environment Humidity 5%~95%, temperature -20℃~60℃ Humidity 5%~95%, temperature -20℃~60℃
Weight 300g 400g

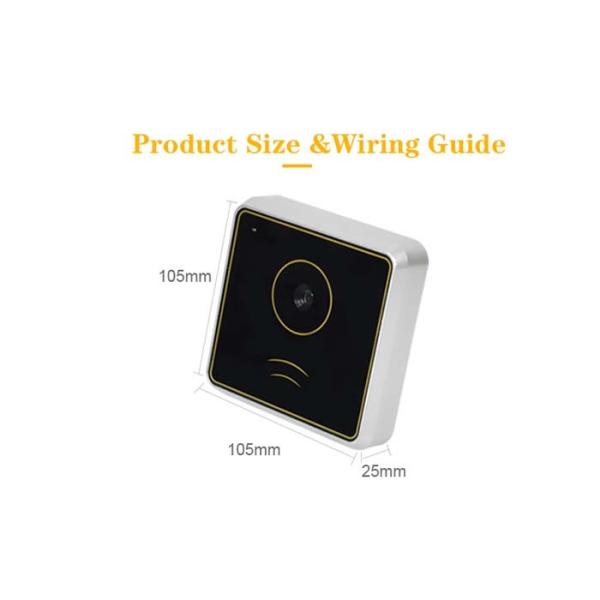

Size 105*105*25mm 110*25*34.62mm
Relay 2 relay 1 relay
Material and Display aluminum alloy Plastic with TFT display RD008 has 1.8-inch TFT color screen, aluminum alloy round case
Standard RJ45 TCP IP Wiegand output RJ45 TCP IP(Weigand Optional )
Optional BT Wifi POE BT Wifi

RFID POE TCP IP Turnstile Qr Code Reader With Wiegand OutputRFID POE TCP IP Turnstile Qr Code Reader With Wiegand OutputRFID POE TCP IP Turnstile Qr Code Reader With Wiegand OutputRFID POE TCP IP Turnstile Qr Code Reader With Wiegand Output

Service Advantages
1. Professional service team, all-round one-to-one person follow-up.
2. Provide professional development kits to help customers solve various related software and hardware developing issues.
3. Two-year quality assurance, life-long maintenance and 24-hour service hotline guarantee the customers' interest.
