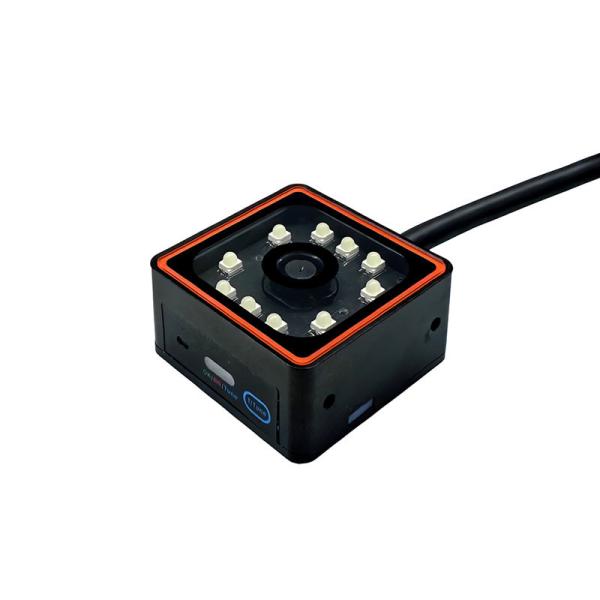

High-Resolution Image Sensor and Compact Size RK360 Ethernet Industrial Fixed Barcode Scanner for Scanning
High-Resolution Image Sensor and Compact Size RK360 Ethernet Industrial Fixed Barcode Scanner for Scanning
High-Resolution Image Sensor and Compact Size RK360 Ethernet Industrial Fixed Barcode Scanner for Scanning
High-Resolution Image Sensor and Compact Size RK360 Ethernet Industrial Fixed Barcode Scanner for Scanning
High-Resolution Image Sensor and Compact Size RK360 Ethernet Industrial Fixed Barcode Scanner for Scanning
High-Resolution Image Sensor and Compact Size RK360 Ethernet Industrial Fixed Barcode Scanner for Scanning
Specifications
Brand Name :
RAKINDA
Model Number :
RK360
Certification :
CE EN55022 , FCC Part 15 Class B , CE EMC Class B
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
Western Union, T/T, Paypal
Supply Ability :
200PCS/Week
Delivery Time :
Within 5 working days after receiving the balance
Packaging Details :
Normal craft paper and foam
Resolution ratio :
080 (H) * 1280 (V) 1.3M high-performance sensor
Chip :
ARM Cortex-A7,1.2G High-performance CPU, MIPI interface
Field of view Angle :
orizontal (H) 36°, and vertical (V) 43°
communication :
RS232, USB (HID; CDC), EA100: Ethernet / TCP / IP
Case protection :
IP65
Appearance size :
38 (W) 38 (D) 19 (H) (mm), the part without the SR
Description

RK360 High-Performance Compact Barcode Scanner for Industrial Automation

With its sleek design and advanced barcode recognition capabilities, this small yet powerful barcode scanner is transforming industrial automation. Equipped with a megapixel high-resolution image sensor, it can efficiently read both 1D and 2D barcodes. The scanner offers anti-vibration, anti-dirt, and adaptive brightness features, ensuring high reliability even in tough environments. Its compact, lightweight design allows for easy installation, making it an ideal choice for various industrial applications. Built with a high-strength aluminum alloy shell and an IP65 protection rating, it is resistant to dust and low-pressure water splashes. The wide-angle lens and third-generation decoding technology ensure optimal performance, even when scanning fast-moving objects.

Product Features:
- Megapixel Image Sensor: The 1280x1080 high-resolution sensor enhances barcode recognition accuracy, ensuring swift and accurate scanning of a wide range of barcodes.
- Compact & Easy Installation: Designed with self-developed barcode recognition technology, the scanner offers efficient performance in a compact size, making it perfect for space-constrained environments.
- Durable & Reliable: The sturdy aluminum alloy housing, paired with an IP65 rating, protects the device from dust and water splashes, ensuring long-lasting durability in industrial settings.
- Wide Viewing Angle & High Frame Rate: The optical lens offers a 36° horizontal and 43° vertical viewing angle, with a 60FPS frame rate. Combined with third-generation decoding technology, it delivers superior performance for dynamic barcode reading.

This product is ideal for businesses seeking to boost efficiency and accuracy in industrial automation with cutting-edge barcode scanning technology.

Parameters of Ethernet Barcode Reader

Parameter List
Performance And Specification Parameters Table
Resolution Ratio 1080 (H) * 1280 (V) 1.3M high-performance sensor
Lighting 10 LEDs (3 up and down, 2 left and right), red light source
The Main Chip ARM Cortex-A7,1.2G High-performance CPU, MIPI interface
Aim At The Instructions High-brightness red dots aim
Reading Mode Automatic induction, continuous mode, pulse mode (external trigger)
Field Of View Angle Horizontal (H) 36°, and vertical (V) 43°
1D Reading Code System UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32
Code11, Codabar , Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5
Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded
RSS-14 Limited ,Composite Code
2D Reading Code System PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR , Aztec , Maxi Code
Poor Movement Capacity Continuous scan mode: 0.5 m per second
External trigger mode: 1.0-1.5 m per second
Data Interface
Communication RS232, USB (HID; CDC), EA100: Ethernet / TCP / IP
External Input With external trigger line or control box: 1 optical coupling isolation input (NPN / PNG / relay)
External Output Version of the connection control box: 2 optical coupling isolation output (Good; NG)
Supply Electricity Direct connection version: 5VDC, control box: 5-24 VDC (network port support POE power supply)
Physical Characteristics
Appearance Size 38 (W) 38 (D) 19 (H) (mm), the part without the SR
Weight The host machine is about 40g, without the weight of the wire rod
Case Material Alufer
Case Protection IP65
Reliability
Storage Temperature -40℃~+70℃
Working Temperature -10℃~+50℃
Relative Humidity 5%~95% (no condensation)
Ambient Brightness 0~8,600 Lux (fluorescent) 0~100,000 Lux (daylight)
Safe Code CE EN55022 , FCC Part 15 Class B , CE EMC Class B
Work Vibration 10 to 150HZ,0.5G, 3 axial, 1min / ct, 1 time / axial
Durable Vibration 10 to 150 HZ, 2G, 3 axial, 1min / ct, 20 times / axial direction
Typical Read Code Depth Of Field
The Focal Range is Adjustable HD SR
Read Accuracy 1D ≧3 mil ; 2D ≧5 mil 1D ≧3 mil ; 2D ≧7 mil
Typical Depth Of Field / DOF Code39(3mil):40~140mm
QR (5mil) : 45 ~105mm
Code39(5mil):35 ~210 mm
EAN-13(13mil):30~320mm		 Code39(3mil) : 45 ~150 mm
Code39(5mil) : 30 ~255 mm
EAN-13 (13 mil) : 30 ~500m m
