Specifications
Brand Name :
Rakinda
Model Number :
LV2097
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
1
Price :
USD+50-85$+1pcs
Payment Terms :
T/T, Paypal, Credit card
Supply Ability :
1000+pcs+per week
Packaging Details :
Paper Carton package
Image Sensor :
640*480 CMOS
illumination :
White LED
Aiming :
Red LED (625nm)
Symbologies :
1D/2D/PDF417/QR/Data Matrix
Dimension :
21.5(W)*9.0(D)*7.0(H)
Application :
POS/PDA/Handeld medical device
Operating temperature :
-20℃ to 55℃
Scan mode :
sense mode/continuous mode
Description

Arduino Raspibeery Pi Barcode Scanner Module Mini CMOS Laser 650nm 1D 2D

Arduino Raspibeery Pi Barcode Reader Mini CMOS Laser 650nm 1D 2D QR Scan Engine Scanner Module

LV2097 barcode scanner description:

LV2097 is Rakinda latest OEM Mini 1D QR scanning engine, can fast scan paper and phone screen barcode.

Very suitable for Bluetooth Ring Scanner, Bluetooth Pocket Scanner, Necklace barcode scanner, PDA, Tablet, Notebook and Etc.

LV2097 Scanner engine main features:

1: Compact& Light weight Design

Seamless integration of imager and decoder board make the scan engine extremely smallest and light weight

and easy to fit into miniature equipment.

2: Snappy On-Screen Barcode Capture

The LV2097 excels at reading on-screen barcodes even when the screen is covered with protective film or set to

its lowest brightness level.

3: Outstanding Power Efficiency

The advanced technology incorporated in the scan engine helps reduce its power consumption and prolong its service life.

LV2097 Scanner Engine Application scenarios:

Traditional self-service devices, PDAs, tablets and other thin& light mobile devices

Compatible OS: Android, Windows, Linux

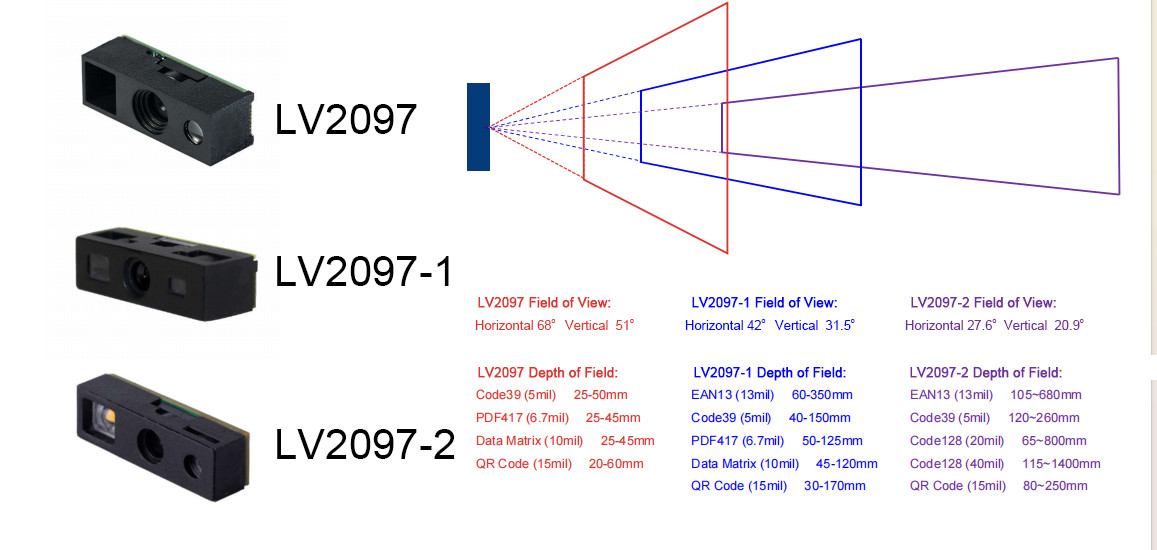

LV2097 Mini size scanner module Parameters:

Performance Image Sensor 640X480 CMOS
Illumination White LED
Aiming Laser 625nm
Symbologies 2D QR, PDF417, Micro QR, Data Matrix
1D Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E,Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
Resolution* 3mil
Typical Depth of EAN13(13mil) 60mm-350mm
Field* PDF417(6.7mil) 50mm-125mm
Code39 (5mil) 40mm-150mm
Data Matrix (10mil) 45mm-120mm
QR Code(15mil) 30mm-170mm
Symbol Contrast* N20%
Scan Angle** Pitch: ±60°, Skew: ±60°, Roll: 360°
Field of View Horizontal: 42°, Vertical: 31.5°
Mechanical/ Interface TTL-232, USB
Electrical Dimensions (mm) 21.5(D)x9(D)x7(H)
Weight 1.2 g
Operating Voltage 3.3±10% VDC
Current @3.3 VDC Operating 138mA (typical)
Idle 11.8mA
Environmental Operating -20°C~+55°C
Storage -40°C~+70°C
Humidity 5%~95% (non-condensing)
Ambient Light 0-100000 lux (natual light)
Certifications FCC Parti 5 Class B, CE EMC Class B

Arduino Raspibeery Pi Barcode Scanner Module Mini CMOS Laser 650nm 1D 2D

Arduino Raspibeery Pi Barcode Scanner Module Mini CMOS Laser 650nm 1D 2D

Arduino Raspibeery Pi Barcode Scanner Module Mini CMOS Laser 650nm 1D 2D

Arduino Raspibeery Pi Barcode Scanner Module Mini CMOS Laser 650nm 1D 2D

Arduino Raspibeery Pi Barcode Scanner Module Mini CMOS Laser 650nm 1D 2D
