RD4500I Laser Scanner Module 200 Scans/S Fixed Mount Payment Terminal
RD4500I Laser Scanner Module 200 Scans/S Fixed Mount Payment Terminal
RD4500I Laser Scanner Module 200 Scans/S Fixed Mount Payment Terminal
RD4500I Laser Scanner Module 200 Scans/S Fixed Mount Payment Terminal
Specifications
Brand Name :
RAKINDA
Model Number :
RD4500I
Certification :
CE,FC,ROHS
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiate
Payment Terms :
T/T, D/P,Paypal
Supply Ability :
50000pcs/Month
Delivery Time :
3 to 5 days
Packaging Details :
A box contains a scanner and accessory USB/RS232 cable
Name :
Barcode scanner module
Scan Element Type :
CMOS
Scan Speed :
200 scans/s
Interface Type :
USB, RS232
Image Sensor :
752×480 CMOS
Scanning Light Source :
Natural Light+LED
Size :
82mm(L) X 72mm (W) X 52mm(H)
Description

Laser scanner module RD4500I 2d scan engine fixed mount payment terminal PDF417 cod 39

RD4500I 2d scanner-Specification.pdf

Feature:

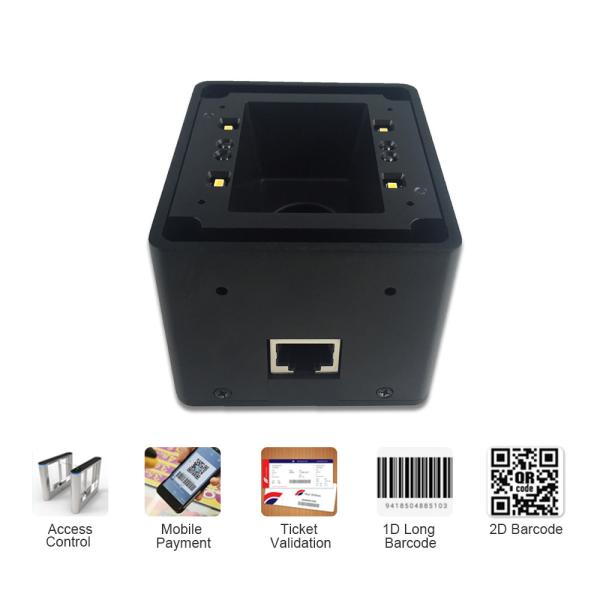

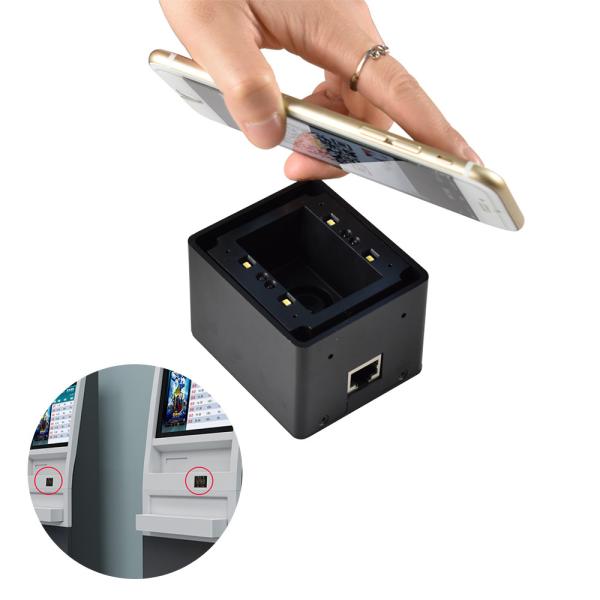

The RD4500I fixed-mount 2D imager module provides a stand-alone solution for scanning 1D and 2D barcodes, whether decoding mobile phone screens or paper. It offers a number of differentiating features that simplify installation (e.g., cable connector compatibility and more mounting options) and enhance performance (e.g., wide-angle, laser pointer and illumination, enhanced scan time and print contrast, and higher range of working temperature). Its unique design simplifies the installation and deployment of various kiosk applications.


Application:

1) Self-service kiosks and ticket machines
2) Access control doors and revolving doors for sports venues, building access and traffic
3) Retail voucher redemption and membership card
4) Parking lot ticket machines and automatic barriers
5) Casino and TITO game machines

Interface:

The RD4500I 2D fixed mount bar code reader supports USB, RS232, TTL232, RS485 and Wiegand interfaces to meet different needs.

QR Code Scanner Parameters:

Performance
Processor IOTC 0370 CHIP
Image Sensor 752×480 CMOS
Interface RS-232 (9.6~115.2Kbps) / USB 1.1 (HID-KBW, HID-POS)
Symbologies 2D PDF417, Data Matrix, QR Code
1D EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey
Scan Mode Type Sense mode
Resolution 10mil
Light Source White LED
Scan Window 38.3mm×60.4mm
PCS ≥30%
FOV Diagonal: 85°, Horizontal: 63.7°, Vertical: 70°
Mechanical/Electrical
Power Consumption 1.75W (max.)
Notification Beep
Size (L x W x H) 84×74×50mm
Weight 300g
