Specifications
Brand Name :
SCANMAX
Model Number :
SM-8288A
Certification :
GB/T7722-2005
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability :
200PCS/Week
Delivery Time :
Within 5 working days after receiving the balance
Packaging Details :
Normal craft paper and foam
Working frequency :
902~928 MHz or 865~868MHz
Protocol :
ISO18000-6C(EPC C1 GEN2)
Working way :
Buzzer & LED
Antenna gain :
10dBi polarization
Description

Description

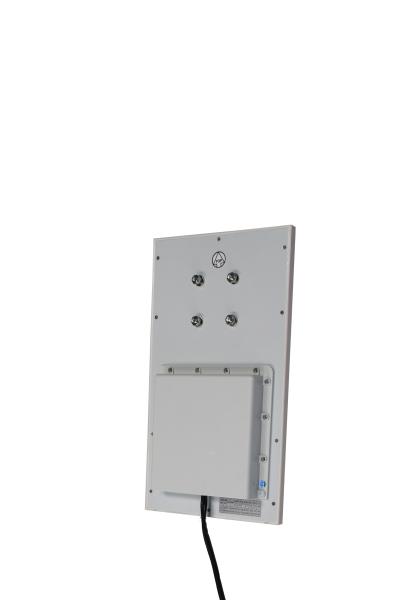

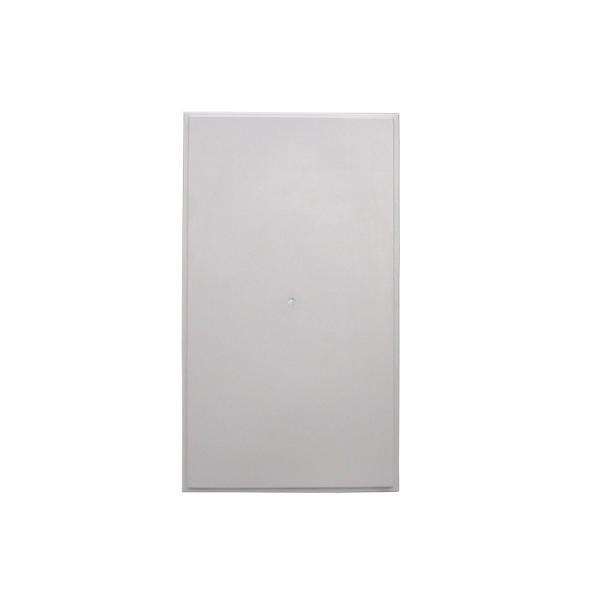

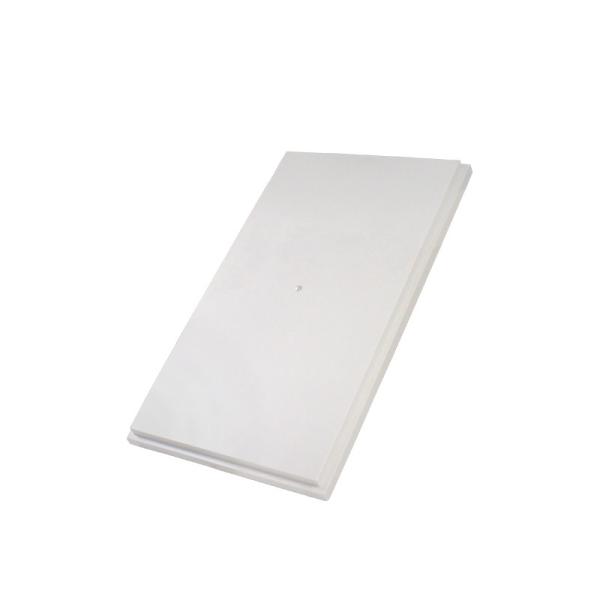

SM-8288A fixed RFID reader could be applied in various harsh working environment for multiple protocol compatible and reading fast. Full support the tag of ISO-18000-6C or ISO-18000-6B. Its stable reading distance is 12 - 15m (related to the tag and environment), it has a beautiful shape. IP-65 protection case for water-proof, easy to install.

SM-8288A Fixed RFID Reader Key Features

1. A shape of linear, the LED will light when read a tag.

2. Could used in some very cold area, such as northeast and northwest, because its ability of lighting-resisting and lower temperature protection.

3. The output power is 30dbm, support multi work modes (auto, command, triggering).

4. Applied in various application: vehicle and entrance guard, electronic free collection, logistic management and production automatic.

5. Can connect with the device which has W26 and W34 interface, no need to develop.

6. Wake up tags: tag only be waked up when communicate with reader, prevent the disturbing from other tags, ensure the correct information between reader and system's tag.

Mainly application as follows:

1. Parking management: Long range intelligent parking management and automatic charge without stop the car.
2. Production line management: Goods identification for production flow.
3. Auto Access control: Long range access control management for custom, sea port.
4. Logistics and warehouse management.
5. People auto registry for important meeting or exhibition.
6. Automatic weighing and data capture.

SM-8288A Fixed RFID Reader Specification

Performance parameters
Working Frequency 902~928 MHz or 865~868MHz
Protocol ISO18000-6C(EPC C1 GEN2)
Radio frequency power 0dBm～30dBm(Adjustable)
Software & SDK DEMO and C#, VC, VB, Java, DELPH, etc.,
Encryption Can be directly encrypted, copy prevention.
Reading range stable reading range 12~15M (Depends on tag&environment)
Industrial lightning protection 6000V industrial lightning protection
Low temperature protection Northeast, Northwest extremely cold region, low temperature protection
Frequency modulation way Broad spectrum frequency hopping or fixed frequency
Input/output port Two-way relay output(customized), one-way trigger input
Antenna gain 10dBi polarization
Working way Buzzer & LED
Power 12V/3A Adaptor
Physical parameters
Item size 420x240x50mm
Package size 600x310x110mm
Net weight 4KG
Shell material ABS
Working temperature -20℃~+65℃
Storage temperature -45℃~+95℃
