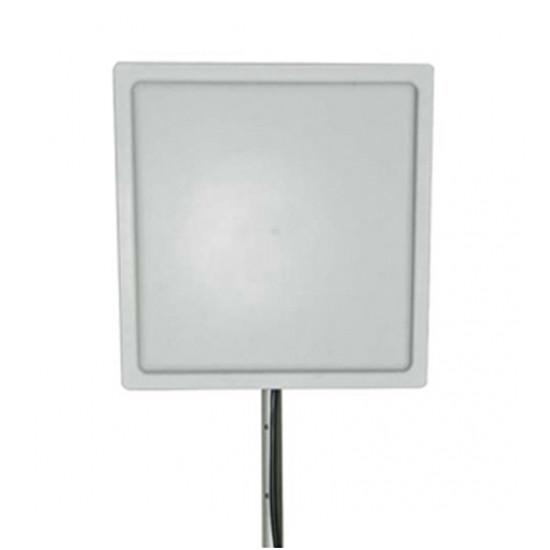

Outdoor 12dBi UHF RFID Reader IP66 Waterproof 25M Multi - Protocol Support
Outdoor 12dBi UHF RFID Reader IP66 Waterproof 25M Multi - Protocol Support
Specifications
Brand Name :
SCANMAX
Model Number :
SM-8290A
Certification :
GB/T7722-2005
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability :
200PCS/Week
Delivery Time :
Within 5 working days after receiving the balance
Packaging Details :
Normal craft paper and foam
Working Frequency :
902~928 MHz or 865~868MHz
Protocol :
ISO18000-6C (EPC C1 GEN2)
Software & SDK :
DEMO and C#, VC, VB, Java, DELPH, etc.,
Reading range :
stable reading range 25M (Depends on tag&environment)
Description

Long Range RFID Reader Features:

1. Multi-protocol support: ISO 18000-6B & ISO 18000-6C (EPC Gen2);

2. Super anti-interference ability for its FHSS frequency working method;

3. Software with different Programming language allows easy upgrade;

4. Waterproof and sunshine defending, idea for outdoor applications;

5. All kinds of communication interfaces can be customized;

Application:

1. Transportation vehicle management: Monitor and manage the transportation of vehicle and container.

2. Custom management: custom clearance and transit of material.

3. Logistic management: manage the flow of commodity, mail and package.

4. Manufacturing sequence: monitor parts during the whole productive process.

5. Device management: monitor the flow of device.

SM-8290A Long Range RFID Reader Specification

Performance parameters
Working Frequency 902~928 MHz or 865~868MHz
Protocol ISO18000-6C (EPC C1 GEN2)
Radio frequency power 0dBm~30dBm (Adjustable)
Software & SDK DEMO and C#, VC, VB, Java, DELPH, etc.,
Encryption Can be directly encrypted, copy prevention.
Reading range stable reading range 25M (Depends on tag&environment)
Industrial lightning protection 6000V industrial lightning protection
Low temperature protection Northeast, Northwest extremely cold region,low temperature protection
Frequency modulation way Broad spectrum frequency hopping or fixed frequency
Input/output port Two-way relay output (customized), one-way trigger input
Antenna gain 12dBi polarization
Working way Buzzer
Power 12V/3A Adaptor
Physical parameters
Item size 450x450x50mm
Package size 600x480x110mm
Net weight 5KG
Shell material ABS
Working temperature -40℃~+65℃
Storage temperature -45℃~+95℃
