Fixed UHF RFID Reader EPC Global Class 1 Gen 2 Protocol 0-30m Aluminum Alloy Case
Fixed UHF RFID Reader EPC Global Class 1 Gen 2 Protocol 0-30m Aluminum Alloy Case
Fixed UHF RFID Reader EPC Global Class 1 Gen 2 Protocol 0-30m Aluminum Alloy Case
Fixed UHF RFID Reader EPC Global Class 1 Gen 2 Protocol 0-30m Aluminum Alloy Case
Fixed UHF RFID Reader EPC Global Class 1 Gen 2 Protocol 0-30m Aluminum Alloy Case
Fixed UHF RFID Reader EPC Global Class 1 Gen 2 Protocol 0-30m Aluminum Alloy Case
Fixed UHF RFID Reader EPC Global Class 1 Gen 2 Protocol 0-30m Aluminum Alloy Case
Fixed UHF RFID Reader EPC Global Class 1 Gen 2 Protocol 0-30m Aluminum Alloy Case
Specifications
Brand Name :
SCANMAX
Model Number :
SM-RF807
Certification :
GB/T7722-2005
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability :
200PCS/Week
Delivery Time :
Within 5 working days after receiving the balance
Packaging Details :
Normal craft paper and foam
Weight :
2.5 kg (5.5 lb)
Case Material :
Aluminum Alloy
Operating Temperature :
-20°C to 70°C (-4°F to 158°F)
Storage Temperature :
-30°C to +75°C (32°F to 104°F)
Humidity Range :
-30°C to 75°C (-22°F to 167°F), 5% to 95%, non-condensing
FCC North America :
902-928Mhz
Description

There are multiple types of readers; fixed RFID, portable rfid readers, handheld RFID readers. To read a high density of tags or requirements of 100% accuracy in detection, the best fixed RFID reader is SM-RF807. It can be widely applied in many RFID application systems such as logistics, access control and anti-counterfeit and industrial production process, control system.

Fixed RFID Reader Key Features

1. Mature Technology
2. Stable Performance
3. Long Distance Reading from 0-30m
4. Hot selling with safe stock always
5. Support POE and IP54 Industrial Protection
6. TCP/IP and RS232 communication

Fixed UHF RFID Reader EPC Global Class 1 Gen 2 Protocol 0-30m Aluminum Alloy Case

Fixed UHF RFID Reader EPC Global Class 1 Gen 2 Protocol 0-30m Aluminum Alloy Case

UHF Advantage

1. UHF reading with fast speed and sensitive performance
2. It meets the ISO 18000-6C standard
3. It supports EPC global Class 1 Gen 2 protocol
4. The Dual CPU design

Fixed RFID Reader Parameters

Physical Parameters
Dimensions 360 mm x 220 mm x 39 mm(14.17 in x 8.66 in x 1.54 in)
Weight 2.5 kg (5.5 lb)
Case Material Aluminum Alloy

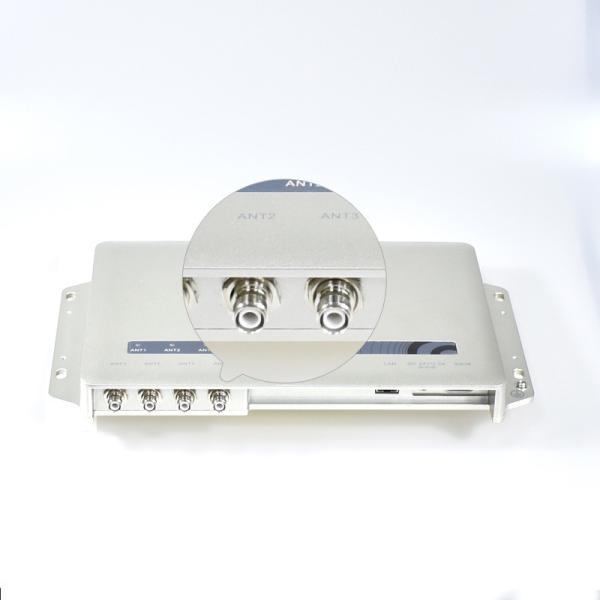

Antenna Interface 4 TNC External Antenna Interface
Working Environment
Operating Temperature -20°C to 70°C (-4°F to 158°F)
Storage Temperature -30°C to +75°C (32°F to 104°F)
Humidity Range -30°C to 75°C (-22°F to 167°F)
5% to 95%, non-condensing
Power Source
Adapter(not included) AC Input 100-240V, 50-60Hz;
DC Output 24V±5%/2.5A
DC Power Supply 24V-30V (24V/2.5A recommended)
POE supply(Option) Support IEEE802.3AF & IEEE802.3AT protocol
Power Consumption 5W to 24W
Frequency Supported
SSRRC China 840-845Mhz, 920-925Mhz
FCC North America 902-928Mhz
ETSI Europe ETSI Europe
Communication Interface & Network Protocol
Interface RS232,10/100M Ethernet
GPIO Interface 4 channels of opto-isolated input (5V, <20MA)
4-way relay control output (30V, <1000MA)
Network Protocol TCP/IP,DHCP,SSH,FTP,TELNET,UDP
Performance Parameter
GPIO 4 Photoelectric Isolation Input (5 V, <20 mA); 4 Relay Control
Tag Data Rate (Relevant to Configurations)
RF Output Power 40 kbps to 400 kbps, 11 dBm to 33 dBm (step of 1 dBm)
Product Certification
CMIIT ID 2012DP2304
FCCID TQ4XC-RF807
CE ID ES120229146E

Fixed UHF RFID Reader EPC Global Class 1 Gen 2 Protocol 0-30m Aluminum Alloy Case

Our Successful Cases:

All the lanes of the Hong Kong-Zhuhai-Macao Bridge are equipped with advanced RFID electronic identification for identification of people and vehicles. The core RFID reader equipment is provided by us. (Goverment use our SM-RF807 Reader and SM-AF35 Antenna)

Fixed UHF RFID Reader EPC Global Class 1 Gen 2 Protocol 0-30m Aluminum Alloy Case
