Specifications
Brand Name :
SCANMAX
Model Number :
F3
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
Western Union, T/T, Paypal
Supply Ability :
200PCS/Week
Delivery Time :
Within 5 working days after receiving the balance
Packaging Details :
Normal craft paper and foam
CPU :
6 cores, clocked at 2.0GHz
OS :
Android 7.1.2
IP Protection :
IP54
Power :
DC12V (±10%) /3A
Equipment size :
239.2mm*123.2mm*26.4mm
Weight :
≈1050g
Description

Product Features:

- Dynamic detection to solve the deception of various photos on various carriers.

- Nighttime infrared, RGB fill light.

- Support external QR code scanner and ID card reader.

- Support RS232 serial port, Wiegand 26 output, output content support configuration.

- Adopt dynamic video face detection and tracking recognition algorithm based on video stream.

- Support the device to store 10,000 database locally.

- Fast recognition

(a) Face tracking and detection takes about 20ms.

(b) Face feature extraction takes about 200ms.

(c) In vivo detection of face comparison time 0.6ms (1000 people library, multiple recognition average), 0.8ms (10000 people library, multiple recognition average).

- Support public network and LAN deployment mode.

- Support HTTP interface interface docking.

- Support screen display content configuration.

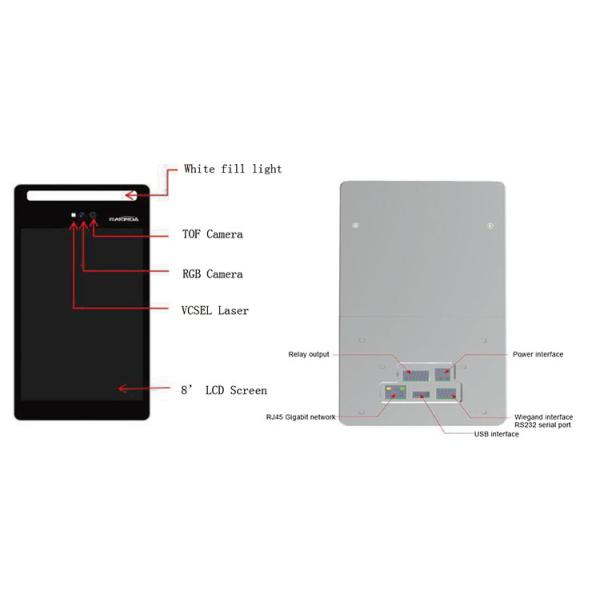

Product Parameters:

Screen Size 8", full viewing angle, 170° IPS LCD
Resolution 800*1280
Camera Type RGB TOF
Resolution (horizontal × vertical) Support 1080P/960P/720P/VGA 640× 480 Pixel
Field of view (horizontal × vertical) 74° × 56° @960P (Default) 80° × 60°
63° × 37° @1080P
74° × 42° @720P
74° × 56° @VGA
Frame rate (FPS) Maximum 30FPS @960P/720P/VGA Up to 15FPS @1080P MAX 30FPS
Detection distance (unit: meter) 0.35-1.2
light source 850nm VCSEL
Working temperature (degree Celsius °C) 0℃-50℃
Core parameter CPU 6 cores, clocked at 2.0GHz
RAM 2G
ROM 16G
OS Android 7.1.2
Parts Fill light Infrared, LED fill light
Network module Support wired, wireless (2.4GWi-Fi), wireless (USB external)
Bluetooth Module 4.0
4G communication module Optional (built-in or external)
ID card reader Optional (built-in or external)
GPS Optional (built-in or external)
Port USB USB2.0 1
RD232 RS232 serial port, 2.5mm terminal block 2P
Relay output 2.5mm terminal block 3P
Wiegand interface 2.5mm terminal block 3P, support Wiegand 26
Wired network interface RJ45 Gigabit network
General parameters IP Protection IP54
Power DC12V (±10%) /3A
Operating temperature -20℃ ~70℃
Working humidity 10%~90 %
Power consumption 22W MAX
Installation method Wall bracket installation, gate bracket installation

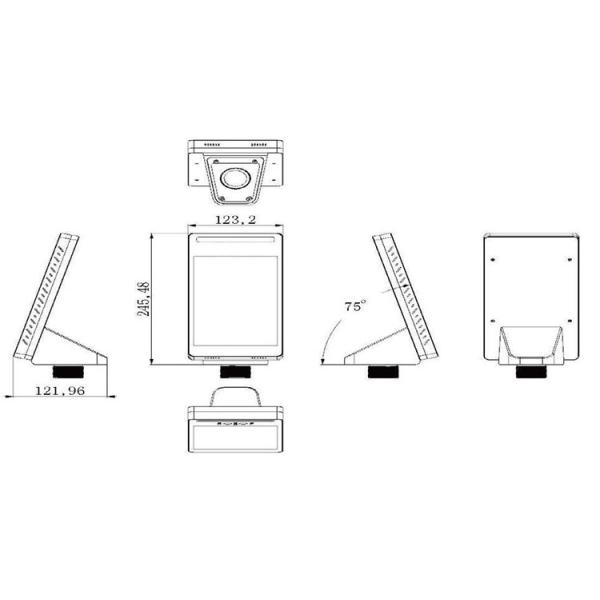

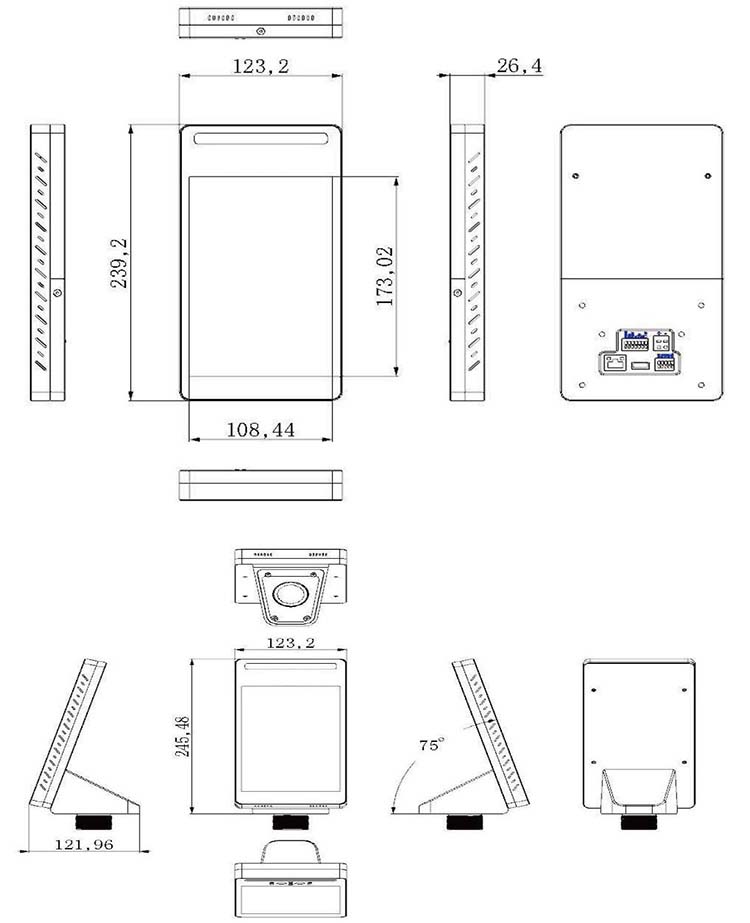

Equipment size 239.2mm*123.2mm*26.4mm
Weight ≈1050g
