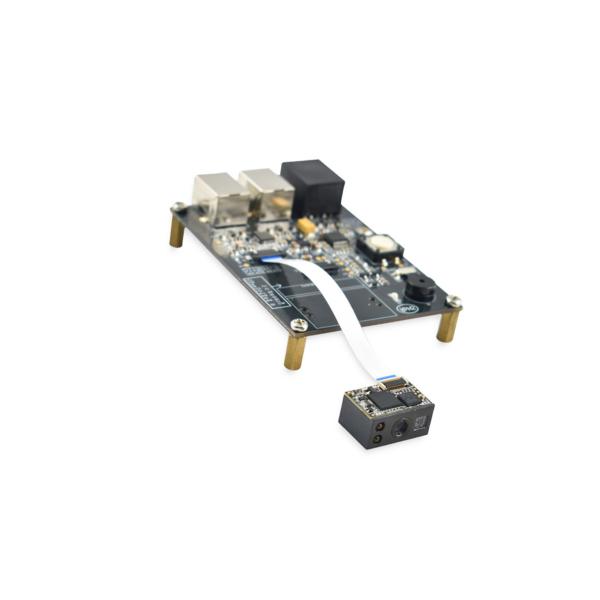

Small 2D Barcode Reader Module 752×480 CMOS QR Code DM PDF417 TTL232 Cable
Small 2D Barcode Reader Module 752×480 CMOS QR Code DM PDF417 TTL232 Cable
Small 2D Barcode Reader Module 752×480 CMOS QR Code DM PDF417 TTL232 Cable
Small 2D Barcode Reader Module 752×480 CMOS QR Code DM PDF417 TTL232 Cable
Small 2D Barcode Reader Module 752×480 CMOS QR Code DM PDF417 TTL232 Cable
Small 2D Barcode Reader Module 752×480 CMOS QR Code DM PDF417 TTL232 Cable
Small 2D Barcode Reader Module 752×480 CMOS QR Code DM PDF417 TTL232 Cable
Small 2D Barcode Reader Module 752×480 CMOS QR Code DM PDF417 TTL232 Cable
Small 2D Barcode Reader Module 752×480 CMOS QR Code DM PDF417 TTL232 Cable
Small 2D Barcode Reader Module 752×480 CMOS QR Code DM PDF417 TTL232 Cable
Specifications
Brand Name :
RAKINDA
Model Number :
LV3396
Certification :
CE, RoHS
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
Western Union, T/T, paypal
Supply Ability :
1000 PCS/ week
Delivery Time :
within 5 working days after receiving the balance
Packaging Details :
barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam.
Item name :
2D Barcode Scanner
Reading Precision :
≥ 3mil
Cable :
TTL232
Image Sensor :
752×480 CMOS
Color :
Black
Operating Voltage :
3.3±10% VDC
Weight :
5g
Size :
21.3(W)×15.5(D)×11.6(H)mm
Description

Hot Sale Small CMOS QR Code DM PDF417 2D Barcode Reader Module

LV3396 bar code reading engine, the application of the world's leading chip smart new continent image recognition technology to create a new era of image-based two-dimensional bar code reading engine. Rakinda's two-dimensional decoder chip, the advanced image recognition algorithms and advanced chip design and manufacturing technology perfect fusion, which greatly simplifies the design of 2D bar code reader product design difficulty, establish two-dimensional video products, high performance, high reliability, low power Consumption of excellent benchmarking

Technical Specifications of LV3396 2D Barcode Scanner Module

Small 2D Barcode Reader Module 752×480 CMOS QR Code DM PDF417 TTL232 Cable

Performance Image Sensor 752×480 CMOS
Light Source
Illumination: 625±10nm red LED
Aiming: 650nm laser diode
Symbologies 2D PDF417, Data Matrix (ECC200, ECC000, 050, 080, 100, 140), QR Code, Chinese Sensible Code
1D Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
Resolution ≥5mil
Typical Depth of Field EAN-13 60mm-290mm (13mil)
PDF417 55mm-135mm (6.67mil)
Code39 55mm-165mm (5mil)
Data Matrix 55mm-130mm (10mil)
QR Code 45mm-175mm (15mil)
Symbol Contrast ≥25% reflectance difference
Scan Angle** Roll: 360°, Pitch: ±55°, Skew:±55°
Field of View Horizontal 36°, Vertical 23°
Mechanical/
Electrical
 Interface TTL-232, USB (optional)
Rated Power Consumption 0.66W
Operating Voltage 3.3±10% VDC
Current @3.3 VDC Operating 200mA
Standby 4mA (USB not supported); 7mA (USB supported)
Dimensions 21.3(W)×15.5(D)×11.6(H)mm
Weight 6.5g
Environmental Operating Temperature -20℃~+55℃ (-4°F~131°F)
Storage Temperature -40℃~+70℃ (-40°F~158°F)
Humidity 5%~95% (non-condensing)
Ambient Light 0~100000lux (natural light)
Certifications FCC Part5 Class B, CE

LV3396 2D Barcode Scanner Module Details:

Small 2D Barcode Reader Module 752×480 CMOS QR Code DM PDF417 TTL232 Cable

About Rakinda
RAKINDA is a company committed to the development up to bar code technology at the core of the automatic identification system integration organizations, enjoyed several years of industry experience and excellent reputation, in Shenzhen and Hong Kong branches, and has a very skillful, experienced, innovative R & D and after-sales technical support service team.
Rakinda Group, the manufacturer of barcode scanner module, was established in 2000. We have offices in Guangzhou, Shenzhen, Hongkong, Xiamen, Suzhou and Beijing. And we have been supplying the barcode scanner module for Walmart, Carrefour and Foxconn etc.
