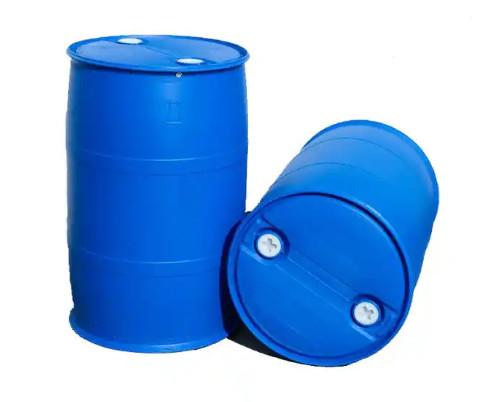

HDPE Plastic Barrel 200 Litre Columnar Closed Top Drum Blow Molding
HDPE Plastic Barrel 200 Litre Columnar Closed Top Drum Blow Molding
Specifications
Place of Origin :
china
Payment Terms :
T/T
Material :
HDPE
Type :
Barrel
Product Name :
Plastic Drum
Capacity :
200L
Maximum diameter :
580mm
Lid diameter :
480mm
Total height :
920mm
Shape :
Columnar
Description
Plastic Barrel 200 Litre HDPE Closed Top Blue Blow Molding

Specifications:

Model number
200L-GP
Material
100% HDPE
Height
920±10mm
Outside diameter
580±10mm
Weight
9.5kg, or as your need
Usage temperature
-20-50 ° C
Color
Blue(two layer: white inner wall + blue outer wall)
Sealing
Outer plastic cap + inner silicone ring used for sealing
Thickness of wall
3-5mm
Injection mouth
2 pcs
Diameter of injection mouth
55±2mm
Usage
Class II, Class III dangerous goods,the maximum density of liquid contained:1.8g/m³
Drop test
-18 ° C for 24 hours, 1.8 m drop, no crack, no leakage
Airtight test
20 Kpa Air pressure, kept for 5 minutes, no cracking, no leakage
Hydraulic test
100Kpa air pressure, kept for 30 minutes, no cracking, no leakage
Stacking test
stacking height 3 meters, 40 °C for 28 days, no obvious deformation and damage
MOQ
10 pcs
Top
closed top, both on the top and bottom there is a ring.
Package
plastic bag or as your need
Sample
available

Description:

1. High strength and high corrosionproof, provides long service life and convenient to fill and clean. It provides wide applicability and can be widely applied for packaging in industries such as chemical engineering, petroleum, medicine and food etc.
2. Seal liquid test:Put the sealed barrel with liquid upside down or tap,the seal is at the lowest position,and no leakage within 24 hours. 3. The standard specifies blow-moulding technology requirements of the barrel, test methods and the rules and symbols, packaging, transporting and storage. This standard applies to polyethylene as the main raw material, barrels production through automatic blow molding machine,and this type of blow molding barrel is mainly used for solids or chemical products.

Feature:

It can replace stainless steel, titanium and other metal products containers in a large range. It is an ideal storage and transportation equipment for chemical liquids today, and it is cheap and good in quality. The products are applicable to chemical, dye, pesticide, metallurgy, rare earth, machinery, electronics, textile, food and other industries.
