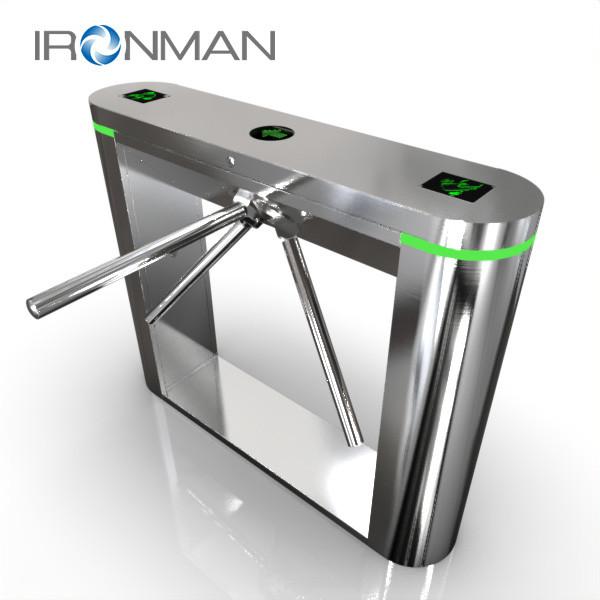

304 Stainless Steel Turnstiles Access Control With Imported LED Indicator
304 Stainless Steel Turnstiles Access Control With Imported LED Indicator
Specifications
Brand Name :
Ironman
Model Number :
TDH-S103
Certification :
ISO9001
Place of Origin :
china
MOQ :
1pc
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
2000 pc per/month
Delivery Time :
8-15 work days
Packaging Details :
carton packing
Name :
Tripod Turnstile
Application :
hotels / residential quarters
Power supply voltage :
AC220V±10V
Brake Rod Material :
Stainless steel SUS304
Channel Width :
550~600MM
Function :
Anti-interference , Anti-collision function
Description
Circular Three Tripod Turnstile Gate <TDH-S103> Product Specifications
Product Icon Document Number:
Edition: A/0
Revision Time:
Revised By:
Product Parameters Dimensions: Length 1200*Width 260*Height 980mm Box Material: Box: Stainless Steel SUS304 Foot 1.0mm
Upper Cover: Stainless Steel SUS304 Foot 1.2mm
Brake Rod
Material:		 Stainless steel SUS304 Channel Width: 550~600MM
Place: Suitable for indoor / outdoor; Pedestrian passage places; Such as: Factory / residential area, etc;
Technical Parameter ◆Box material: Austenitic stainless steel SUS304
◆Internal structure: frame structure/standard stainless steel shell;
◆Power supply voltage: AC220V±10V
◆Service life: more than 5 million times of continuous opening and closing
◆Working environment temperature: -35℃～75℃
◆Relative humidity: 0～90% (no condensation)
◆Communication interface: switch electrical signal, expandable RS232 serial port
◆The working speed of the turnstile: ≤30 people/min (the memory mode can be turned on)
◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)
Function Parameters Basic Function ●Traffic indication function: LED indication board is installed in the conspicuous part of the housing frame to remind pedestrians the passage status and passage direction of the turnstile.
●Anti-illegal break-in function: When the swipe card is invalid, no card swipe or passage is prohibited, forcing the push rod will be regarded as illegal break-in, and the system will automatically alarm and lock the brake rod (so that it cannot be pushed).
●Access control: The external port can connect a variety of biometric devices
●Automatic drop bar function: when the power is cut off, the brake bar that acts as a barrier will drop automatically, which is convenient for crowd evacuation and meets fire protection requirements.
●Anti-collision function: When the brake lever is locked, it cannot be pushed by external force, and it can withstand the collision force within a safe range.
●Anti-interference: It can limit the abnormality of the gate caused by external factors such as electromagnetic
Expanding Function ▲Intelligent linkage alarm: including illegal intrusion, reverse traffic and other alarms, it can be linked with other alarm monitoring equipment, and can be in the form of sound and light. If a flash alarm is required, a luminous alarm must be added to the housing frame.
▲Voice broadcast, expandable voice module, and volume adjustment
▲Open/close delay, set the delay opening time after the gate receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds
▲Fire linkage
△Normally open mode: the gate remains open
△Normally closed mode: the gate remains closed
▲Passage Mode
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.
