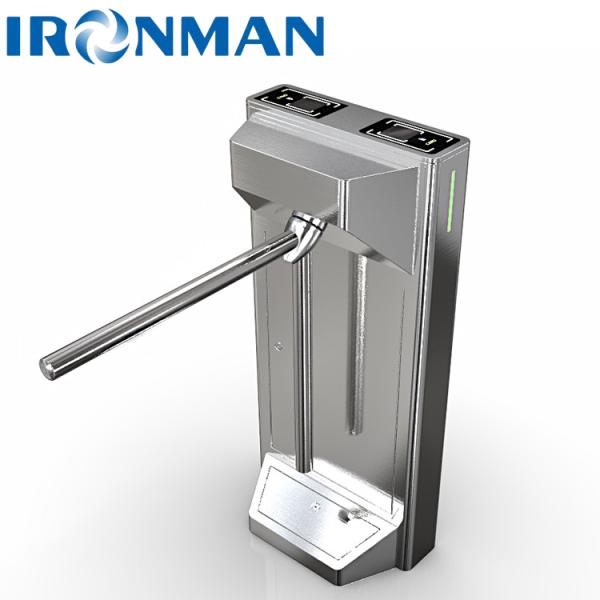

SUS304 Housing Material Two-Arm Turnstile Pedestrian Security Gate System with Alarm Function
SUS304 Housing Material Two-Arm Turnstile Pedestrian Security Gate System with Alarm Function
Specifications
Brand Name :
Ironman
Model Number :
IM.E.121
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
2000 pc per/month
Delivery Time :
8-15 work days
Packaging Details :
carton packing
Name :
two arms tursntile
Power Voltage :
AC110~220V±10V
Communication interface :
RS232
Housing Material :
SUS304
Service life :
5,000,000 times
Application: :
Office / School / Park / Supermarket / Subway
Basic Function :
Alarm Function
Features :
Fast induction pass
Description

Two-Arm Turnstile Pedestrian Security Gate Turnstile System

SUS304 Housing Material Two-Arm Turnstile Pedestrian Security Gate System with Alarm Function

Two Arm Turnstile <IM.E.121> Product Specifications
Product Parameters Dimensions: Length 450*Width 120*Height 1000mm Box Material: Box: 1.5mm SUS304 Stainless Steel
Arm Material: SUS304 stainless steel Channel Width: 550~600 mm
Technical Parameter ◆Material of the enclosure: Brushed stainless steel SUS304;
◆Service life: Over 15 million times of continuous operation;
◆Input voltage: AC220V±10V, 50Hz~60Hz;
◆Communication interface: RS232 serial port;
◆Driving motor: DC brushless motor (24~36VDC);
◆Operating environment temperature: -35°C~75°C;
◆Relative humidity: 0~90% (no condensation);
◆Passage speed: 30~50 people per minute (can open in memory mode);
◆Passage time: Card access passage time: 10S (if no one passes within 10S, the gate will automatically close. The time can be adjusted as needed).
Function Parameter Basic Function ●Passage Indication Function: LED indicator boards are installed prominently on the outer frame of the gate to indicate the passage status and direction to pedestrians.
●Intelligent linkage alarm: including sound and light alarms such as illegal intrusion and reverse traffic, which can be linked with other alarm monitoring equipment
●Anti-interference: It can limit the abnormality of the gate caused by external factors such as electromagnetic
●Passage mode setting: One-way pass, two-way pass, free pass, etc. can be set through the buttons on the main control board
●Anti-trailing: prevent the non-permissible situation of too many people at one time.
●Anti-pinch function: When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal
●Auto reset: After the gate is opened, if there is no passage within the specified time, the system will automatically cancel the user's access authority; the default is 10 seconds, and the passage time can be set by the switch
●Access control: The external port can connect a variety of biometric devices
●Power off and switch off: switch off after power off, and can set the switch opening direction
●Fault detection: The control board can support fault type detection, assist in analyzing the cause of the fault, and handle abnormal faults.
●Traffic indication: There is a traffic status indicator; and an alarm function for exceeding the stay time in the channel can be set
Expanding Function ▲Passing mode
△Normal: Normal passing mode
△ Passing: automatic car/electric car/motorcycle passing mode
▲Open/close delay, set the delay opening time after the gate receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds
▲ Swipe the card in the channel
△ Disabled by default: card swiping in the channel (induction infrared area) is invalid
△Allow: Card verification is allowed in the channel.
▲Whether the trailing and reversing are blocked by closing the door
△Do not close the gate: the reverse/trailing (A swipe card, B pass) will not close the gate
△Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing
△Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing
▲Fire linkage
△Normally open mode: the gate remains open;
△ Normally closed mode: the gate remains closed
▲System language function
△Chinese: The system can set the Chinese interface
△English: The system can set the English interface
▲Passage Mode
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.
△Passing is prohibited,Bidirectional card swiping is invalid, and the speed gate turnstile enters the locked state

Product Application

A two-arm turnstile is a type of access control system commonly used in various settings, such as stadiums, office buildings, and transportation hubs. It consists of two rotating arms or barriers that allow or restrict the passage of individuals.

The main purpose of a two-arm turnstile is to regulate the flow of people, ensuring only authorized individuals can enter a specific area while preventing unauthorized access. It helps enhance security and control pedestrian traffic in a controlled manner.

Two-arm turnstiles are typically operated electronically and can be integrated with various access control systems, such as RFID card readers or biometric scanners. When a person presents a valid credential, such as a card or fingerprint, the turnstile unlocks and allows passage. After the person passes through, the arms rotate back to their original position, preventing others from entering without proper authorization.

These turnstiles are designed to be robust and durable, capable of withstanding high traffic volumes and providing reliable access control. They are often equipped with sensors to detect tailgating or forced entry attempts, ensuring the integrity of the access control system.

In summary, a two-arm turnstile is an effective access control solution that provides secure and controlled entry to restricted areas, helping organizations maintain security and manage pedestrian flow efficiently.
