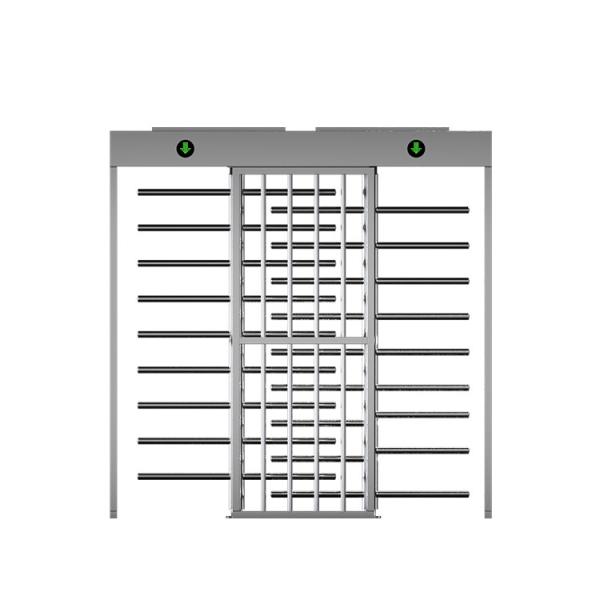

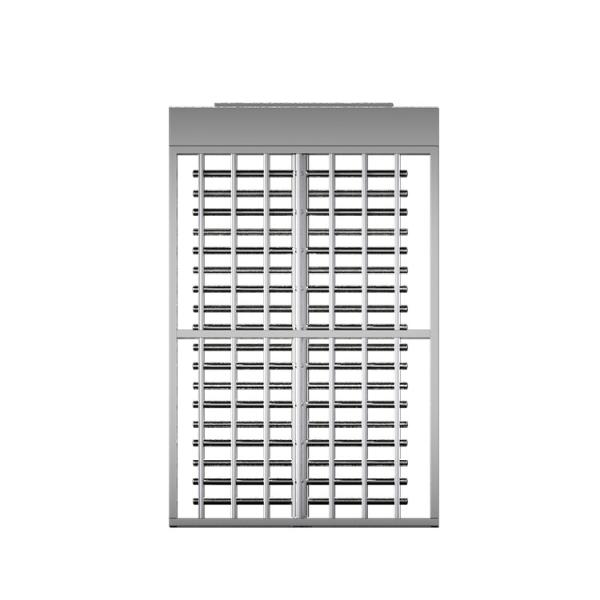

CE Approved Single Passage Full Height Turnstiles Entrance Security System
CE Approved Single Passage Full Height Turnstiles Entrance Security System
CE Approved Single Passage Full Height Turnstiles Entrance Security System
CE Approved Single Passage Full Height Turnstiles Entrance Security System
Specifications
Brand Name :
Ironman
Model Number :
TDH-Q802S
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
2000 pc per/month
Delivery Time :
8-15 work days
Packaging Details :
carton packing
Name :
Construction Turnstiles
Overall dimension :
2300 * 1500 * 2300 mm
Length of gate pole :
500mm
Application :
exhibition, swimming hall, residence area
Power supply voltage :
AC220V ± 10%, 50Hz
Description

304 Stainless Steel Turnstile Full Height Brushed Surface Treatment With Double Lane

Product technical parameters

1. Overall dimension: 2300 * 1500 * 2300 mm;

2. Material: 304 stainless steel, designed according to the international specifications for moisture-proof, dust-proof and waterproof;

3. Power supply voltage: AC220V ± 10%, 50Hz;

4. Working environment temperature: - 30 ℃~+70 ℃;

Relative humidity: 95% relative humidity, non condensing;

5. Input interface: 12V level signal or 12V pulse signal with pulse width ＞ 100ms;

6. Driving current: ＞ 200mA;

7. Communication interface: RS485 electrical standard;

8. Length of gate pole: 500mm;

9. Channel width: 550-600mm;

10. Traffic speed: ≤ 30 persons/min;

11. Structure: frame structure/standard stainless steel shell;

12. Swing rod steering: support one-way and two-way (optional);

13. Working environment: indoor and outdoor.

Product Description

The equipment runs smoothly, with low noise, high efficiency, space saving, and can effectively reduce security personnel. It is suitable for high-end office buildings, airports, subway stations and other places with high security requirements.

Application: subway station, hoverport, tourism, sports, exhibition, swimming hall, residence area, enterprise entrance and exit attendance, special access control etc.
