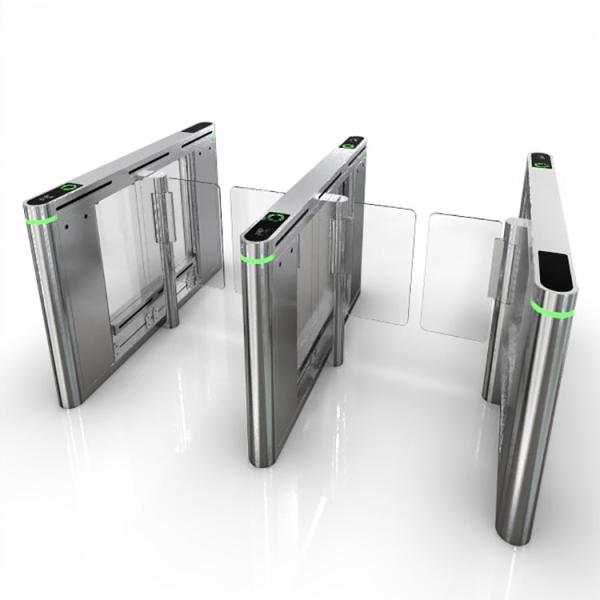

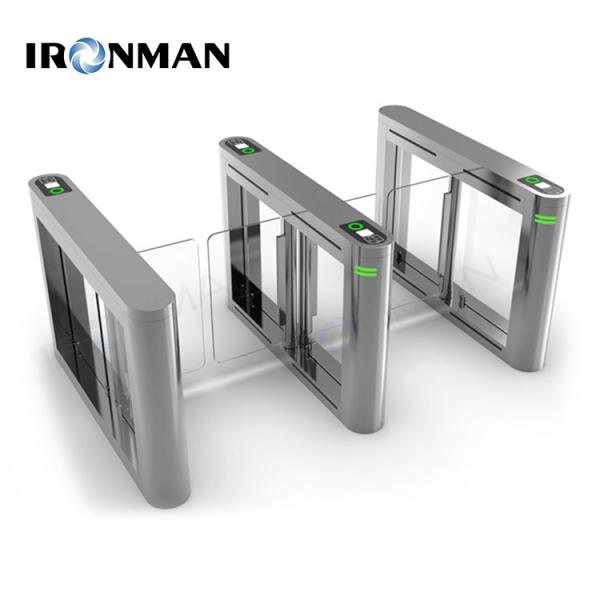

Swing Arm Fastlane Speed Gates Ensures Smooth Entry In Busy Pedestrian Areas
Swing Arm Fastlane Speed Gates Ensures Smooth Entry In Busy Pedestrian Areas
Swing Arm Fastlane Speed Gates Ensures Smooth Entry In Busy Pedestrian Areas
Swing Arm Fastlane Speed Gates Ensures Smooth Entry In Busy Pedestrian Areas
Swing Arm Fastlane Speed Gates Ensures Smooth Entry In Busy Pedestrian Areas
Swing Arm Fastlane Speed Gates Ensures Smooth Entry In Busy Pedestrian Areas
Swing Arm Fastlane Speed Gates Ensures Smooth Entry In Busy Pedestrian Areas
Swing Arm Fastlane Speed Gates Ensures Smooth Entry In Busy Pedestrian Areas
Specifications
Brand Name :
Ironman
Model Number :
IM.ST601
Certification :
CE; FCC; ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
2000 pc per/month
Delivery Time :
8-15 work days
Packaging Details :
carton packing
Name :
Speed Gate Turnstile
Material :
SUS304 Stainless Steel
Swing Arm Material :
AC110~220V±10V
Control Input :
Dry contact/relay signal
Working Environment :
indoor/outdoor ; Working Temperature：－30℃～+70℃；
Alarm function :
with sound and light alarm function
Housing Material :
AISI SUS304
Application :
Office Buildings / Hotels
Description

IM.ST601 Speed Tursntile


Product Specifications of (IM.ST601) Speed Gate
Product Parameters Dimensions 1600*100*980MM Material: Housing: Corrosion Resistant Electrolytic Plate 2.0mm
Top Cover: Cast aluminum alloy 10mm
Column:Cast aluminum alloy 3mm
Baffle Wing Material: Transparent Acrylic；T=10MM Surface: Column:Corrosion resistant electrolytic plate black matte baking paint
Cover and column:
Aluminum alloy oxidation
Technical Parameters ◆Housing Material: Aluminum alloy mold opening: top cover 10mm ;column 3mm thick; Baking paint frame thickness: 2mm
◆Input voltage: AC110~220V±10% ,50Hz
◆Opening Method:RS485/RS232/IO
◆EMC Standard:Antistatic level 3,Air discharge 15KV
◆Lightning Protection: 2KV
◆Motor: servo motor, High precision clutch movement
◆Working Temperature:-20℃～75℃
◆Relative Humidity:0～90%(non-condensing)
◆Opening Speed:＜0.5S(adjustable)
◆Passing Time:Swipe the traffic card time:10S(If no one passes within 10S: the gate closes automatically, and the time can be adjusted as needed)
Function parameter Basic Function ●Sound alarm:it has the function of breaking in / trailing/ stop/ reverse pass sound alarm function;
●Ilight alarm function: light alarm with red, blue, and green color;
●Anti-interference:It can limit the abnormality of the gate caused electromagnetic and other external factors;
●Traffic mode setting:One-way traffic, two-way traffic, free traffic, etc. can be set on the main control panel;
●Anti tailing: prevent the unauthorized situation of too many people passing at one time;
●Anti pinch function:When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal;
●Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set on the motherboard;
●Access control: The ports can connect to a variety of biometric devices;
●Power off and opening: the gate will opens after power off, and the opening direction can be set;
●Fault detection:Control board can support fault type detection, assist in analyzing the causes of faults and handling faults and abnormalities;
●Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel.


Features:

1. The turnstile provides control access smoothly and effectively by basic operation,and also prevent illegal in and out.The machine is well in design,rustproof,durable and can resist external destroy.

2. Turnstile offer a compact, cost-effective, fast operating, easy to use, reliable entrance solution for internal or external use in areas where there is a large and constant flow of people.

The advantages of using a turnstile compared to a conventional gate include the better utilization of manpower, increased reliability and improved security.

Application:

high-end factory parks

higher schools

hospitals

enterprises and institutions

government halls

sports venues

convention and exhibition centers;
