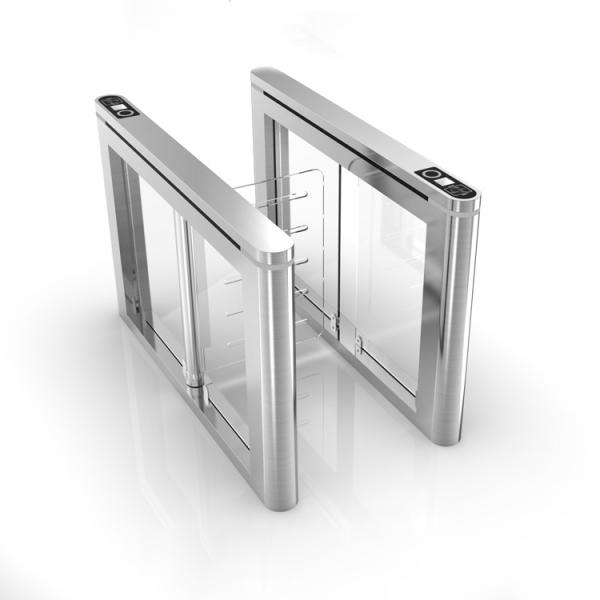

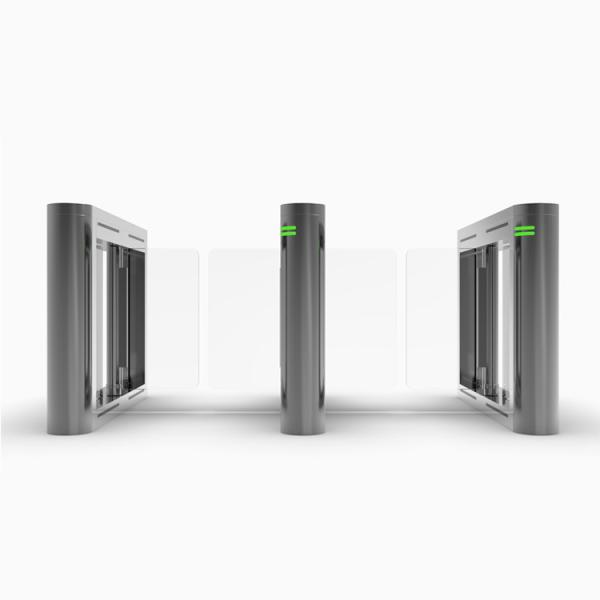

Smart Speed Gate Turnstile Access Control with Infrared Detection Sensor
Smart Speed Gate Turnstile Access Control with Infrared Detection Sensor
Smart Speed Gate Turnstile Access Control with Infrared Detection Sensor
Smart Speed Gate Turnstile Access Control with Infrared Detection Sensor
Smart Speed Gate Turnstile Access Control with Infrared Detection Sensor
Smart Speed Gate Turnstile Access Control with Infrared Detection Sensor
Smart Speed Gate Turnstile Access Control with Infrared Detection Sensor
Smart Speed Gate Turnstile Access Control with Infrared Detection Sensor
Smart Speed Gate Turnstile Access Control with Infrared Detection Sensor
Smart Speed Gate Turnstile Access Control with Infrared Detection Sensor
Smart Speed Gate Turnstile Access Control with Infrared Detection Sensor
Smart Speed Gate Turnstile Access Control with Infrared Detection Sensor
Specifications
Brand Name :
Ironman
Model Number :
IM.ST608
Certification :
CE; FCC; ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
2000 pc per/month
Delivery Time :
8-15 work days
Packaging Details :
carton packing
Name :
Speed Gate Turnstile
Material :
SUS304 Stainless Steel
Control Input :
Dry contact/relay signal
Working Environment :
indoor/outdoor ; Working Temperature：－30℃～+70℃；
Alarm function :
with sound and light alarm function
Application :
Office Buildings / Hotels
Dimensions :
1500*200*1000mm
Drive Motor :
servo motor
Infrare Detection Sensor :
8 pairs
High Precision Clutch Movement,MCBF :
12 million times
Place of Origin Guangdong, China Brand Name Ironman Model Number IM.ST608 Dimensions 1500*200*1000mm :
≤535mm
Channel Width :
≤1120mm
Traffic Speed :
≤ 45 people/min
Description

Automated Speed Gates for Crowd Control: Fast & Reliable Entry Solutions

The Speed Gate, also known as a rapid passage system, is a state-of-the-art security solution designed for efficient and secure pedestrian flow management. This innovative gate combines the latest technology with user-friendly design, ensuring smooth and rapid access for authorized personnel while maintaining a high level of security.
The Speed Gate typically consists of two moving barriers, which open and close automatically to allow authorized individuals to pass through. These barriers are equipped with sensors that detect the approach of pedestrians and adjust their speed accordingly, ensuring a comfortable and safe passage. The system is integrated with advanced access control technology, such as RFID readers or biometric scanners, that authenticate users' credentials and grant access accordingly.
Smart Speed Gate Turnstile Access Control with Infrared Detection Sensor

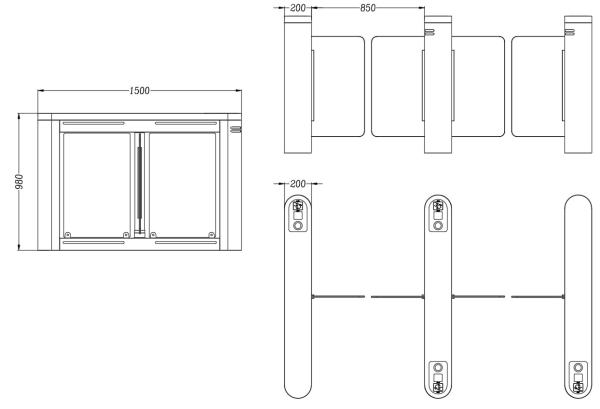

Swing Barrier Gate (IM.ST608) Product Specifications
Product Parameters
Dimensions:
1500* 200*1000mm
Box Material:
1.5mm thickness SPCC
Swing Arm Material:
10MM Acrylic (Stainless steel elbow is optional)
Channel Width:
≤1120mm
Function Parameters
◆Turnstile Body: 1.5mm thickness SPCC
◆Work Voltage: AC110~220V±10V
◆Driving Motor: servo motor
◆MCBF: Continuous opening and closing for more than 5 million times
◆Infrared Sensors: DFIR 8 pecs;
◆Working Environment Temperature: -35℃～75℃
◆Relative Humidity: 0～90% (No condensation)
◆Communication Interface: RS232/RS485 serial port
◆Communication Protocol: MODBUS protocol
◆Working Speed of the Gate: ≤45 persons/min (The memory mode can be turned on)
◆Passing Time: passing time by swiping card: 10S (If no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)
Basic Functions
●Alarm Function: Sound and light alarm function.
●Anti-interference: To prevent the gate abnormal caused by electromagnetic and other external causes.
●Passage Mode Setting: Unidirectional passage, bidirectional passage and free passage can be set through the main control board keys.
●Anti-tailgating: To prevent the unpermitted situation of passing too many people at once.
● Anti-clamp Function: When the brake is in the process of closing, the brake will stop closing after detecting the anti-clamp signal.
●Self-reset. Pass right will be canceled if people do not go through within a set time, the default time is 10s, and the passage time can be set by switch.
●Access Control: The external port can be connected to a variety of biometric identification devices.
●The gate opens after power failure.
●Fault Detection: The control board can support fault type detection, fault cause analysis, and fault troubleshooting.
●Passing Indicator: Traffic status indicator light; the alarm function of overstay time in the channel can be set.
Extensible Functions:
▲Passing Mode
△Normal: Normal passing mode.
△Passing: automatic car/electric car/motorcycle passing mode.
▲Switch on/Switch off Delay: set the delay of switch off after the switch machine receives the switch off signal/set the delay of switch off after the pedestrian passes. The default value is 0 seconds.
▲Swipe Card in the Channel
△Default Disable: Card swiping in the channel (in the inductive infrared region) is invalid
△Allow: Swipe card verification is allowed in the channel.
▲ Whether the Trailing and Reversing are Blocked by Closing the Door
△Not close: Reverse passage /tailgating (A swips the card, B passes) will not close the gate.
△Close the gate and then open the gate: Reverse/trailing passage will close the gate first, and open the gate again after closing.
△Not open after closing: reverse/trailing passage will close the gate, and will not open again after closing the gate.
▲Fire Linkage
△Normally open mode: the gate maintains the open state;
△ Normally closed mode: the gate maintains the switch state.
▲Passage Mode
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card
verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.
