Specifications
Brand Name :
IRONMAN
Model Number :
IM.LB.ST01
Certification :
ISO9001;CE;FCC
Place of Origin :
China
MOQ :
1unit
Price :
negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
800-1000 pcs/month
Delivery Time :
7-10 working days after payment
Packaging Details :
carton/wooden case
Dimensions: :
1500*120*980mm
Channel Width: :
≤1000mm
Infrare Detection Sensor :
8 pairs
Driving Motor: :
Servo Motor
Material :
Precision aluminium alloy moulding (top cover 10mm thick, side body 3mm thick) + baking paint SPCC
Traffic Speed :
≤ 45 people/min
Description

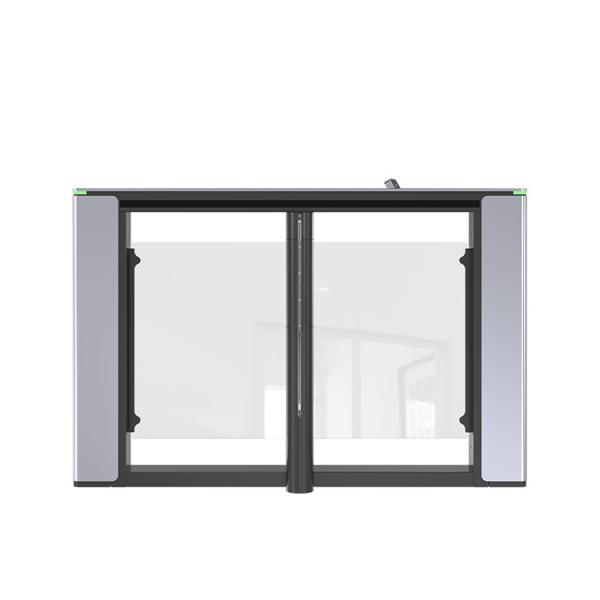

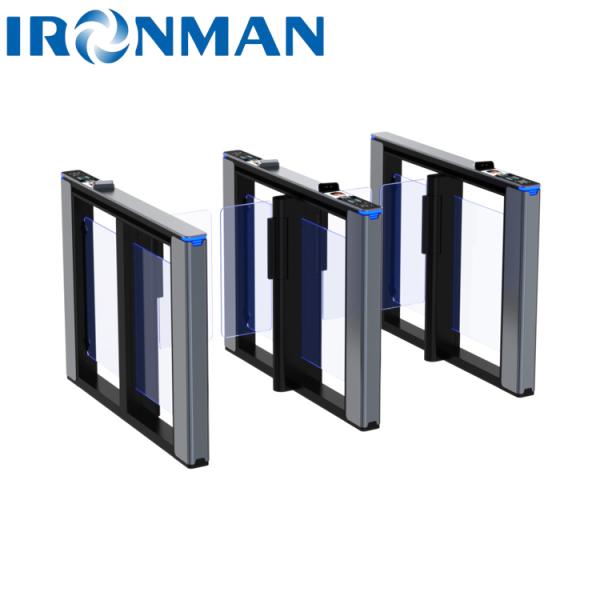

Intelligent Full Automatic QR Code Reader Turnstile Swing Barrier Gate Speed Turnstile Gate

  • The Speedgate is also equipped with an intelligent memory function that automatically handles multiple card swipes to ensure smooth passage. It also has anti-tailgating, anti-collision and auto-locking functions and supports remote control and management.

Product Description

1. IRONMAN Intelligent series revolving door is well designed and excellent performance, made of innovative technology and high quality materials, with unique features, can be widely used in security, commercial and industrial fields, to meet the various needs of customers.

2. Electronic control using DC motor drive, stable and reliable, low failure rate. Ultra-high brightness traffic indication function: the direction indication adopts ultra-high brightness LED light design, the indication is more eye-catching;

3. System integration: compatible with face, thermal, RFID/fingerprint/QR or barcode/ESD access control system, easy to manage.

4. Acceptable: Custom OEM/ODM service, such as size, shape, etc.

5.Made of Aluminum alloy oxidatio.

Function Parameters:

Thickness: top 10mm + body 3mm
Work Voltage: AC110~220V±10V
Working Environment Temperature: -35℃~75℃
Relative Humidity: 0~90% (No condensation)
Communication Interface: RS232/RS485 serial port
Communication Protocol: MODBUS protocol
Working Speed of the Gate: ≤45 persons/min
Swing Arm Material: 10MM Acrylic/Reinforced glass
Infrared Sensors: 8 pairs; 10 pairs can be selected

Basic Functions:

●Alarm Function: Sound and light alarm function.

●Anti-interference: To prevent the gate abnormal caused by electromagnetic and other external causes.
●Passage Mode Setting: Unidirectional passage, bidirectional passage and free passage can be set through the main control board keys.
●Anti-tailgating: To prevent the unpermitted situation of passing too many people at once.
● Anti-clamp Function: When the brake is in the process of closing, the brake will stop closing after detecting the anti-clamp signal.
●Self-reset. Pass right will be canceled if people do not go through within a set time, the default time is 10s, and the passage time can be set by switch.
●Access Control: The external port can be connected to a variety of biometric identification devices.
●The gate opens after power failure.
●Fault Detection: The control board can support fault type detection, fault cause analysis, and fault troubleshooting.
●Passing Indicator: Traffic status indicator light; the alarm function of overstay time in the channel can be set.

Our Products:

  • Brushless servo motors are usually used, which have higher efficiency and stability, and the motor transmission efficiency is high, and the operation speed is curved deceleration. In addition, the design of the movement of the speed gate needs to protrude from the outside of the box, which is used by the clutch and encoder to ensure the precision and efficiency of the operation.

Anti-pinch Design Automatic QR Code Reader Speed Barrier Gate For Universal Speed Gate

In addition to fast passage, it also features a variety of functional characteristics such as high security, aesthetics and atmosphere, and automatic identification. It is equipped with a variety of safety technologies, such as infrared sensing and anti-pinch design, to effectively prevent illegal intrusion and accidental injuries. At the same time, the speed gate also has a memory function and alarm function, making it more efficient and reliable in dealing with multiple people and emergencies.

Anti-pinch Design Automatic QR Code Reader Speed Barrier Gate For Universal Speed Gate

Packing & Delivery:

Anti-pinch Design Automatic QR Code Reader Speed Barrier Gate For Universal Speed Gate

Measurement Total G.W.
1500*280*1040MM 80.00KG

Anti-pinch Design Automatic QR Code Reader Speed Barrier Gate For Universal Speed Gate

FAQ:

Q: How will the products be packaged for export?
A: Our products are packaged in wooden crates with pearl cotton and cling film for export transportation.
Q:What kind of shipping method do you use for the products?
A: Our company has opened three kinds of transportation channels by sea, land and air, the products can be given to you in the best way.
Q: Does the product arrive in my country with or without taxes?
A: It depends on the country and the shipping way you choose. Most Asian countries, most European countries, the United States, and Canada have tax-included shipping channels if needed.
Q:How to ensure after-sales service?
A: You can find our sales staff at any time. If you encounter any technical problems,welcome to contact with us to have a face time to solve it.
Q: If we could be your agent or distributor?
A: Please talk with our sales for this, our company are warmly welcome more partner to join us, but you have to double check for some area we have agents already.
