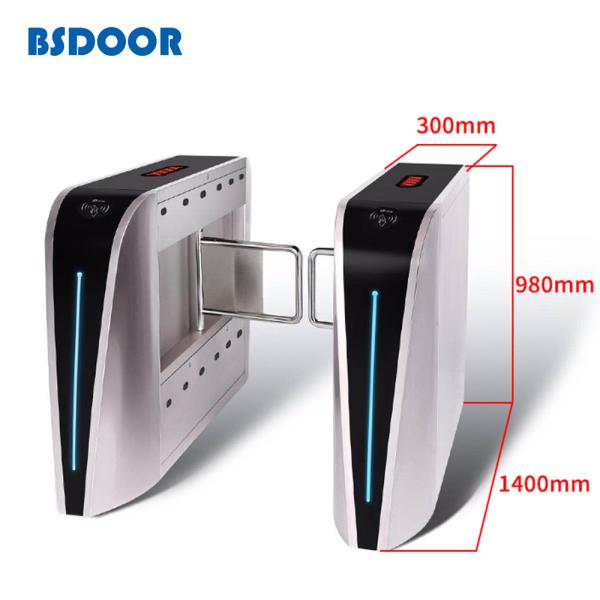

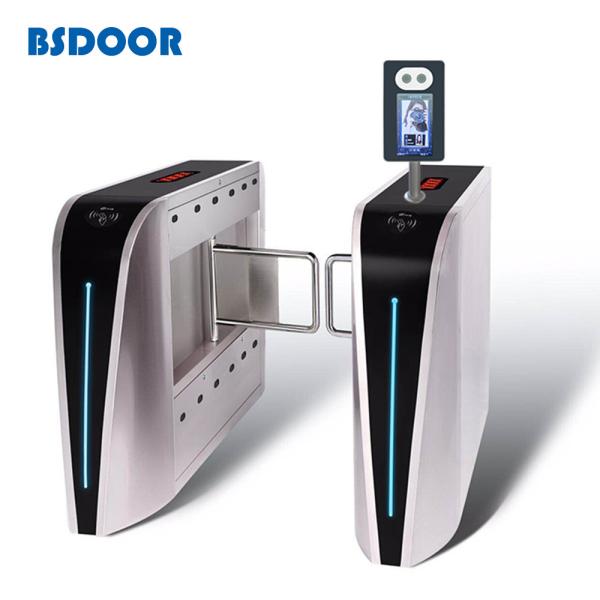

Supermarket Security Optical Swing Turnstile Entrance Access Control

Optical Security Swing Stainless Steel Security Barrier Supermarket Entrance Access Control Turnstile Gate

Product Description

Optical turnstiles are very technologically advanced and because of this, they have many variations. Optical turnstiles can come with a physical barrier or they can be barrier-free. Barrier-free optical turnstiles rely solely on infrared beams to detect and deter passage, while barrier optical turnstiles utilize the internal infrared technology coupled with a physical barrier to provide added security against unwanted entry. There is a wide array of barrier types used for barrier optical turnstiles, including drop arm, swing arm, swing glass, flap barrier, and retractable glass. Because of their design, optical turnstile cabinets can be installed as close to or as far apart from each other as needed. This provides flexibility and allows lanes to be handicap accessbile.

Features:
Reliable movement design, the switch gate is soft and silent, and there is no mechanical friction. Smooth operation and long service life; wing gate:
1. Super bright flashing direction indication.

2. Reliable movement design, the switch gate is soft and silent, and there is no mechanical friction. Smooth operation and long service life.

3. Support up to 32 sets of infrared radiation devices to prevent pedestrians from entering the passage illegally and ensuring the safe passage of pedestrians.

4. The wing gate has reliable safety protection measures and a four-fold anti-pinch design. A, infrared anti-pinch; B, pass process logic anti-clip; C, resistance return; D, soft door physical anti-pinch.

5. After the wing door is impacted, it can still be automatically reset and protect the movement.

6. Using advanced digital sensor, the motor provides 720 signal monitoring per revolution, which meets the requirements of fast starting and stopping of the motor.

7. The wing door speed can be customized by the debugging software. Fast switching door speeds of up to 0.3 seconds increase the speed of personnel.

8. Unauthorized personnel enter the channel, or pedestrians enter the channel in the opposite direction, effective alarm reminder.

9. Adjustable photoelectric sensitivity to effectively control anti-tailing.

10. It has fault self-test and alarm prompt function, which is convenient for users to maintain and use.

11. In line with fire safety design requirements, the gate can be automatically opened in case of abnormality or emergency.

12. The power-on wing door is automatically reset to the initial position.

13. The gate has a power-on self-test, a delayed start function, and an alarm sound to prevent the electric gate from pinching the pedestrian.

14. The operating angle of the gate can be customized by the debugging software to change the status of the hardware curing of other manufacturers.

15. The external control circuit of the main control board of the gate adopts over-voltage protection measures to make the operation of the gate safer and more stable.

16. The main control board of the gate adopts the USB interface to communicate with the PC debugging program, which is more convenient for on-site commissioning and maintenance.

17. The main control board of the gate provides powerful function extension, such as normally open signal input point and normally closed signal input point.

18. Support RS485 networking to detect the running status of the device in real time and modify the operating parameters.

19. It can be connected to the UPS uninterruptible power supply, and there are various modes of power failure to meet the needs of various places.

20. Provide a variety of optional access modes, ID / IC / CPU / ID / fingerprint, etc. can be selected by the customer according to their needs.

Specification:
