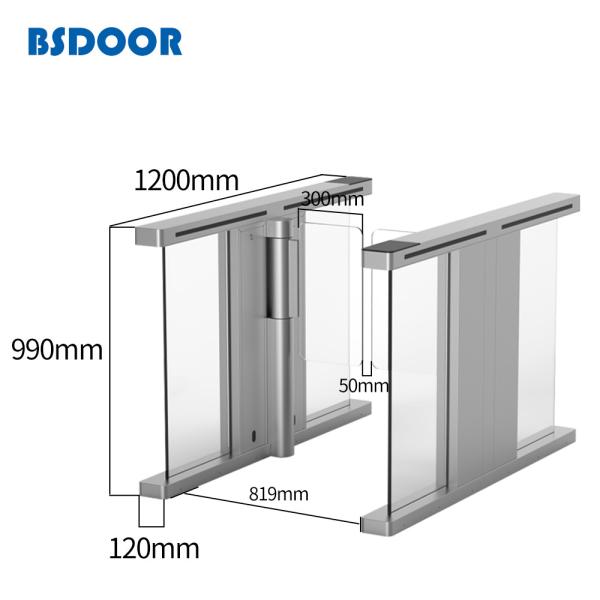

High Security RFID Optical Swing Speed Gate Turnstile Speed Gate System

High Security RFID Optical Pedestrian Access Control Swing Turnstile Barrier Speed Gate System For Hotel

Introduction of Speed Gate:

Sinomatic speed gates can be compatible with IC card , ID card , barcode card , fingerprint reading card recognition device used for staff, provide civilized, orderly access methods; effectively manage the access of staff.

Applications of Speed Gate

Sinomatic flap barrier gate can be widely used in the station, wharf subway, factories, office building, hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.

Features of Speed Gate

1. Fault detection and alarm functions, easy to use and maintenance.

2. The running status can be programmed and controlled with the built-in keyboard on the main board.

3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).

4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

5. Synchronization functions (for dual gate equipment).

6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

7. Gate can be set as normally open or normally closed.

8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).

9. Direction can be set as single-direction or bi-direction.

10. LED direction indicator.

11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

13. Counter function (optional).

14. Support infrared photocell for anti-pinch and reset function.

Functions:

1. Self-test and alarm function,user-friendly maintenance and use ;With automatic reset function,gate opening after a specified period of time. If user does not pass,the system will automatically cancel the user's current access permission; Auto-reset delay, the standard automatic reset is after 10 seconds.

2. Through the main control on the half-built small-press plate,Programmable devices show running status.

3. When valid card is read and passenger passed,arm can be delayed to close from 1-10s which can be set on the control panel.

4. One-directional,bi-directional function.

5. Auto-reposition function:After card is read,if passenger does not pass within regulated time period,swing gate will cancel this passing permission,The regulated time period for passing can be set by management.

6. If passenger passes without card being read or valid card read,Swing barrier will alarm until passenger gets back from the swing barrier and then uses a valid card to be read for passing.

7. Erosion control features,in the absence of gate opening signal receipt,the arm will automatically be locked.

8. Anti-rush function:if there is no open signal arm will hold tightly.

9. Adjustable arm swing synchronized (for the double pendulum case).

10. Adjustable normally open or closed, in order to meet the requirements of the different venues.

11. Connecting with a variety of reading devices which can be linked to the receiving signal relay switch.

12. Swing gate is with RS485 interface for long-distance control concern and the integration of various readers and writers. Managing computer directly through the remote control and management .

13. Auto power-off flap opening,power-on self-closing,Meets fire safety requirements.

14. Double anti-clipping function: photocell anti-clipping and mechanical anti-clipping.When passenger is going through the swing barrier,photocell will detect this situation and will not close. After passenger has passed,arm will close automatically. During its reposition,if arm meets any obstacle,arm will get back automatically or stop working for a while with very slight force. Also it will alarm.

15. Direction display to guide passenger which direction to go.

16. Card-reading with memory or without memory function.

17. Swing barrier can control the population inside in the control of software.

18. Stable running with little noise.
