Electric Drive Mode MVE Series OLI External Electric Vibrating Motors 50HZ/60HZ
Electric Drive Mode MVE Series OLI External Electric Vibrating Motors 50HZ/60HZ
Electric Drive Mode MVE Series OLI External Electric Vibrating Motors 50HZ/60HZ
Electric Drive Mode MVE Series OLI External Electric Vibrating Motors 50HZ/60HZ
Electric Drive Mode MVE Series OLI External Electric Vibrating Motors 50HZ/60HZ
Electric Drive Mode MVE Series OLI External Electric Vibrating Motors 50HZ/60HZ
Electric Drive Mode MVE Series OLI External Electric Vibrating Motors 50HZ/60HZ
Electric Drive Mode MVE Series OLI External Electric Vibrating Motors 50HZ/60HZ
Electric Drive Mode MVE Series OLI External Electric Vibrating Motors 50HZ/60HZ
Electric Drive Mode MVE Series OLI External Electric Vibrating Motors 50HZ/60HZ
Specifications
Place of Origin :
China
Brand Name :
Mandiwi, Oli, etc
MOQ :
5 pieces
Price :
$60.00/pieces 5-49 pieces
Payment Terms :
T/T, LC, Trade assurance Order, Western Union
Supply Ability :
3000sets per day
Delivery Time :
10days
Packaging Details :
Carton packing, 1set/carton
Applicable Industries :
Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops
Showroom Location :
None
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Bearing, Motor
Condition :
New
Type :
External
Drive Mode :
Electric Vibrator
Frequency :
50HZ/60HZ
Voltage :
220V/380V, 220V/380V/ or customized
Weight :
6.8 kg
UNIQUE SELLING POINT :
High operating efficiency
Vibration frequency :
50HZ/60HZ
Application :
Construction Industry
Vibration Force :
1KN/2KN
Description

Electric Drive Mode For MVE Series OLI External Vibrating Motors 50HZ/60HZ Frequency

Products Description

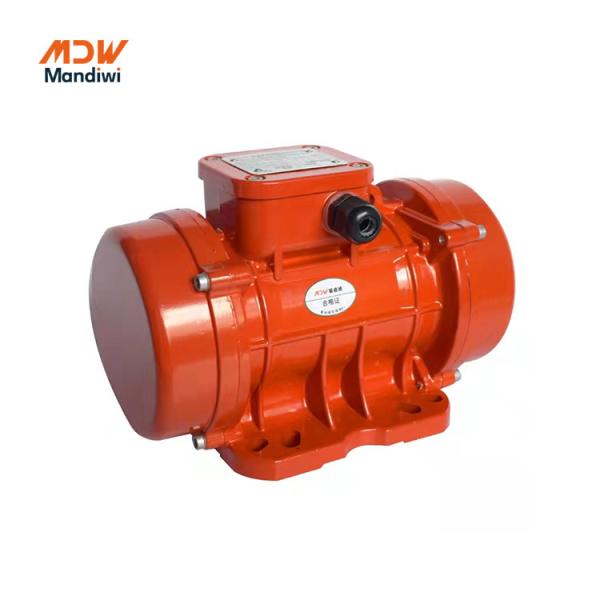

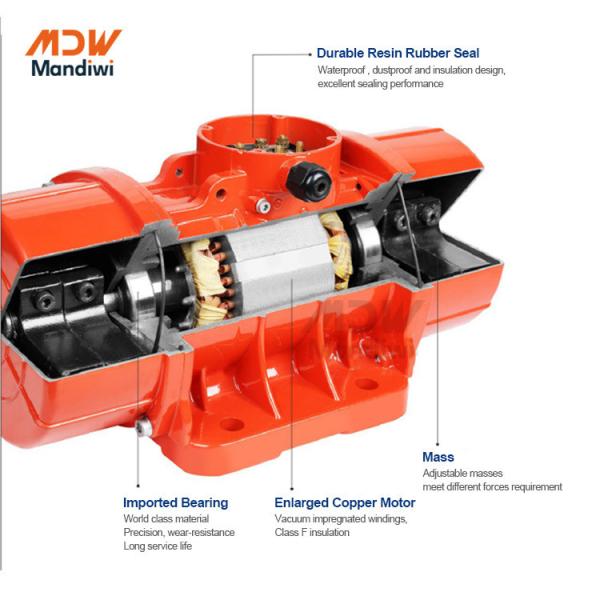

MVE series Vibration Motor

Electric motovibrators for vibrating equipments.Standard

HAVE 2/4/6/8 poles,

Speed 3000/1500/1000/750 rpm

Electric Drive Mode MVE Series OLI External Electric Vibrating Motors 50HZ/60HZ

Electric Drive Mode MVE Series OLI External Electric Vibrating Motors 50HZ/60HZ

Electric Drive Mode MVE Series OLI External Electric Vibrating Motors 50HZ/60HZ

Electric Drive Mode MVE Series OLI External Electric Vibrating Motors 50HZ/60HZ

Product Parameters:

Model Force Power Speed Rpm Current Weight Size
kg kN kw r/min (A max) (Kg)
MVE60/3 -10A0 71 0.7 0.04 2800 0.25 4.7 10A0
MVE100/3-10A0 102 1 0.04 2800 0.25 4.9 10A0
MVE200/3-10A0 102 1 0.09 2800 0.35 6.6 10A0
MVE200/3-20A0 204 2 0.09 2900 0.35 6.6 20A0
MVE300/3 -30A0 306 3 0.16 2800 0.52 10.2 30A0
MVE400/3 -30A0 408 4 0.2 2800 0.58 11 30A0
MVE500/3 -40A0 510 5 0.37 2800 0.96 16 40A0
MVE700/3 -40A0 714 7 0.45 2800 1.25 16.8 40A0
MVE800/3 -50A0 815 8 0.55 2800 1.45 20.1 50A0
MVE1200/3 -50A0 1019 10 0.75 2800 1.85 21.8 50A0
MVE1300/3 -50A0 1325 13 1.1 2800 2.44 23.9 50A0
MVE1600/3 -60A0 1631 16 1.25 2800 2.94 54 60A0

Our Advantages

Electric Drive Mode MVE Series OLI External Electric Vibrating Motors 50HZ/60HZ

Electric Drive Mode MVE Series OLI External Electric Vibrating Motors 50HZ/60HZ

Electric Drive Mode MVE Series OLI External Electric Vibrating Motors 50HZ/60HZ

Company Profile

Electric Drive Mode MVE Series OLI External Electric Vibrating Motors 50HZ/60HZ

Hunan Jiancheng Technology Co., Ltd. is an industry and trade integrated enterprise focusing on the R&D and manufacturing of Mechanical Components and Spares for Batching Plants.

Mandiwi (MDW), as an independent brand under Jiancheng Technology, has established an product R&D laborary based on studying big data on the actual working conditions of global concrete machinery and equipment, now providing more cost-effective, high-quality and longer service life products and spares, including Valves, Level Monitoring Components, Vibrators, Dust Filters and Flow Aids, Screw Conveyors and Parts, Concrete Mixers, etc.

After years of development, the MDW has built in-depth cooperation relationships with many internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, etc. And our products have exported to Europe, North America, South Asia, West Asia, Middle East, Africa and other countries and regions.

‘Focus, Simplicity, Efficiency and Reliability ’ are the design concepts that the MDW brand has always adhered to since its establishment.

‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.

Electric Drive Mode MVE Series OLI External Electric Vibrating Motors 50HZ/60HZ

Electric Drive Mode MVE Series OLI External Electric Vibrating Motors 50HZ/60HZ

Electric Drive Mode MVE Series OLI External Electric Vibrating Motors 50HZ/60HZ

Electric Drive Mode MVE Series OLI External Electric Vibrating Motors 50HZ/60HZ

Certifications

Electric Drive Mode MVE Series OLI External Electric Vibrating Motors 50HZ/60HZ
