Specifications
Brand Name :
MDW
Model Number :
MVE200/3
Place of Origin :
China
MOQ :
1set
Price :
USD55~60/set
Supply Ability :
1000sets/day
Packaging Details :
Currugated Carton
Payment Terms :
T/T, LC, Trade assurance Order, Western Union
Size :
Small
Centrifugal force :
20-40000kg
Model :
MVE200/3
Frequency :
50Hz-60Hz
Voltage :
220V~690VAC
Warranty :
1 Year
Application :
Vibrating machines in general. Vibrating screens, conveyors and vibrating extractors, compaction tables, foundry diggers, fluid beds, spiral elevators.
Color :
Red, Yellow, Can be customize
Poles :
2,4,6,8 poles
Insulation :
F class
Description

Multiple Voltages MDW External Electric Vibrator MVE Series For Construction Mining Foodstuff Application

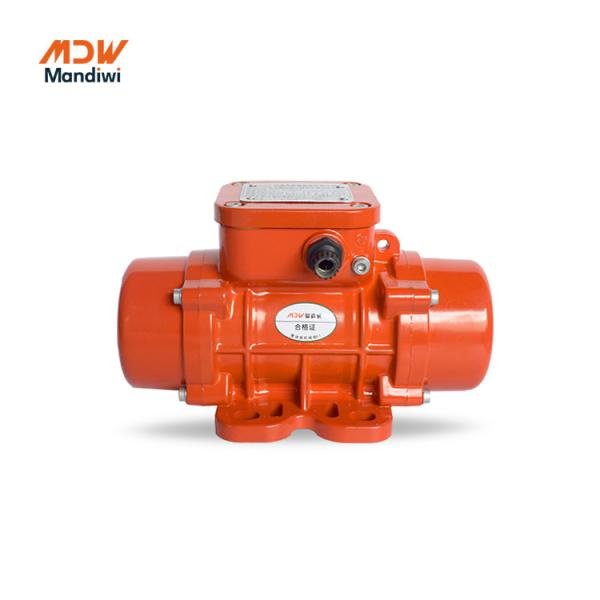

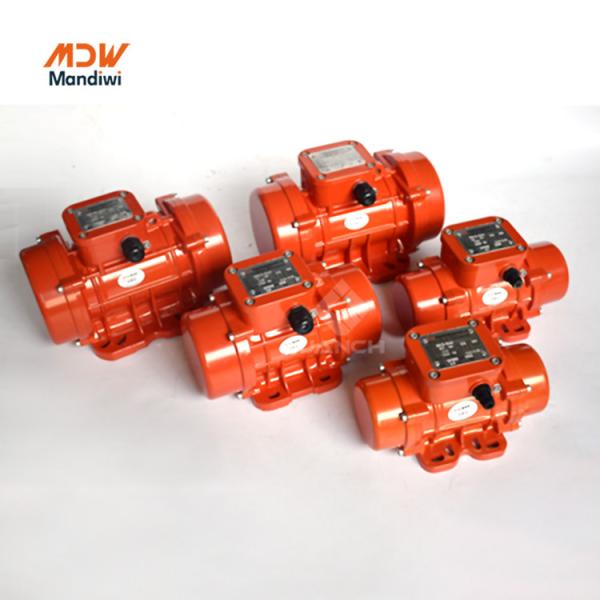

MVE series Vibration Motor

Electric vibrating motors (MVE) for general applications in various industrial sectors on machines and vibrating tables.

Applications

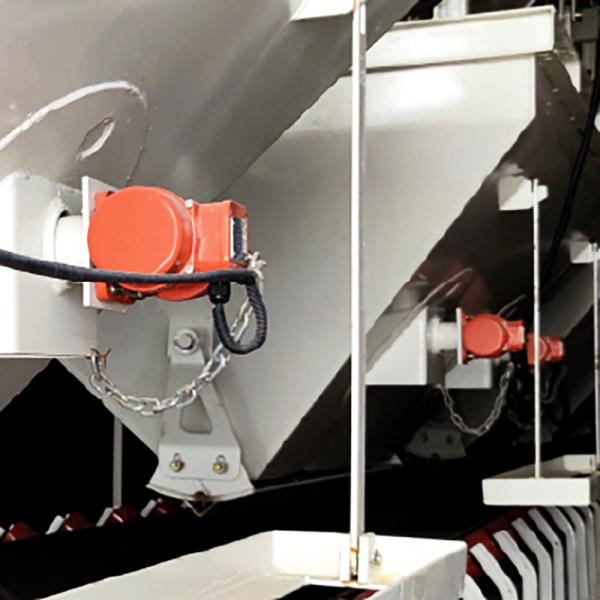

Vibrating machines in general. Vibrating screens, conveyors and vibrating extractors, compaction tables, foundry diggers, fluid beds, spiral elevators.

MDW External Electric Vibrator MVE Series For Construction Mining Foodstuff ApplicationMDW External Electric Vibrator MVE Series For Construction Mining Foodstuff Application

MDW External Electric Vibrator MVE Series For Construction Mining Foodstuff Application

Features

  • Centrifugal force: 20 ~ 26,000 kg
  • Voltages 12 and 24 VDC, from 220 to 690VAC

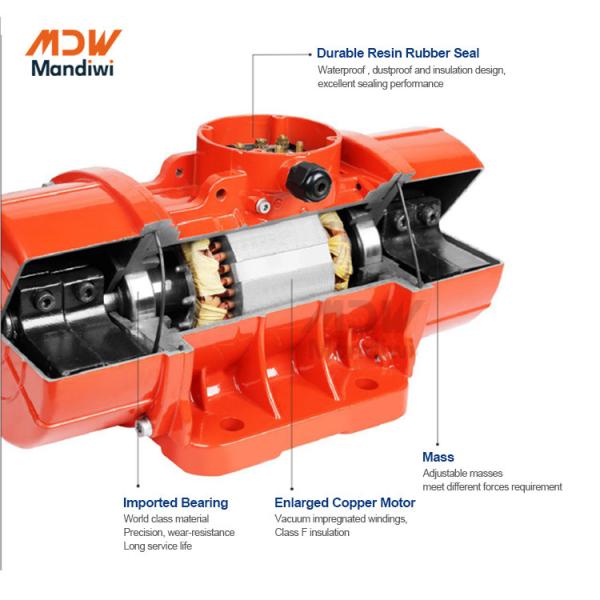

  • Windings impregnated under vacuum with class F insulating materials
  • Optimized design and components for demanding applications.

Advantages

  • Greased for life = Zero maintenance *
  • Wide range of centrifugal forces for all applications
  • Different voltages available for global applications

* for special applications contact our technical service

Options

  • 2, 4, 6, 8 poles, three-phase
  • 2 single phase poles
  • Direct current
Product Paramenters
Model Force Power Speed Rpm Current Weight Size
kg kN kw r/min (A max) (Kg)
MVE60/3 -10A0 71 0.7 0.04 2800 0.25 4.7 10A0
MVE100/3-10A0 102 1 0.04 2800 0.25 4.9 10A0
MVE200/3-10A0 102 1 0.09 2800 0.35 6.6 10A0
MVE200/3-20A0 204 2 0.09 2900 0.35 6.6 20A0
MVE300/3 -30A0 306 3 0.16 2800 0.52 10.2 30A0
MVE400/3 -30A0 408 4 0.2 2800 0.58 11 30A0
MVE500/3 -40A0 510 5 0.37 2800 0.96 16 40A0
MVE700/3 -40A0 714 7 0.45 2800 1.25 16.8 40A0
MVE800/3 -50A0 815 8 0.55 2800 1.45 20.1 50A0
MVE1200/3 -50A0 1019 10 0.75 2800 1.85 21.8 50A0
MVE1300/3 -50A0 1325 13 1.1 2800 2.44 23.9 50A0
MVE1600/3 -60A0 1631 16 1.25 2800 2.94 54 60A0
