Specifications
Place of Origin :
China
Brand Name :
Mandiwi, Oli, etc
MOQ :
5 pieces
Price :
$60.00/pieces 5-49 pieces
Payment Terms :
T/T, LC, Trade assurance Order, Western Union
Applicable Industries :
Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops
Core Components :
Bearing, Motor
Condition :
New
Type :
External
Drive Mode :
Electric Vibrator
Frequency :
50HZ/60HZ
Voltage :
220V/380V, 220V380V/ or customized
Weight :
6.8 kg
Warranty :
1 Year
UNIQUE SELLING POINT :
High operating efficiency
Application :
Construction Industry
Vibration Force :
1KN/2KN
Poles :
2poles
Speed :
3000rpm
Description

Construction Mining Foodstuff Application Electric Vibrator with Multiple Voltages

Products Description:

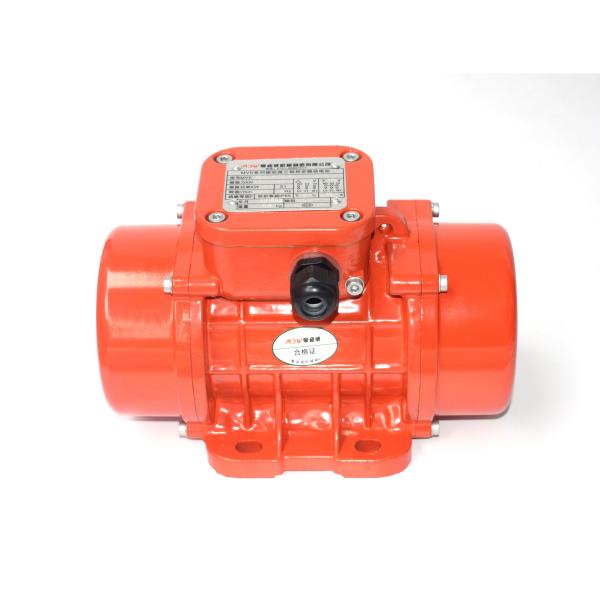

MVE series Vibration Motor

Electric motovibrators for vibrating equipments.Standard

HAVE 2/4/6/8 poles,

Speed 3000/1500/1000/750 rpm

Construction Mining Foodstuff Application Electric Vibrating Motors with Multiple Voltages

Construction Mining Foodstuff Application Electric Vibrating Motors with Multiple Voltages

Construction Mining Foodstuff Application Electric Vibrating Motors with Multiple Voltages

Construction Mining Foodstuff Application Electric Vibrating Motors with Multiple Voltages

Product Paramenters:

Model

Force

Power

Speed Rpm

Current

Weight

Size

kg

kN

kw

r/min

(A max)

(Kg)

MVE60/3 -10A0

71

0.7

0.04

2800

0.25

4.7

10A0

MVE100/3-10A0

102

1

0.04

2800

0.25

4.9

10A0

MVE200/3-10A0

102

1

0.09

2800

0.35

6.6

10A0

MVE200/3-20A0

204

2

0.09

2900

0.35

6.6

20A0

MVE300/3 -30A0

306

3

0.16

2800

0.52

10.2

30A0

MVE400/3 -30A0

408

4

0.2

2800

0.58

11

30A0

MVE500/3 -40A0

510

5

0.37

2800

0.96

16

40A0

MVE700/3 -40A0

714

7

0.45

2800

1.25

16.8

40A0

MVE800/3 -50A0

815

8

0.55

2800

1.45

20.1

50A0

MVE1200/3 -50A0

1019

10

0.75

2800

1.85

21.8

50A0

MVE1300/3 -50A0

1325

13

1.1

2800

2.44

23.9

50A0

MVE1600/3 -60A0

1631

16

1.25

2800

2.94

54

60A0

QUALITY

World class materials

Class F insulation

Durable sealing

Premium bearings

Vacuum insulation

EFFICIENCY

Optimised power/weight ratio

Optimized electric design

RELIABILITY

PTC thermistor 130 °C

Specific grease retaining device

Tropicalised standard

IP65 protection

Class F insulation

FLEXIBILITY

Easy mass adjustment

Various voltages and frequencies available

Easy access to the terminal box

Features

l Centrifugal force: 20 ~ 26,000 kg

l Voltages 12 and 24 VDC, from 220 to 690VAC

l Windings impregnated under vacuum with class F insulating materials

l Optimized design and components for demanding applications.

Advantages

l Greased for life = Zero maintenance *

l Wide range of centrifugal forces for all applications

l Different voltages available for global applications
