Construction Mining Electric Vibration Motors For Silo Hopper Bins
Construction Mining Electric Vibration Motors For Silo Hopper Bins
Construction Mining Electric Vibration Motors For Silo Hopper Bins
Construction Mining Electric Vibration Motors For Silo Hopper Bins
Construction Mining Electric Vibration Motors For Silo Hopper Bins
Construction Mining Electric Vibration Motors For Silo Hopper Bins
Construction Mining Electric Vibration Motors For Silo Hopper Bins
Construction Mining Electric Vibration Motors For Silo Hopper Bins
Construction Mining Electric Vibration Motors For Silo Hopper Bins
Construction Mining Electric Vibration Motors For Silo Hopper Bins
Construction Mining Electric Vibration Motors For Silo Hopper Bins
Construction Mining Electric Vibration Motors For Silo Hopper Bins
Specifications
Place of Origin :
China
Brand Name :
Mandiwi, Oli, etc
MOQ :
5 pieces
Price :
$59.00/pieces 5-99 pieces
Payment Terms :
T/T, LC, Trade assurance Order, Western Union
Delivery Time :
10-15 working days
Packaging Details :
1pcs per carton, with a waterproof bag
Applicable Industries :
Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops
Showroom Location :
None
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Bearing, Motor
Condition :
New
Type :
External
Drive Mode :
Electric Vibrator
Frequency :
50HZ/60HZ
Voltage :
220V/380V, 220V/380V/ or customized
Weight :
6.9 kg
UNIQUE SELLING POINT :
High operating efficiency
Vibration frequency :
50HZ/60HZ
Application :
Construction Mining Foodstuff Industries
Vibration Force :
1KN/2KN/Customize
Poles :
2/4/6/8poles
Speed :
3000rpm
Description

Products Description

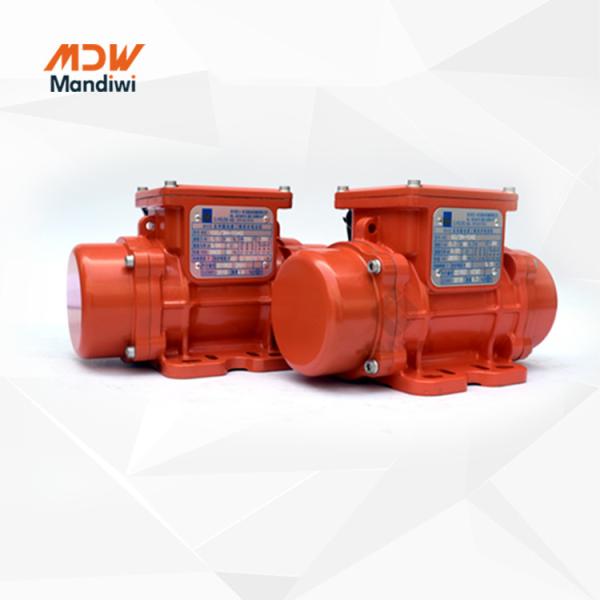

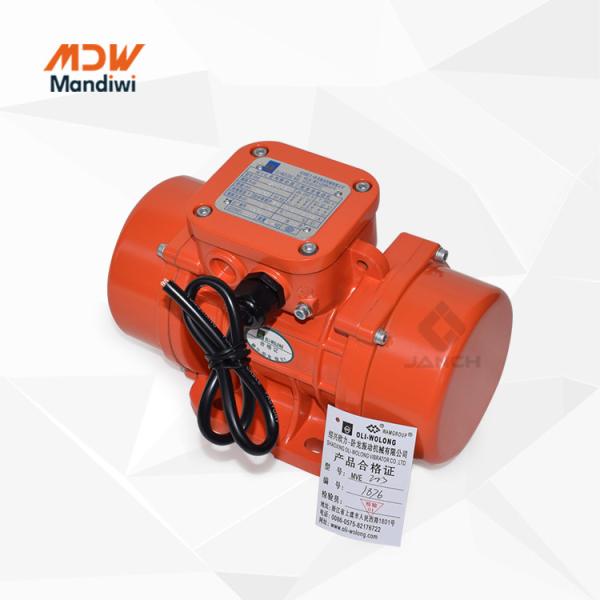

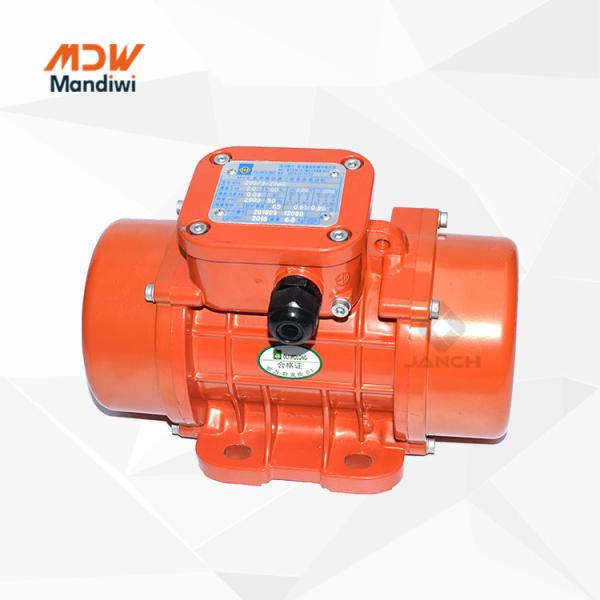

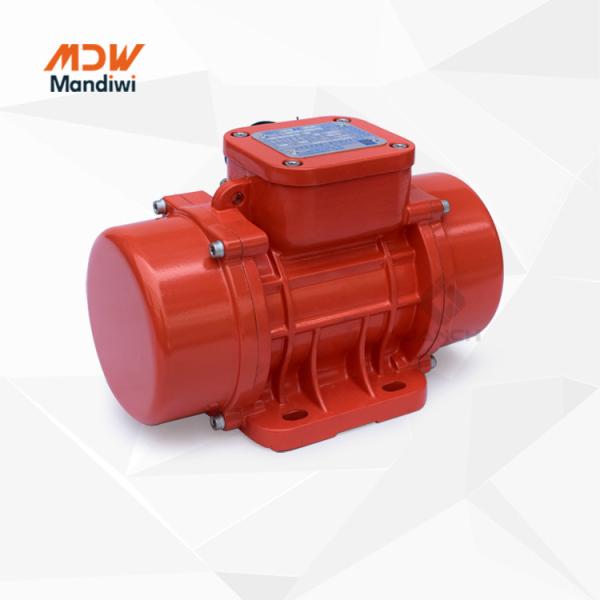

MVE series Vibration Motor-OLI-WOLONG Original -MVE200/3, 1.1KN/2.0KW FORCE

MDW electric vibrating motors can generate a centrifugal force up to 26,000 kg and are available in multiple voltages, such as 220V, 380V, 400V,etc. For this reason, the range of MDW industrial vibrators can be used in numerous sectors of application – from construction to the mining industry, from the foodstuff industry to recycling – in every country around the world.

MDW electric vibrating motors were designed and assembled availing of the most recent technologies and using top quality materials and components. The motor casings, the support flanges and the shafts were designed according to FMEA criteria and are assembled using top quality aluminium alloys, cast iron and steel alloys, to allow the vibrator to deal with high intensity applications and guarantee safe operations in every condition.

Construction Mining Electric Vibration Motors For Silo Hopper Bins

Construction Mining Electric Vibration Motors For Silo Hopper Bins

Construction Mining Electric Vibration Motors For Silo Hopper Bins

Construction Mining Electric Vibration Motors For Silo Hopper Bins

Product Parameters:

Model Force Power Speed Rpm Current Weight Size
kg kN kw r/min (A max) (Kg)
MVE60/3 -10A0 71 0.7 0.04 2800 0.25 4.7 10A0
MVE100/3-10A0 102 1 0.04 2800 0.25 4.9 10A0
MVE200/3-10A0 102 1 0.09 2800 0.35 6.6 10A0
MVE200/3-20A0 204 2 0.09 2900 0.35 6.6 20A0
MVE300/3 -30A0 306 3 0.16 2800 0.52 10.2 30A0
MVE400/3 -30A0 408 4 0.2 2800 0.58 11 30A0
MVE500/3 -40A0 510 5 0.37 2800 0.96 16 40A0
MVE700/3 -40A0 714 7 0.45 2800 1.25 16.8 40A0
MVE800/3 -50A0 815 8 0.55 2800 1.45 20.1 50A0
MVE1200/3 -50A0 1019 10 0.75 2800 1.85 21.8 50A0
MVE1300/3 -50A0 1325 13 1.1 2800 2.44 23.9 50A0
MVE1600/3 -60A0 1631 16 1.25 2800 2.94 54 60A0

QUALITY

World class materials, Class F insulation

Durable sealing, Premium bearings

Strong body design - FEM designed

Vacuum insulation, FMEA analysis, 3D quality check

EFFICIENCY

Optimised power/weight ratio, S1 continuous duty service, Optimized electric design

RELIABILITY

PTC thermistor 130 °C; Specific grease retaining device

Tropicalised standard; IP66 protection, Class F insulation

FLEXIBILITY

Easy mass adjustment

Various voltages and frequencies available

Easy access to the terminal box

Multiple eye-bolts

Construction Mining Electric Vibration Motors For Silo Hopper Bins

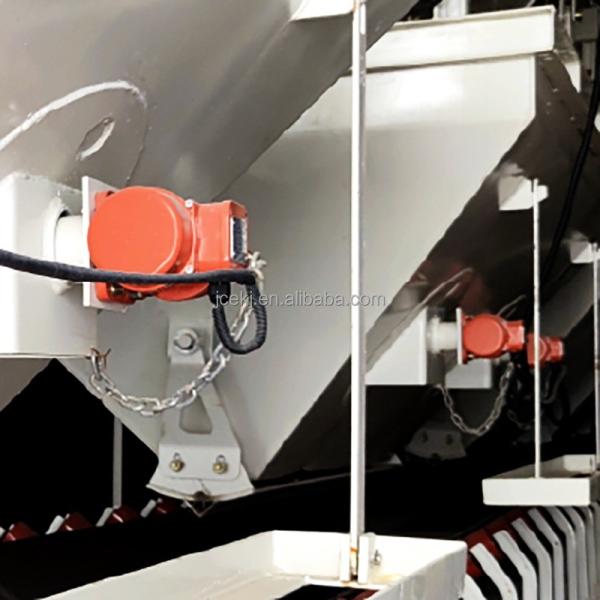

Application

Construction Mining Electric Vibration Motors For Silo Hopper Bins

Construction Mining Electric Vibration Motors For Silo Hopper Bins

Construction Mining Electric Vibration Motors For Silo Hopper Bins

Our Advantages

Construction Mining Electric Vibration Motors For Silo Hopper Bins

Construction Mining Electric Vibration Motors For Silo Hopper Bins

Construction Mining Electric Vibration Motors For Silo Hopper Bins

Company Profile

Construction Mining Electric Vibration Motors For Silo Hopper Bins

Hunan Jiancheng Technology Co., Ltd. is an industry and trade integrated enterprise focusing on the R&D and manufacturing of Mechanical Components and Spares for Batching Plants.

Mandiwi (MDW), as an independent brand under Jiancheng Technology, has established an product R&D laborary based on studying big data on the actual working conditions of global concrete machinery and equipment, now providing more cost-effective, high-quality and longer service life products and spares, including Valves, Level Monitoring Components, Vibrators, Dust Filters and Flow Aids, Screw Conveyors and Parts, Concrete Mixers, etc.

After years of development, the MDW has built in-depth cooperation relationships with many internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, etc. And our products have exported to Europe, North America, South Asia, West Asia, Middle East, Africa and other countries and regions.

‘Focus, Simplicity, Efficiency and Reliability ’ are the design concepts that the MDW brand has always adhered to since its establishment.

‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.
