Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors
Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors
Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors
Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors
Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors
Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors
Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors
Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors
Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors
Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors
Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors
Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors
Specifications
Place of Origin :
China
Brand Name :
WAM, SICOMA, MDW
MOQ :
10 pieces
Price :
$60.00/pieces 10-49 pieces
Payment Terms :
T/T, LC, Trade assurance Order, Western Union
Model Number :
168/219/273/323
Certification :
ISO9001, ISO14001
Delivery Time :
10-15 working days
Packaging Details :
Bulk packing, Wooden case packing
Condition :
New
Applicable Industries :
Energy & Mining, Food & Beverage Factory, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , Food & Beverage Shops, Other
Marketing Type :
Ordinary Product
Product name :
WAM intermediate hanger bearing
Fixed type :
encoder flexible coupling
Body Material :
Aluminum Alloy
Weight :
3.5/4.3/4.5/5.0KG
Max Speed :
300
Feeder Size :
168/219/273/323mm
Application :
stuitable for cement, lime and similar powder
Description

Product Description:

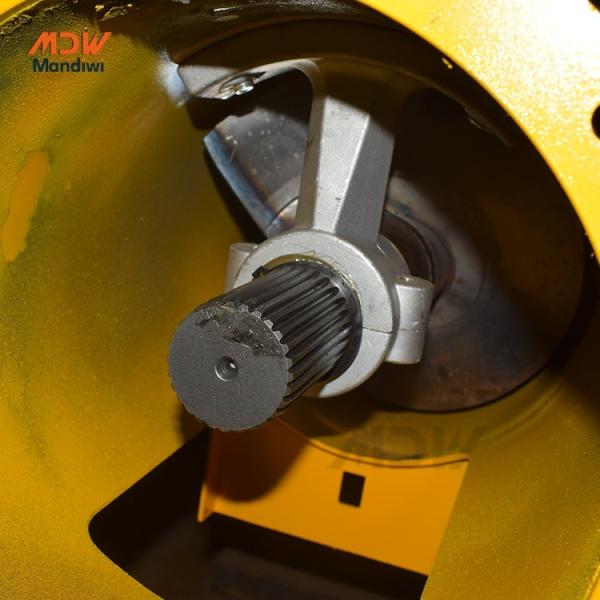

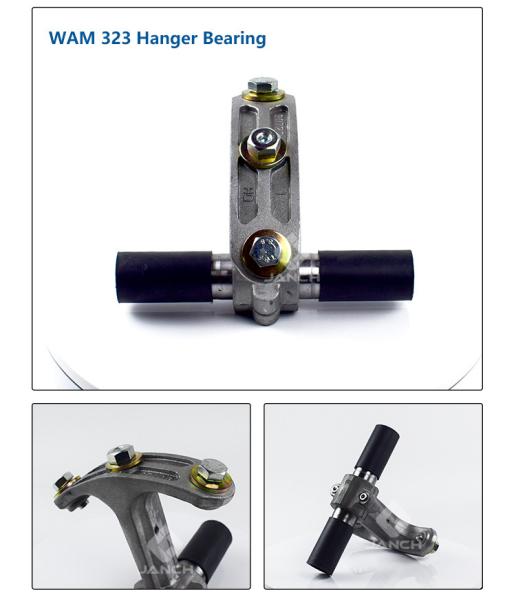

WAM original quality, Alluminum Alloy Intermediate Hanger Bearings for screw conveyor

WAM /sicoma Intermediate Hanger Bearing for 168/219/273/323mm cement screw conveyor

Code for ES168 XLR040B015T44
Code for ES193 XLR040B017T44
Code for ES219 XLR040B020T44
Code for ES273 XLR040B025T44
Code for ES323 XLR040B030T44

Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors

Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors

Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors

Code φ
Shaft		 φ
Screw		 A B C φD E F G L DIN5482
φM		 KG
XLR028B010T44 028 114 54 35 30 M 10 8 65 40 170 28x25 1.7
XLR028B012T44 028 139 66.5 35 30 M 10 10 65 40 170 28x25 1.8
XLR028B015T44 040 168 80 55 51 M 14 15 85 75 245 40x36 3.5
XLR028B017T44 040 193 92.5 55 51 M 14 15 85 75 245 40x36 3.9
XLR028B020T44 040 219 105.5 55 51 M 14 15 85 75 245 40x36 4.3
XLR028B025T44 040 273 132.5 55 51 M 14 15 85 75 245 40x36 4.5
XLR028B030T44 040 323 157.5 55 51 M 14 15 85 75 245 40x36 5

Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors

Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors

Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors

Packing & Delivery:

Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors

Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors

Our Clients:

1. Excellent Price-performance Ratio

The performance and quality are completely comparable to global similar brand products, cost saving and .

2. Comprehensive Product Range, Stocks Available

Meet the one-stop purchasing needs of customers, provide trouble-free and considerate services.

3. Certified Supplier of Famous Enterprises,

Established in-depth and long-term cooperation relationships with many internationally renowned enterprises, such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, and Xinzhu Group.

4. ISO9001 and ISO14001 Certified

Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors

Our Advantages:

Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors

professional team over 80 people which masters world-leading R&D technology, product manufacturing and sourcing.

Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors

Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors

Company Profile

Max Speed 300 Intermediate Hanger Bearings for Concrete Mixing Station Screw Conveyors

Hunan Jiancheng Technology Co., Ltd. is focusing on the R&D, manufacturing and marketing of Mechanical Components and Spares for Concrete Batching Plants.

Mandiwi (MDW), as an independent brand under Jiancheng Technology, has established an product R&D laborary based on studying big data on the actual working conditions of global concrete machinery and equipment, now providing more cost-effective, high-quality and longer service life products and spares, including Valves, Level Monitoring Components, Vibrators, Dust Filters and Flow Aids, Screw Conveyors and Parts, Concrete Mixers, etc.

After years of development, the MDW has built in-depth cooperation relationships with many internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, etc. And our products have exported to Europe, North America, South Asia, West Asia, Middle East, Africa and other countries and regions.

‘Focus, Simplicity, Efficiency and Reliability’ are the design concepts that the MDW brand has always adhered to since its establishment.

‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.
