MDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEM
MDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEM
MDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEM
MDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEM
MDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEM
MDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEM
MDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEM
MDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEM
MDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEM
MDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEM
Specifications
Place of Origin :
China
Brand Name :
MDW, WAM
Model Number :
CP101
MOQ :
5 pieces
Price :
$52.00/pieces 5-49 pieces
Payment Terms :
T/T, LC, Trade assurance Order, Western Union
Delivery Time :
3-7 working days
Product Name :
Pneumatic Actuator, Swivel Actuator
Operating Pressure :
2~8 Bar
Operating Temperature :
-20℃~+80℃
Customized support :
OEM, ODM
Application :
Applied on valves to control opening and closing
Description

Customized Support OEM MDW WAM Pneumatic Swivel Actuator Accessories for Butterfly Valves

Products Description:

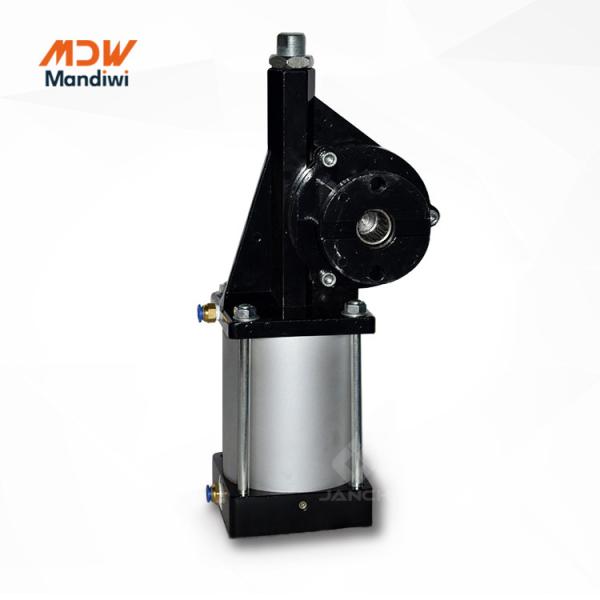

Mandiwi CP126 Swivel Pneumatic Actuator for VFS Butterfly Valves, with the limit switch box

CP series Pneumatic Actuators are suitable for 90-degree opening and closing of MDW Butterfly Valves and VFS series butterfly valves
CP actuators come with splined shaft coupling bush according to DIN 5482
Operating pressure : 2 ~ 8 bar (29 ~ 116 PSI).

MDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEM

MDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEM

MDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEM

Product Parameters:

Model

Size of butterfly valve (DN)

Weight (kg)

CP101

DN100, DN150, DN200, DN250, DN300

3.3kg

CP126

DN350, DN400

9.6kg

Options & Accessories
* 5/2 solenoid valves
* Solenoid coils

Benefits
* Sturdy, durable compact design
* Perfectly compatible accessories
* Matchless cost effectiveness due to series production

​

Details:

Limit Switch Box MIC23

The limit switch can indicate the valve switch status, or the electric signal can feedback the valve switch status

Limit screw

The limit screw is used to adjust the valve angle. When the valve is not closed in place, the limit screw can be adjusted

Connection Gear

The connecting gear is used to connect with the valve stem and has a fixed installation size

MDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEMMDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEMMDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEM

Application of the cylinders:

MDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEMMDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEMMDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEM

Packaging and Shipment:

each cylinder packed well by a water proof bag and box.

MDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEM

MDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEM

MDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEM

Our Advantages:

1. One-Stop Deal in Bulk Solids Handling & Processing Equipment

2. Comprehensive Product Range

3. Industrial Quality

4. Excellent Price-performance Ratio

5. the Ideal Choice for Project Engineers

6. ISO9001 and ISO14001 Certified

6. offering customers professional advice, smooth order management and ‘round the clock’ spares service.

7. Certified Supplier of Famous Enterprises, such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, and Xinzhu Group.

MDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEM

MDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEM

MDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEM

MDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEM

Company Profile:

MDW WAM Accessories Butterfly Valves Swivel Pneumatic Actuator Customized OEM

Hunan Jiancheng Technology Co., Ltd. is an industry and trade integrated enterprise focusing on the R&D and manufacturing of Mechanical Components and Spares for Batching Plants.

Mandiwi (MDW), as an independent brand under Jiancheng Technology, has established an product R&D laborary based on studying big data on the actual working conditions of global concrete machinery and equipment, now providing more cost-effective, high-quality and longer service life products and spares, including Valves, Level Monitoring Components, Vibrators, Dust Filters and Flow Aids, Screw Conveyors and Parts, Concrete Mixers, etc.

After years of development, the MDW has built in-depth cooperation relationships with many internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, etc. And our products have exported to Europe, North America, South Asia, West Asia, Middle East, Africa and other countries and regions.

‘Focus, Simplicity, Efficiency and Reliability ’ are the design concepts that the MDW brand has always adhered to since its establishment.

‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.
