Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance
Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance
Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance
Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance
Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance
Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance
Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance
Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance
Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance
Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance
Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance
Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance
Specifications
Place of Origin :
China
Brand Name :
MDW, Mandiwi
MOQ :
5 pieces
Price :
$80.00/pieces 5-9 pieces
Payment Terms :
T/T, LC, Trade assurance Order, Western Union
Model Number :
DN80
Delivery Time :
10-15 working days
Packaging Details :
1pcs per corrugated carton, with foam protection
Port Size :
80mm
Power :
Pneumatic
Temperature of Media :
Low Temperature, Normal Temperature
Structure :
BUTTERFLY
Media :
Water, Liquid, Powder, etc
Customized support :
OEM, ODM
Product name :
Pneumatic Actuator wafer Butterfly Valves
DN(Nominal Diameter) :
50mm(4")~400mm(16")
Driving Mode :
Pneumatic, or manual
Sealing Material :
NBR, EPDM
Suitable media :
Powder, Water, Cement, Sewage, Admixture liquid,etc
Working Pressure :
1.0-1.6Mpa (10-25bar)
Connection :
Wafer Connection
Working Temperature :
-20℃ ~+80℃
Disc Material :
Stainless Steel, Ductile Iron
Description

Powder Media DN80 Water Butterfly Valve With Pneumatic Actuator Sealing Performance

Products Description:

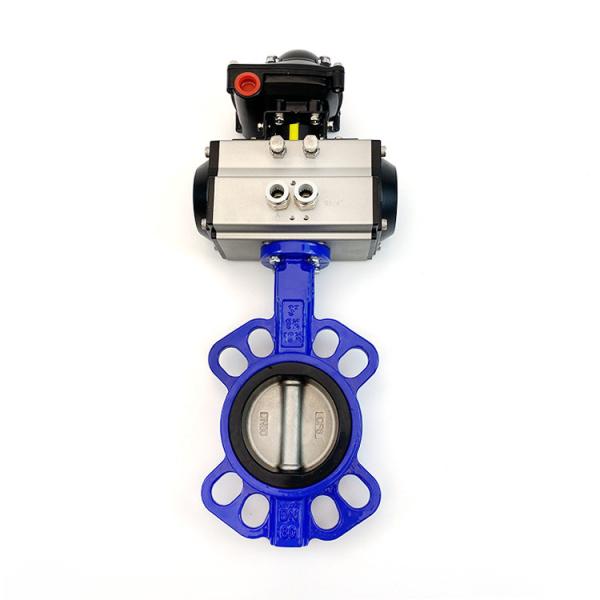

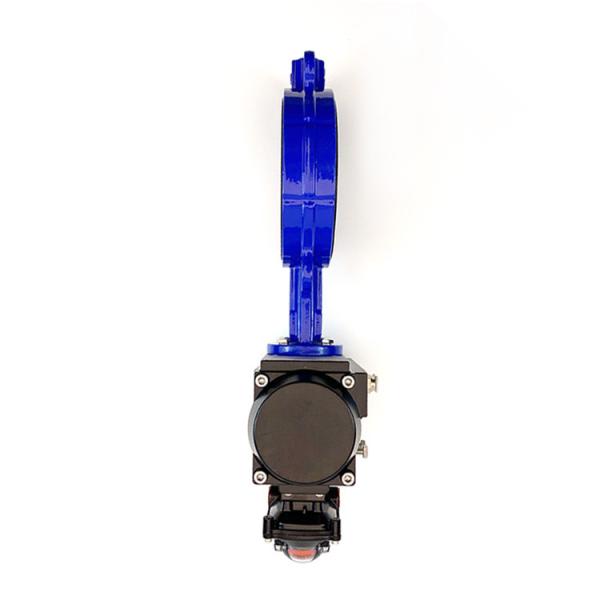

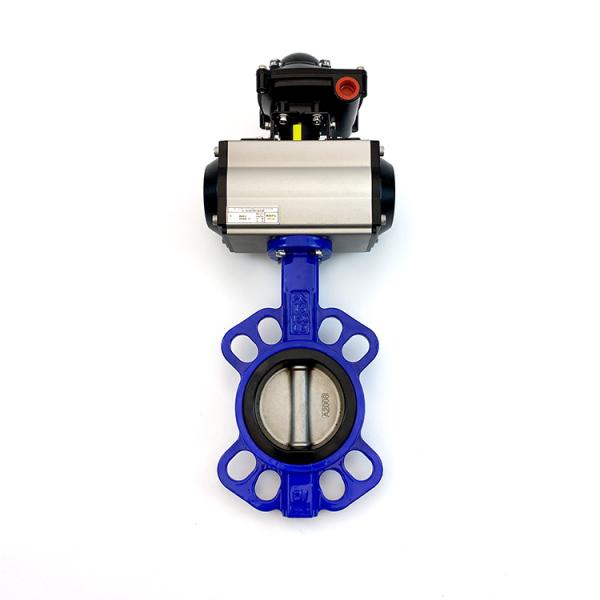

DN80 Pneumatic butterfly valves, with limit switch box and cylinder.

connected with solenoid valve, fixed beneath water bin or admixture hopper, etc.

effectively control the flow of liquid media.

stainless steel valve disc, avoid rust.

Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance

Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance

Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance

Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance

Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance

Mandiwi wafer butterfly valve is a control valve commonly used in industrial piping system.
Its working principle is based on the movement of the disc to open and close the valve.
The main components of the water wafr butterfly valve include the valve body, valve disc, valve stem, valve seal, etc.
The durability test of opening and closing is more than 100,000times.

Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance

1. Swivel Disc in Stainless Steel

Water butterfly valves use stainless steel disc, and VFS series powder butterfly valve choose ductile iron.

Highly abrasion-resistant, corrosion resistant, good toughness, Excellent strength and small flow resistance.

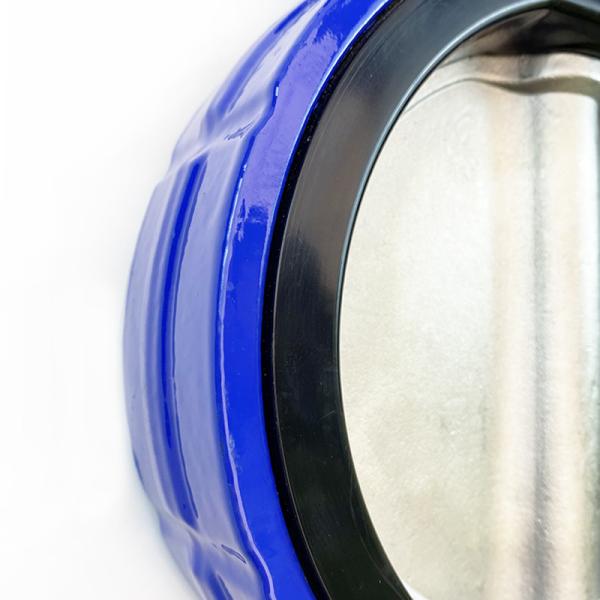

2. Reliable Sealing Performance

Excellent sealing performance, effectively prevent the leakage.

Different materials available, such as NBR, EPDM, PTFE, etc.

3. NAMUR Standard Pneumatic Actuator with Anodized Aluminum Alloy Cylinder

The pneumatic actuator’s surface is anodized and hardened, with high strength, good wear resistance, high temperature resistance and corrosion resistance.

Meet NAMUR standard and ISO5211 standard. Easy to fit and handle, low maintenance cost.

4. Customization is available

Can customize according to working condition and using demands, including different materials, different colors, etc.

Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance

Product packaging:

Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance

Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance

Why Choose Us

Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance

Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance

Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance

Company Profile

Powder Media DN80 Water Butterfly Valves With Pneumatic Actuator Sealing Performance

Hunan Jiancheng Technology Co., Ltd. is an industry and trade integrated enterprise focusing on the R&D and manufacturing of Mechanical Components and Spares for Batching Plants.

Mandiwi (MDW), as an independent brand under Jiancheng Technology, has established an product R&D laborary based on studying big data on the actual working conditions of global concrete machinery and equipment, now providing more cost-effective, high-quality and longer service life products and spares, including Valves, Level Monitoring Components, Vibrators, Dust Filters and Flow Aids, Screw Conveyors and Parts, Concrete Mixers, etc.

After years of development, the MDW has built in-depth cooperation relationships with many internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, etc. And our products have exported to Europe, North America, South Asia, West Asia, Middle East, Africa and other countries and regions.

‘Focus, Simplicity, Efficiency and Reliability ’ are the design concepts that the MDW brand has always adhered to since its establishment.

‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.
