Specifications
Place of Origin :
China
Brand Name :
Mandiwi, WAM, Sicoma, customized
Price :
$129.00/pieces 1-9 pieces
Payment Terms :
T/T, LC, Trade assurance Order, Western Union
Model Number :
DN250
Certification :
ISO9001, ISO14001
MOQ :
5piece
Delivery Time :
10-15 working days
Packaging Details :
1pcs per corrugated carton, with foam protection
Application :
General
Port Size :
DN250, 10" (DN250)
Power :
Pneumatic
Temperature of Media :
Low Temperature, Medium Temperature
Structure :
BUTTERFLY
Customized support :
OEM, ODM
Product name :
Pneumatic Butterfly Valves
Body material :
Aluminum Alloy
Valve disc :
Ductile Iron
Drive mode :
Pneumatic Drive
Connection :
Flange Ends
Seal Material :
NBR, EPDM
Medium :
Powdery, granular material
Description

Product Description:

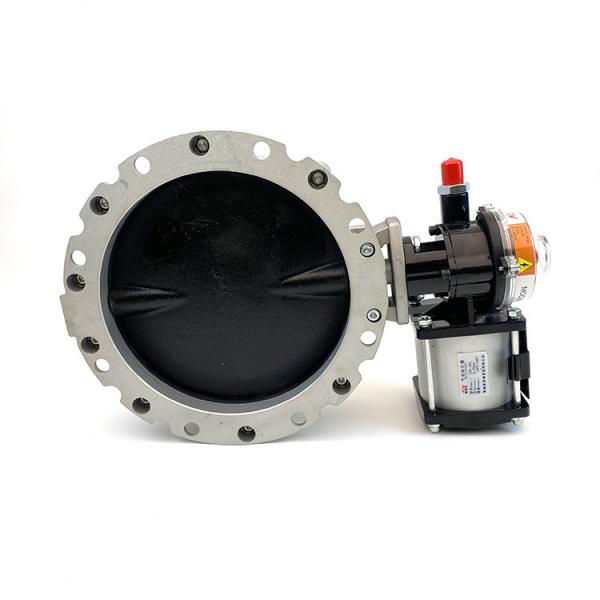

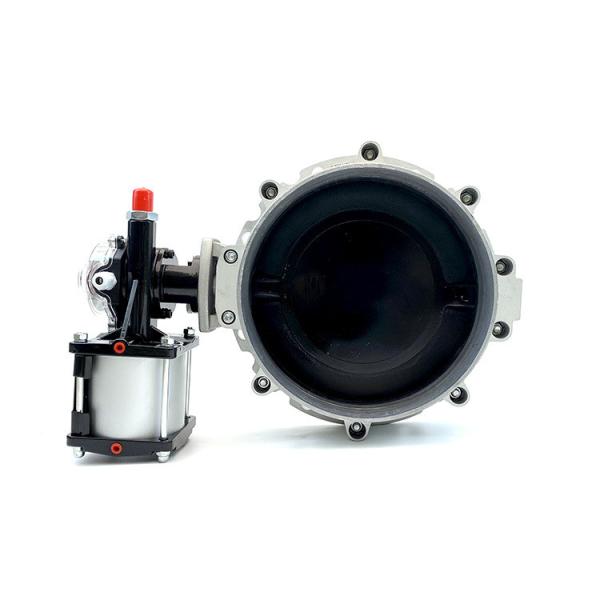

Mandiwi VFS pneumatic powder butterfly valves consist of two high-pressure aluminum alloy die-cast semi-bodies, a cast iron or stainless steel swivel disc, and a pre-stressed elastomer seal; with the solenoid valve and cylinder connected to the pneumatic conveying pipe, are fitted beneath hoppers, bins, silos, screw or other type conveyors.

The durability test of opening and closing is more than 100,000 times.

MV1FS with top flange and beaded bottom section suitable for fixing a flexible sleeve

MV2FS with identical top and bottom flange

VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials

VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials

Detail of Valve:

Plate/Disc

Disc in cast iron, or stainless steel. Adopt frame structure, high strength, good toughness, large flow area, small flow resistance

Seal of Valve

Soft sealing material, reliable sealing performance.

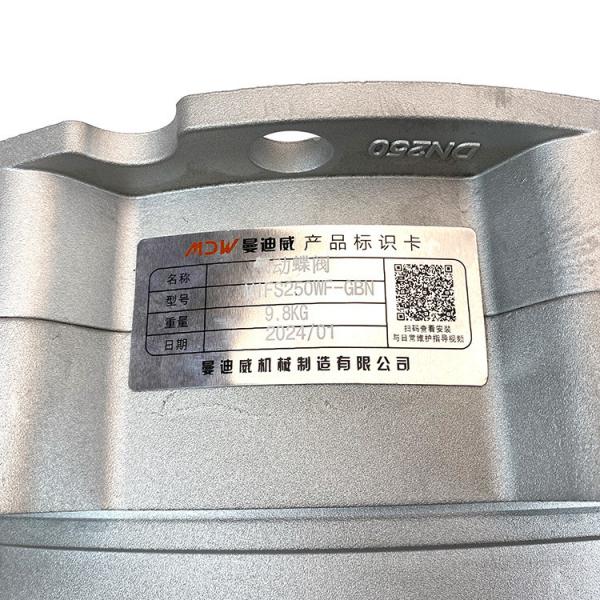

Valve body

High-pressure aluminum alloy die-cast bodies

Valve Stem

High Strength stem provides maximum strength for high torque applications.

VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials

Application:

construction, chemical industry, water supply, petroleum, light and heavy industry, electric power, shipping

VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials

Packing & Delivery

VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile:

VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials

Hunan Jiancheng Technology Co., Ltd. is an industry and trade integrated enterprise focusing on the R&D and manufacturing of Mechanical Components and Spares for Batching Plants and Crushers.

Mandiwi (MDW), as an independent brand under Jiancheng Technology, has established an product R&D laborary based on studying big data on the actual working conditions of global concrete machinery and equipment, now providing more cost-effective, high-quality and longer service life products and spares, including Valves, Level Monitoring Components, Vibrators, Dust Filters and Flow Aids, Screw Conveyors and Parts, Concrete Mixers, Wearing Parts, etc.

After years of development, the MDW has built in-depth cooperation relationships with many internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, etc. And our products have exported to Europe, North America, South Asia, West Asia, Middle East, Africa and other countries and regions.

‘Focus, Simplicity, Efficiency and Reliability ’ are the design concepts that the MDW brand has always adhered to since its establishment.

‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.

VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials

Our Office (Working Time):

VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials

Meeting Room:

VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials

Certifications:

ISO9001, ISO14001, CE, PATENT, ETC

VFS Series DN250 Pneumatic Drive Butterfly Valve for Powdery and Granular Materials

Why Choose Us:

Experienced in this industry for many years,

As top 5 supplier in the industry

Professional Team (R&D, Marketing, Service)

5000square meters central warehouse
