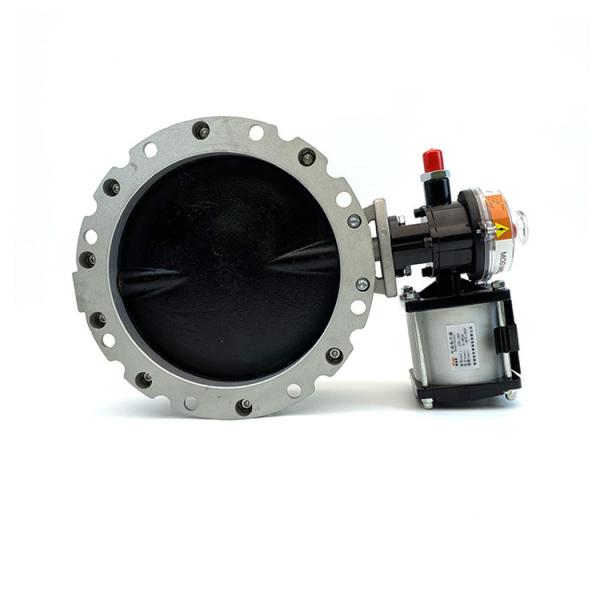

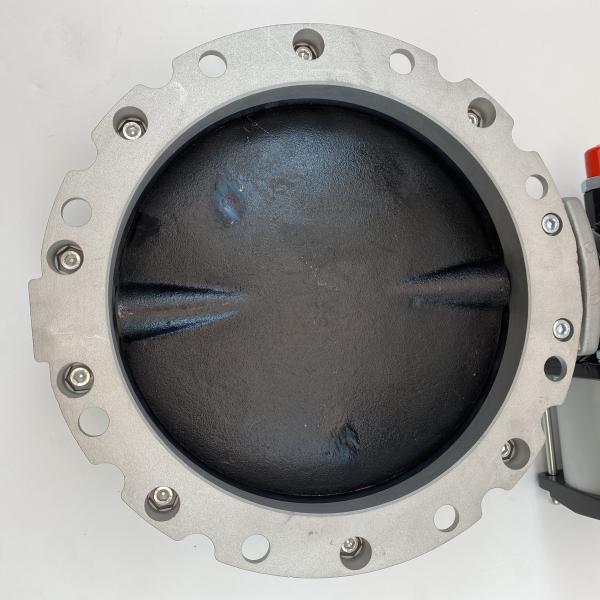

Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator
Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator
Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator
Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator
Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator
Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator
Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator
Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator
Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator
Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator
Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator
Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator
Specifications
Place of Origin :
China
Price :
$310.00/pieces 1-9 pieces
Payment Terms :
T/T, LC, Trade assurance Order, Western Union
Brand Name :
MDW, SICOMA, WAM
Model Number :
DN150~DN400
MOQ :
5piece
Delivery Time :
10-15 working days
Packaging Details :
1pcs per corrugated carton, with foam protection
Application :
General
Port Size :
300mm
Power :
Pneumatic
Temperature of Media :
Low Temperature, Normal Temperature
Structure :
BUTTERFLY
Customized support :
OEM, ODM, OBM, Software reengineering
Product name :
Pneumatic Actuator Powder Butterfly Valves DN300
DN(Nominal Diameter) :
100mm(4")~400mm(16")
Driving Mode :
Pneumatic , or manual
Sealing Material :
NBR, EPDM
Suitable media :
Powder, Water, Cement, Sewage, Admixture liquid,etc
Working Pressure :
1.0-1.6Mpa (10-25bar)
Body Material :
Aluminium Alloy
Connection :
Flange
Working Temperature :
-20℃ ~+80℃
Disc Material :
Stainless Steel, Ductile Iron
Description

Products Description:

Mandiwi VFS pneumatic powder butterfly valves consist of two high-pressure aluminum alloy die-cast semi-bodies, a cast iron or stainless steel swivel disc, and a pre-stressed elastomer seal; with the solenoid valve and cylinder connected to the pneumatic conveying pipe, are fitted beneath hoppers, bins, silos, screw or other type conveyors.

The durability test of opening and closing is more than 100,000 times.

We are certified supplier of Global Fortune 500, such as Sany Group, Zoomlion, etc.

Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator

Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator

Relisable Sealing Performance

Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator

With Solenoid Valves, Pneumatic actuated.

Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator

Different sizes styles available.

DN150, DN100, DN200, DN250, DN300, DN350, DN400, ETC

Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator

Feature and Advantage of the valve:

1) Valve Plate

Disc in cast iron, or stainless steel. Adopt frame structure, high strength, good toughness, large flow area, small flow resistance

2) Reliable Sealing

Soft sealing material, reliable sealing performance.

3) Valve body

High-pressure aluminum alloy die-cast bodies,

4) Valve Stem

High Strength stem provides maximum strength for high torque applications.

Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator

Product packaging

Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator

Company Profile

Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator

Hunan Jiancheng Technology Co., Ltd. is an industry and trade integrated enterprise focusing on the R&D and manufacturing of Mechanical Components and Spares for Batching Plants.

Mandiwi (MDW), as an independent brand under Jiancheng Technology, has established an product R&D laborary based on studying big data on the actual working conditions of global concrete machinery and equipment, now providing more cost-effective, high-quality and longer service life products and spares, including Valves, Level Monitoring Components, Vibrators, Dust Filters and Flow Aids, Screw Conveyors and Parts, Concrete Mixers, etc.

After years of development, the MDW has built in-depth cooperation relationships with many internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, etc. And our products have exported to Europe, North America, South Asia, West Asia, Middle East, Africa and other countries and regions.

‘Focus, Simplicity, Efficiency and Reliability ’ are the design concepts that the MDW brand has always adhered to since its establishment.

‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.

Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator

Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator

Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator

Why Choose Us

1. One-Stop Deal in Bulk Solids Handling & Processing Equipment

2. Comprehensive Product Range
3. Industrial Quality and Fast-delivery
4. Excellent Price-performance Ratio
5. the Ideal Choice for Project Engineers
6. ISO9001 and ISO14001 Certified
7. Offering Customers Professional Advice, Smooth Order Management and ‘Round the Clock’ Spares Service.
8. Certified Supplier of Famous Enterprises, such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, and Xinzhu Group.

Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator

Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator

Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator

Low Temperature Environments DN300 Powder Butterfly Valves with Pneumatic Actuator
