Brass Polished Chrome Kitchen Sink Water Faucet with Two Cross Handles for Home
Quick Detail:
Description:
*Single hole installation, archaize of Europe type, cross quick-open handle, independent switch.
*High purity brass main body,lead free.
*Water pipe can be rotated 360 °.
*Bubbler in outlet makes the stream more smoothly.
*Ceramic cartridge, Quality guarantee time:5 years no leakage.
Applications:
Kitchen faucet, commercial faucet, home faucet, household faucet, industrial faucet etc.
Specifications:
Material: | Brass main body and zinc alloy handle |
Brass content: | 59% |
Cartridge: | Ceramic cartridge, Hain-Yo brand |
Surface treatment: | Chrome-plated, other plating available, including brush nickle, red bronze, antique brass, etc. |
The thickness of plating: | 8~12um |
Salt Spray Testing: | General plating: 24hours/Acid;120hours/neutral Acid Plating: 48hours/Acid;240hours/neutral |
Water Pressure Testing: | 0.05-0.9MPA |
Cartridge Life time: | 500,000 cycles |
Quality Guarantee: | 5 years Quality Guarantee |
Drawing: | Please contact us to get |
Hardware needed for mounting: | Along with the faucet |
A.I.: | Along with box packing |
Service conditions:
1)The working pressure of the products is 0.05MPa-0.9MPa
2)The temperature is no more than 85° when supply hot water.
3)Don't use vapor when supply hot water.
4)The working temperature is more than 0°
5)The suitable dimension of the sink hole is ø30mm-ø34mm

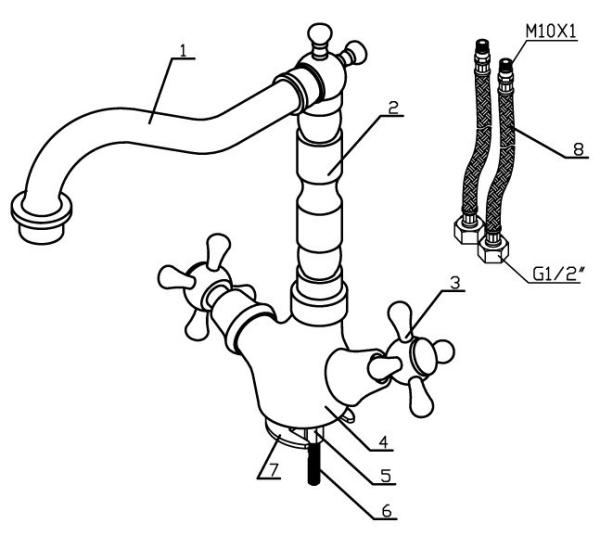

No | Part Name | QTY | Material |
1 | Spout | 1 | Brass |
2 | Stand column | 1 | Brass |
3 | Handle | 1 | Brass |
4 | Main body | 1 | Brass |
5 | Fixed nut | 1 | Brass |
6 | Fixed screw | 1 | Brass |
7 | Gasket | 1 | Stainless steel |
8 | Flexible hose | 2 | Stainless steel |
Competitive Advantage:
Products dimension, electroplating color, and color box printing pattern are all customized. We can do OEM according to customers’ design drawing, further
more, we can also do ODM base on customers’ requirements in actual projects
