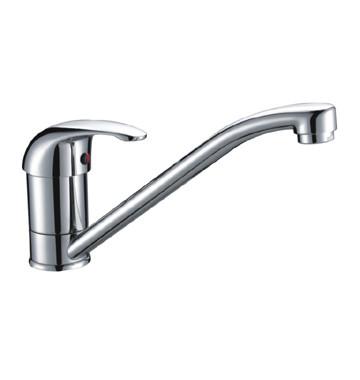

Modern Chrome Kitchen Sink Water Faucet Ceramic / Hot And Cold kitchen Faucets HN-5C01
Quick Detail:
Description:
*Single hole installation, unique shape of the spout, flat quick-open handle.
*automatic mix cartridge .
*High purity brass main body,
*Water pipe can be rotated 360 °.
*Bubbler in outlet makes the stream more smooth,
*Ceramic cartridge, Quality guarantee time:5 years no leakage.
Applications:
Kitchen faucets, home faucets, household faucets, industrial faucets etc.
Specifications:
Material: | #59 Brass |
Cartridge: | Ceramic cartridge, Hain-Yo brand |
Surface treatment: | bronze |
The thickness of plating: | 8~12um |
Salt Spray Testing: | General plating: 24hours/Acid;120hours/neutral Acid Plating: 48hours/Acid;240hours/neutral |
Water Pressure Testing: | 0.05-0.9MPA |
Cartridge Life time: | 500,000 cycles |
Quality Guarantee: | 5 years Quality Guarantee |
Drawing: | Please contact us to get |
Hardware needed for mounting: | Along with the faucet |
A.I.: | Along with box packing |
Competitive Advantage:
Service conditions:
1)The working pressure of the products is 0.05MPa-0.9MPa
2)The temperature is no more than 85° when supply hot water.
3)Don't use vapor when supply hot water.
4)The working temperature is more than 0°
5)The suitable dimension of the sink hole is ø33mm-ø38mm

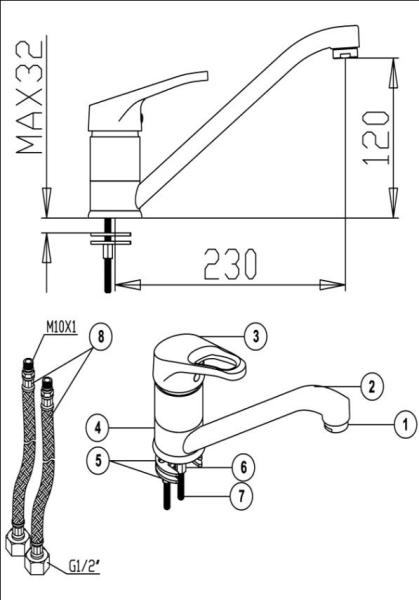

No | Part Name | QTY | Material |
1 | Aerator | 1 | Brass chrome plated |
2 | Spout | 1 | Brass chrome plated |
3 | Handle | 1 | Zinc alloy chrome plated |
4 | Valve body | 1 | Brass chrome plated |
5 | Gasket | 2 | Rubber & Brass |
6 | Fixed nut | 2 | Brass |
7 | Fixed screw | 2 | Brass |
8 | Stainless steel hose | 2 | Stainless steel |
