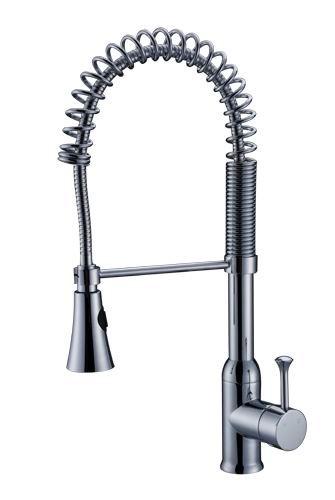

Commercial One Handle Brass Kitchen Sink Water Faucet / Deck Mounted Chrome Mixer Taps HN-4C27
Quick Detail:
Description:

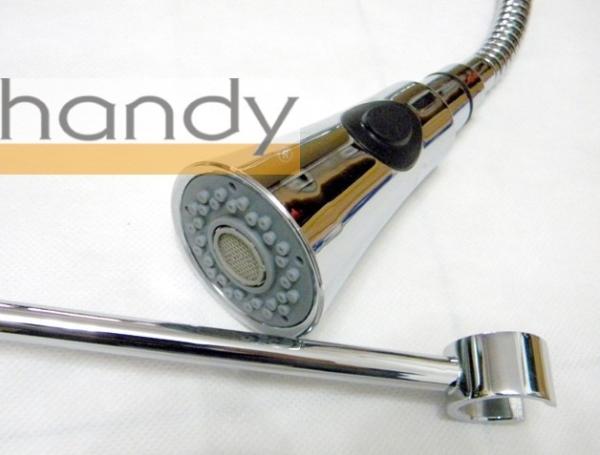

* Single hole installation, suitable for sink, automatic mix cartridge, special button on Spray-head,
* supply two kinds of water(bubble water and shower water) ,rotate water nozzle to clean tables conveniently.
* high purity brass main body, Ceramic cartridge,
* Quality guarantee time:5 years no leakage.
Applications:
Bathtub faucet, commercial faucet, home faucet, household faucet, industrial faucet etc.
Specifications:
Material: | Brass main body and zinc alloy handle |
Brass content: | 59% |
Cartridge: | Ceramic cartridge, Hain-Yo brand |
Surface treatment: | Chrome-plated, other plating available, including brush nickle, red bronze, antique brass, etc. |
The thickness of plating: | 8~12um |
Salt Spray Testing: | General plating: 24hours/Acid;120hours/neutral Acid Plating: 48hours/Acid;240hours/neutral |
Water Pressure Testing: | 0.05-0.9MPA |
Cartridge Life time: | 500,000 cycles |
Quality Guarantee: | 5 years Quality Guarantee |
Drawing: | Please contact us to get |
Hardware needed for mounting: | Along with the faucet |
A.I.: | Along with box packing |
Competitive Advantage:
Service conditions:
1)The working pressure of the products is 0.05MPa-0.9MPa
2)The temperature is no more than 85° when supply hot water.
3)Don't use vapor when supply hot water.
4)Please don't connect the cold and hot pipe inversely
5)The working temperature is more than 0°
6)The suitable dimension of the sink hole is ø35mm-ø38mm

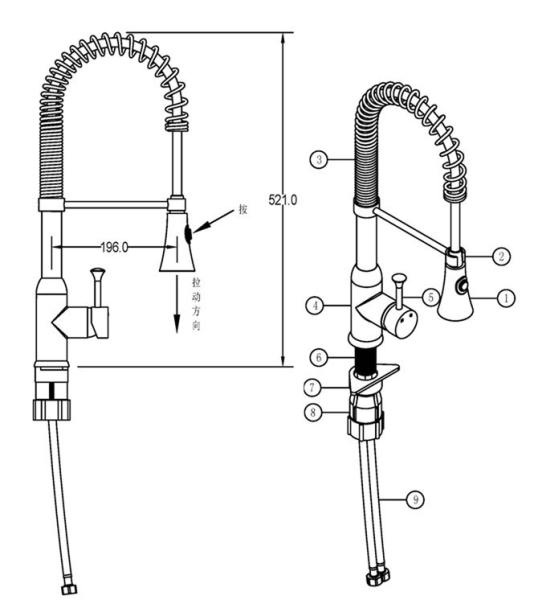

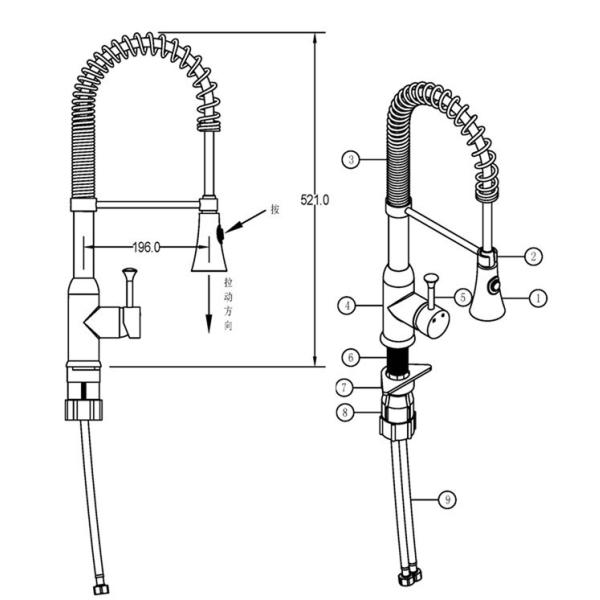

No | Part Name | QTY | Material |
1 | Spray-head | 1 | Engineering plastics chrome plated |
2 | Spring | 1 | Stainless steel chrome plated |
3 | Permanent Seat | 1 | Brass chrome plated |
4 | Main body | 1 | Brass chrome plated |
5 | Handle | 1 | Zinc alloy chrome plated |
6 | Base pin | 1 | Brass |
7 | Locating sleeve | 1 | Engineering plastics |
8 | Fixed nut | 1 | Engineering plastics |
9 | Stainless steel hose | 2 | Stainless steel |
