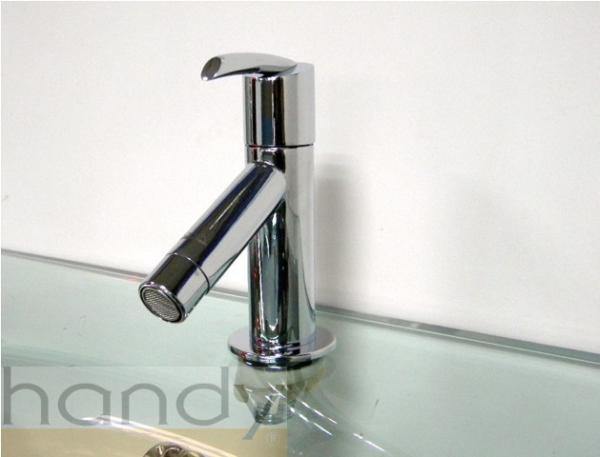

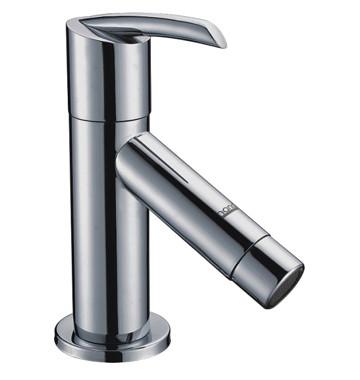

Contemporary Deck Mounted Single Cold Water Taps / Single Lever Basin Faucets HN-4A38
Quick Details
Description:
*Suitable for under counter basin or mop pool installation.,
*Cylinder main body. ivory rotating handle.
*Cartridge cold only.
*High purity brass main body,(#59 brass)

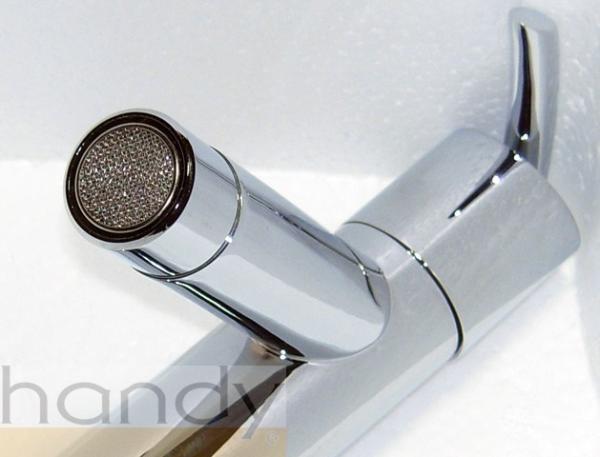

*Bubbler in outlet makes the stream more smooth,
*Ceramic cartridge, Quality guarantee time:5 years no leakage.
Service conditions:
1)The working pressure of the products is 0.05MPa-0.9MPa
2)The temperature is no more than 85° when supply hot water.
3)Don't use vapor when supply hot water.
4)The working temperature is more than 0°
5)The suitable dimension of the sink hole is ø28mm-ø34mm

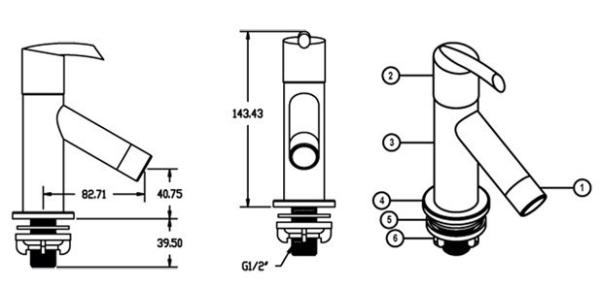

No | Part Name | QTY | Material |
1 | Wave | 1 | Brass chrome plated |
2 | Handle | 1 | Zinc alloy chrome plated |
3 | Valve body | 1 | Brass chrome plated |
4 | Escutcheon | 1 | Brass chrome plated |
5 | Gasket | 1 | Rubber |
6 | Nut | 1 | Engineering plastics |
Applications:
Wash basin faucets, Chain hotel faucets, commercial faucet, home faucets, household faucets etc.
Specifications:
Material: | #59-1Brass main body and zinc alloy handle |
Cartridge: | Hain-Yo Ceramic cartridge, Guarantee 5 years no leakage |
Surface treatment: | Chrome-plated |
The thickness of plating: | 8~12um |
Salt Spray Testing: | General plating: 24hours/Acid;120hours/neutral Acid Plating: 48hours/Acid;240hours/neutral |
Water Pressure Testing: | 0.05-0.9MPA |
Cartridge Life time: | 500,000 cycles |
Quality Guarantee: | 5 years Quality Guarantee |
Drawing: | Please contact us to get |
Hardware needed for mounting: | Along with the faucet |
A.I.: | Along with box packing |
