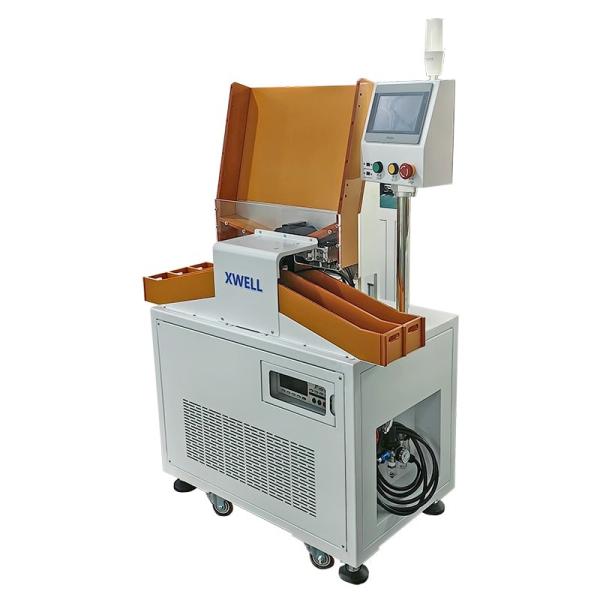

5 Channels Lithium Battery IR Voltage Testing Sorter For Cylindrical Cell Pack Assembly
5 Channels Lithium Battery IR Voltage Testing Sorter For Cylindrical Cell Pack Assembly
Specifications
Brand Name :
XWELL
Model Number :
MD-BS11
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
USD 3000 - 7900 / pcs
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100 pcs per month
Delivery Time :
15-20 days
Packaging Details :
Wooden box
Machinery Test Report :
Provided
Marketing Type :
Hot Product
Internal resistance tester :
HK3561 or HIOKI3561
Air compressor :
Optional
After Warranty Service :
Online support
Battery Types :
18650(other sizes available)
Receiving channel :
4 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value.
Test parameters :
AC internal resistance, DC voltage
AI.Set function :
Intelligent one-button setting, specially designed for new functions of battery pack.
Size :
L960mm*W540mm*H1350mm
Description

5 Channels Lithium Battery IR Voltage Testing Sorter Sorting Machine For Cylindrical Cell Pack Assembly


Product Description

The 5/6/9/10/11/13/20/22 channel battery sorter of cylindrical battery automatic sorter is used for automatic sorting of voltage and internal resistance of 18650/21700/26650/32650 cylindrical cells. It can also separate voltage or internal resistance separately. This test and sorting is composed of PLC control + PC industrial computer, PLC control AC servo motor, stepping motor and cylinder to complete sorting function, PC is responsible for data acquisition and processing, as well as data preservation. The number of finished cylindrical cores sorted is about 4500 per hour. The mechanical structure design is simple and generous, the system test performance is stable, the quality is first-class, is currently a high cost-effective cylindrical battery sorting equipment in the market.

We can provide 5-22 channel battery sorter according to your request.

Advantages

1. Stable control system

2. High configuration regulator

3. High Precision Work Procedure

4. High cost performance ratio of products

Product Features

Product name Auto sorting machine
Model No. MD-BS11
Voltage Supply single-phase ~220V±10%/50Hz±10%, power <800W
Battery Types 18650(other sizes available)
Receiving channel 4 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value.
Test parameters AC internal resistance, DC voltage
Internal resistance test Test range: 80mΩ,
Accuracy: ±0.5%rdg
Display resolution: 0.01mΩ
Voltage test Test range: 8V
Accuracy :±0.015%rdg,
Display resolution: 0.01mV
Sorting speed 80ppm
AI.Set function Intelligent one-button setting, specially designed for new functions of battery pack.
Size L960mm*W540mm*H1350mm
Weight <150Kg

Sorting machine structure

5 Channels Lithium Battery IR Voltage Testing Sorter For Cylindrical Cell Pack Assembly
