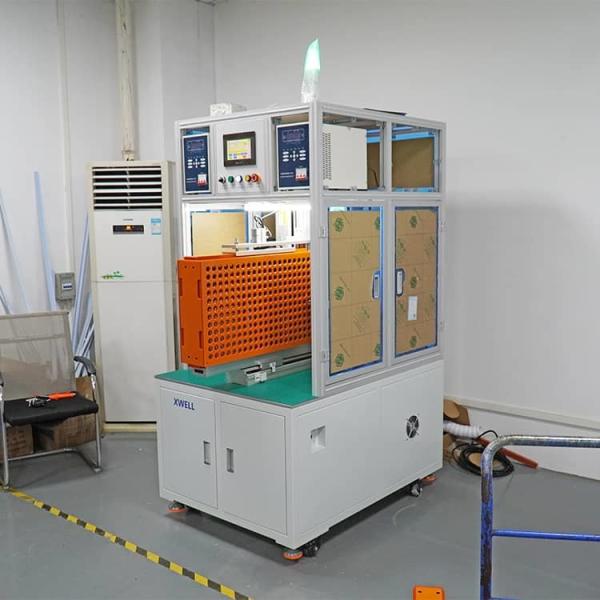

18650 26650 32650 Cylindrical Battery Pack Welding Machine Double Sides CNC Spot Welder
18650 26650 32650 Cylindrical Battery Pack Welding Machine Double Sides CNC Spot Welder
Specifications
Brand Name :
XWELL
Model Number :
MD-ADW
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
USD 6000 - 9000 / pcs
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100pcs per month
Delivery Time :
10-15 days
Packaging Details :
Wooden box
Warranty :
1 Year
Key Selling Points :
Automatic
Pack size :
X direction: 26; Y direction: 26
Welding current :
5000A 8000A
Voltage :
220V/380V(AC)
Power :
4000 W
Description

Automatic 18650 26650 32650 Cylindrical Battery Pack Double Sides CNC Spot Welding Machine

Application

With the corresponding fixture, MD-ASW can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.

customized for a variety of cylindrical battery, square battery, button battery and etc.

Feature
1. Support breakpoint start, automatic start, and manual start.
2. Cold solder joint and sealing off alarm.
3. Easy program, support matrix, array and point program, can store 99 group parameters.
4. Welding needle abrasion alarm.
5. Build-in welding current monitor, can display real time welding current.
6. Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other lithium battery packs spot welding.
7. High productivity: 0.5s/spot

Performance characteristics:

1, welding voltage locking technology to prevent network voltage fluctuations affect welding current.

2, the welding pulse width is adjustable, the welding splash is small, the welding spot does not change color.

3, with two sections of current detection and comparison function, abnormal current sound and light alarm, effectively prevent the appearance of false welding phenomenon.

4, with fault self-diagnosis function, display the corresponding fault point, easy maintenance.

5, the use of motion control card embedded programming module, only need to calibrate a starting point coordinates, input X, Y axis number, spacing, you can automatically generate the welding head movement trajectory and save in the system file, programming is simple and easy to learn.

6, in the system can store 99 groups of welding procedures and parameters, replace the product only to adjust the energy, call out the program. The welding head can be pneumatic, electric and rotary.

Battery Spot Welding Machine Specification

Model No. MD-AW
Y-axis travel 500mm (customizable)
X-axis travel 350mm (customizable)
Max spot welding speed 0.35s/point (1 hour:about 2800 units18650 cells)
Motor drive speed 1000mm/S
Max load electric cores X direction: 26; Y direction: 26
Capable file group storage 99 groups
Operating system embedded system human-machine interface
Transmission mode Taiwan precision screw with guide rail
Driving mode stepper servo motor
Repeat positioning accuracy ±0.02mm
Dimensions L: 900mm, W: 900mm, H: 1750mm
Power 4000W
Machine weight 200KG
Max bearing weight of Y-axis 35KG
Input power supply double-phase AC 220V/50Hz AC380V 3 phase
Air Source 0.4-0.6 Mpa

Double Side Spot Welding Machine Details

18650 26650 32650 Cylindrical Battery Pack Welding Machine Double Sides CNC Spot Welder

18650 26650 32650 Cylindrical Battery Pack Welding Machine Double Sides CNC Spot Welder
