Automatic cylindrical cell sorting battery tester 2 channels 21700 26650 Cylindrical 18650 battery cell sorting machine

Product Description

The Battery Sorting Machine is mainly used for internal-resistance(IR) and voltage testing, and sort the cells to different channels according to the setting.
Why need sorting machine?
When the batteries arrive at the battery pack factory, even the same batch of batteries may have different parameters(IR, Voltage), especially when the batteries come from some infeasible suppliers. When assemble the battery into a battery pack, we hope that the battery of the same battery pack has the same parameters(IR, Voltage) as much as possible, so that the performance of the battery pack will be better and more balanced.
How sorting machine works?
The battery sorting machine is composed of mechanical structure, feeding system, test system, control system, etc. First, put the battery into the bin, the battery roller drives the battery to the test position, the test probe contacts the positive and negative poles of the battery, the tester reads the internal resistance and voltage of the battery, the detector transmits the test results to the controller, and the controller puts the batteries with different parameters into different channels according to the settings.

Product Features

1) Compact and reasonable equipment structure, beautiful appearance, small volume. Simple equipment operation, workers can easily learning.
2) The equipment is controlled by PLC and PC. The PLC is responsible for battery feeding, battery handling and battery
sorting. The PC is responsible for battery testing data collection, voltage internal resistance rating, high work efficiency,
saving manpower, good product performance.
3) Equipment materials are made of high quality thick cold-rolled sheet metal, aluminumframe.
4) The device is equipped with universal movable casters, the device can easily move when it is displaced.

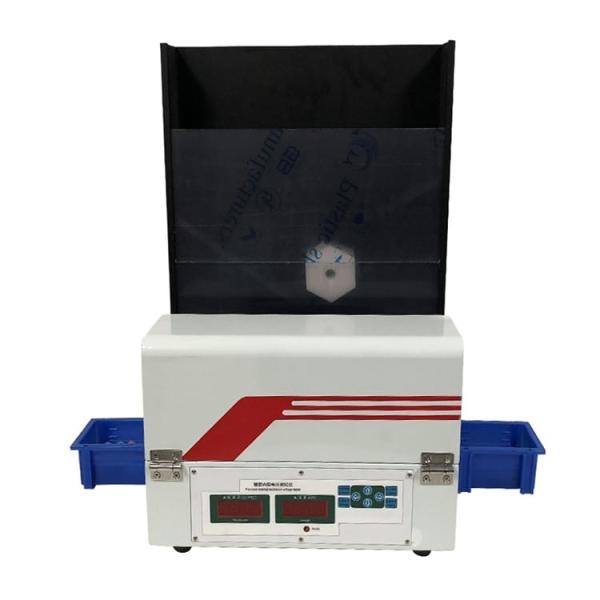

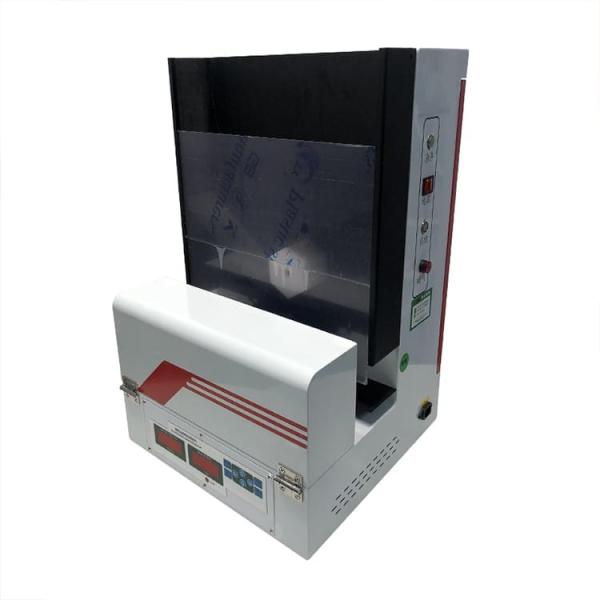

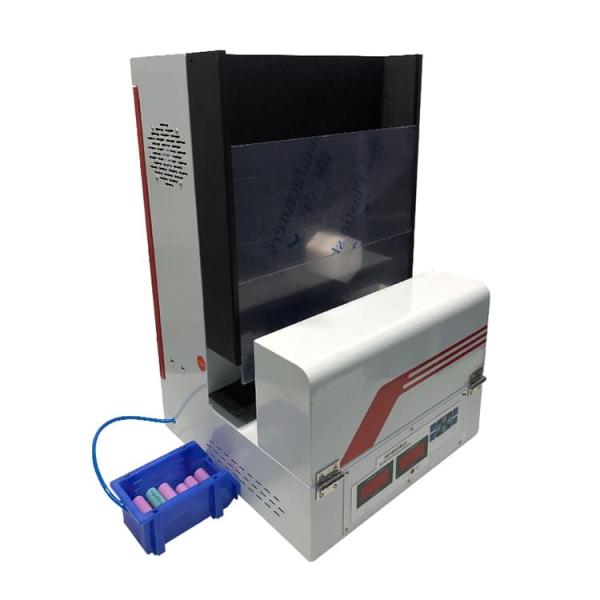

2 channel sorting machine details
