500A Manual Service Disconnect Electric Vehicle MSD Touch-Proof
500A Manual Service Disconnect Electric Vehicle MSD Touch-Proof
Specifications
Brand Name :
Neopower
Certification :
USCAR/LV215/ RoHs
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable according to Quantities
Payment Terms :
Western Union, MoneyGram
Supply Ability :
50000 per day
Delivery Time :
3~7 days
Packaging Details :
Standard Export Carton Box
Rated Current :
500A
Rated Voltage :
1500V DC
Insulation Resistance :
5000MΩ MIN（ DRY) 200MΩ MIN（RH 95%)
Dielectric Withstanding Voltage :
6800V AC
IP Rating :
IP67B
Operation Temperature :
-40 ℃ ~+80 ℃
Salt Spray Resistance :
144H
HVIL :
option
Shell :
plastic
Description

500A Manual Service Disconnect Electric Vehicle MSD

Features:

  • Secondary lock function

  • Poka-yoke

  • HVIL

  • Touch-proof

  • 360°shielding

Application:

  • Motor controller
  • Lithium battery, lead-acid battery
  • Driving system
  • charging system

Specifications:

  • Rated current: 500A
  • Rated voltage: 1500V DC
  • Insulation resistance: 5000MΩ MIN(DRY)200MΩ MIN(RH 95%)
  • Dielectric withstanding voltage:6800V AC
  • Temperature Range: -40~+80 ℃
  • IP Rating: IP67B

Parameters:

Rated Current: 500A MAX with fuse
Rated Voltage:

1500V DC
Insulation Resistance: 5000MΩ MIN(DRY)200MΩ MIN(RH 95%)
Dielectric Withstanding Voltage: 6800V AC
Temperature Range: -40~+80℃
IP Rating: IP67B
Application: Battery pack

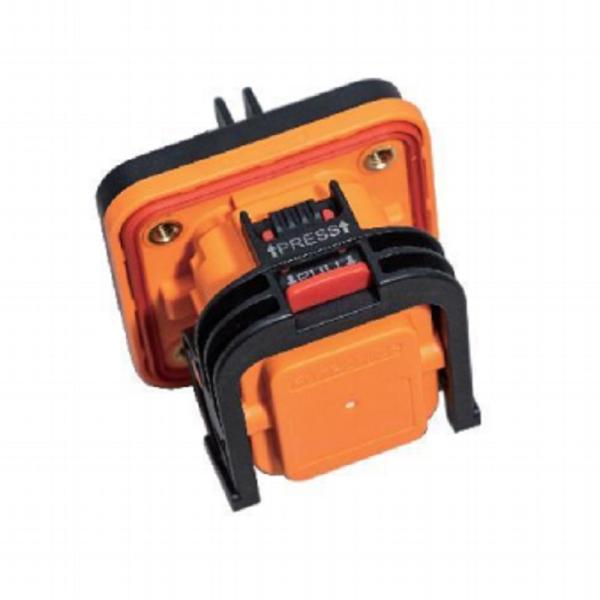

Product Pictures:

500A Manual Service Disconnect Electric Vehicle MSD Touch-Proof

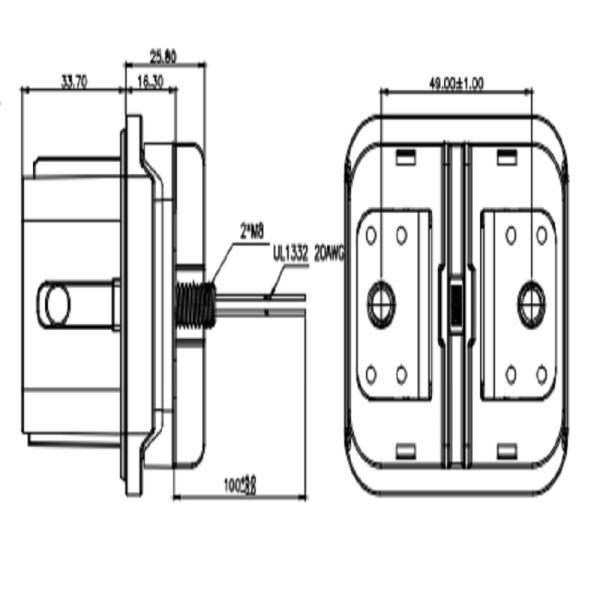

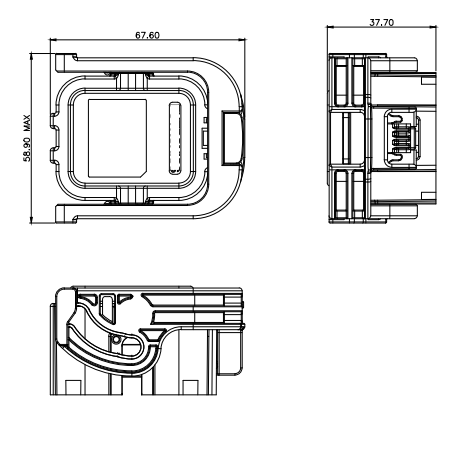

Drawings:

500A Manual Service Disconnect Electric Vehicle MSD Touch-Proof500A Manual Service Disconnect Electric Vehicle MSD Touch-Proof

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

500A Manual Service Disconnect Electric Vehicle MSD Touch-Proof

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

500A Manual Service Disconnect Electric Vehicle MSD Touch-Proof500A Manual Service Disconnect Electric Vehicle MSD Touch-Proof500A Manual Service Disconnect Electric Vehicle MSD Touch-Proof500A Manual Service Disconnect Electric Vehicle MSD Touch-Proof
