USCAR IP67 High Voltage Battery Connector Electrical Motor HVIL Plug / Socket
USCAR IP67 High Voltage Battery Connector Electrical Motor HVIL Plug / Socket
USCAR IP67 High Voltage Battery Connector Electrical Motor HVIL Plug / Socket
USCAR IP67 High Voltage Battery Connector Electrical Motor HVIL Plug / Socket
Specifications
Brand Name :
Neopower
Certification :
CE IEC RoHs
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable according to Quantities
Payment Terms :
Western Union, MoneyGram
Supply Ability :
50000 per day
Delivery Time :
3~7 days
Packaging Details :
Standard Export Carton Box
Rated Current :
100A/125A/150A
Insulation Resistance :
5000mΩ MIN(drying) 200mΩ MIN(RH 95%)
Dielectric Withstanding Voltage :
3000V AC
Wire Range :
16 mm2~35mm2
IP Rating :
IP67B
Operation Temperature :
-40 ℃ ~+125 ℃
Salt Spray Resistance :
144H (mating state)
HVIL :
Yes
Shell :
Plastic
Angle :
Straight Angle
Description

USCAR IP67 Waterproof High-voltage Battery Electrical Motor HVIL Plug Socket

Part No:

Features:

  • Secondary lock function

  • Cable range: 16~35mm2

  • Poka-yoke

  • HVIL

  • Touch-proof

  • 360°shielding

Application:

  • Motor controller
  • Lithium battery, lead-acid battery
  • Driving system
  • charging system

Specifications:

  • Rated current: 100A/125A/150A
  • Rated voltage:1000V
  • Insulation resistance: 5000mΩ MIN(drying)200mΩ MIN(RH 95%)
  • Dielectric withstanding voltage:3000V AC
  • Temperature Range: -40~+125 ℃
  • IP Rating: IP67B

Parameters:

Rated Current: 100A/125A/150A
Rated Voltage:

1000V DC
Insulation Resistance: 5000mΩ MIN(drying)200mΩ MIN(RH 95%)
Dielectric Withstanding Voltage: 3000V AC
Temperature Range: -40~+125 ℃
IP Rating: IP67B
Application: Motor controller, battery, driving system, charging system

Product Pictures:

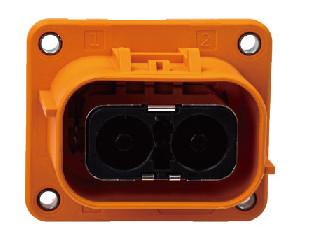

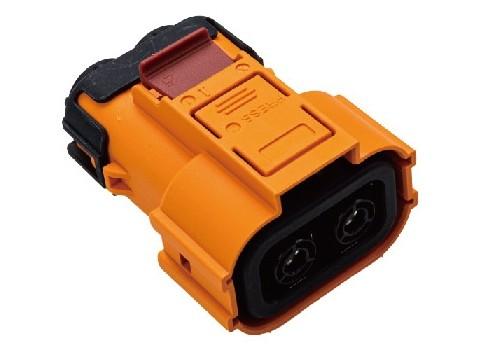

USCAR IP67 High Voltage Battery Connector Electrical Motor HVIL Plug / Socket

Drawings:

USCAR IP67 High Voltage Battery Connector Electrical Motor HVIL Plug / SocketUSCAR IP67 High Voltage Battery Connector Electrical Motor HVIL Plug / Socket

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

USCAR IP67 High Voltage Battery Connector Electrical Motor HVIL Plug / Socket

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

USCAR IP67 High Voltage Battery Connector Electrical Motor HVIL Plug / SocketUSCAR IP67 High Voltage Battery Connector Electrical Motor HVIL Plug / SocketUSCAR IP67 High Voltage Battery Connector Electrical Motor HVIL Plug / SocketUSCAR IP67 High Voltage Battery Connector Electrical Motor HVIL Plug / Socket
