IEC Approved 20A-80A 3 Way Connector for Photovoltaic Battery
IEC Approved 20A-80A 3 Way Connector for Photovoltaic Battery
Specifications
Brand Name :
Neopower
Certification :
CE IEC RoHs
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable according to Quantities
Payment Terms :
Western Union, MoneyGram
Supply Ability :
50000 per day
Delivery Time :
3~7 days
Packaging Details :
Standard Export Carton Box
Rated Current :
20A /30A/ 45A /70A/80A
Insulation Resistance :
5000mΩ MIN(drying) 200mΩ MIN(RH 95%)
Dielectric Withstanding Voltage :
3000V AC
Wire Range :
2.5 mm2~16mm2
IP Rating :
IP67B
Operation Temperature :
-40 ℃ ~+125 ℃
Salt Spray Resistance :
144H (mating state)
HVIL :
Yes
Shell :
Plastic
Angle :
Straight Angle
Description

IEC approved 20a~80A Photovoltaic Battery 3 way Connector

Part No:

Features:

  • Secondary lock function

  • Cable range: 2.5~16mm2

  • Poka-yoke

  • HVIL

  • Touch-proof

  • 360°shielding

Application:

  • Motor controller
  • Lithium battery, lead-acid battery
  • Driving system
  • charging system

Specifications:

  • Rated current: 20A/30A/45A/70A/80A
  • Rated voltage:1000V
  • Insulation resistance: 5000mΩ MIN(drying)200mΩ MIN(RH 95%)
  • Dielectric withstanding voltage:3000V AC
  • Temperature Range: -40~+125 ℃
  • IP Rating: IP67B

Parameters:

Rated Current: 20A/30A/45A/70A/80A
Rated Voltage:

1000V
Insulation Resistance: 5000mΩ MIN(drying)200mΩ MIN(RH 95%)
Dielectric Withstanding Voltage: 3000V AC
Temperature Range: -40~+125 ℃
IP Rating: IP67B
Application: Motor controller, battery, driving system, charging system

Product Pictures:

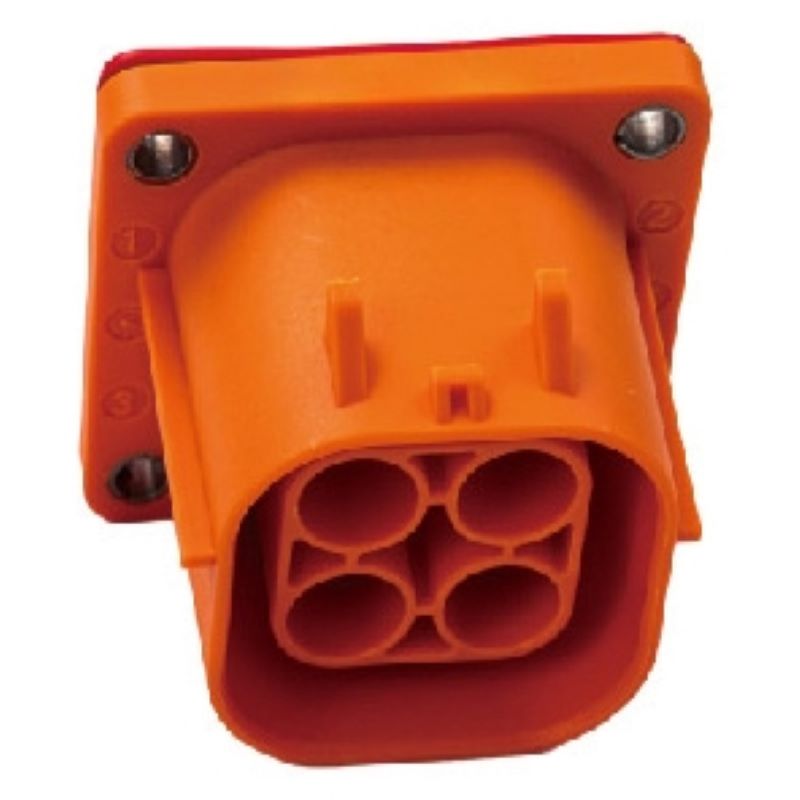

IEC Approved 20A-80A 3 Way Connector for Photovoltaic Battery

Drawings:

IEC Approved 20A-80A 3 Way Connector for Photovoltaic Battery

IEC Approved 20A-80A 3 Way Connector for Photovoltaic Battery

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

IEC Approved 20A-80A 3 Way Connector for Photovoltaic Battery

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

IEC Approved 20A-80A 3 Way Connector for Photovoltaic BatteryIEC Approved 20A-80A 3 Way Connector for Photovoltaic BatteryIEC Approved 20A-80A 3 Way Connector for Photovoltaic BatteryIEC Approved 20A-80A 3 Way Connector for Photovoltaic Battery

Contact:

Contact Person: Vivian Choi

Email: neopowertech@hotmail.com
