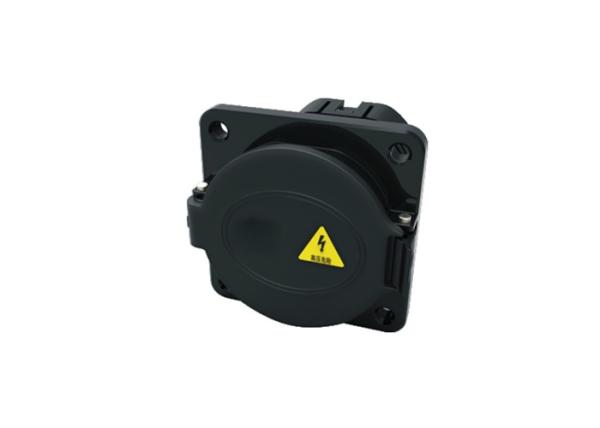

IP55 High Voltage DC1000V Electric Vehicle Charging Sockets Connector
IP55 High Voltage DC1000V Electric Vehicle Charging Sockets Connector
IP55 High Voltage DC1000V Electric Vehicle Charging Sockets Connector
IP55 High Voltage DC1000V Electric Vehicle Charging Sockets Connector
IP55 High Voltage DC1000V Electric Vehicle Charging Sockets Connector
IP55 High Voltage DC1000V Electric Vehicle Charging Sockets Connector
Specifications
Brand Name :
NeoPower
Model Number :
EVS762
Certification :
GB/T20234, 1/3-2015, GB/T 18487,1-2015
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable according to Quantities
Payment Terms :
Western Union, MoneyGram
Supply Ability :
50000 per day
Delivery Time :
3~7 days
Packaging Details :
Standard Export Carton Box
Rated Voltage :
750V DC/1000V DC
Rated Current :
80A/125A/200A/250A
Temperature Control Function :
With
Protection Level: :
IP55 (Mated), IP67 (Outlet)
Type of charge Connector :
electrical vehicle connector, socket
Standard :
GB/T20234, 1/3-2015, GB/T 18487,1-2015
Description

1000V DC High Voltage 250A Current Electric Vehicle EV Charger Socket Connector

Part No.: EVS762

Description:

This product is 750V DC/ 1000V DC high voltage socket, support up to 250A high current, in line with GB20234-2015, GB18487-2015 stanards, used for charging connections of electric vehicle, cars.

Features:

  • Rated Voltage: 750V DC/1000V DC
  • Rated Current: 80A/125A/200A/250A
  • With Temperature Control function
  • Protection Level: IP55 (Mated), IP67 (Outlet)
  • Type of charge connector: Socket, vehicle connector
  • Standard: GB/T20234, 1/3-2015, GB/T 18487,1-2015
  • Customization Acceptable

Technical Paramaters:

Rated Voltage 750V DC/1000V DC
Rated Current 80A/125A/200A/250A
Temperature Control With
Protection Level IP55 (Mated),IP 67 (Outlet)
Type of charger vehicle connector, socket
Standard GB/T20234, 1/3-2015, GB/T 18487,1-2015

Product Pictures:

IP55 High Voltage DC1000V Electric Vehicle Charging Sockets Connector

IP55 High Voltage DC1000V Electric Vehicle Charging Sockets Connector

Drawings:

IP55 High Voltage DC1000V Electric Vehicle Charging Sockets Connector

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.

IP55 High Voltage DC1000V Electric Vehicle Charging Sockets Connector

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

IP55 High Voltage DC1000V Electric Vehicle Charging Sockets ConnectorIP55 High Voltage DC1000V Electric Vehicle Charging Sockets ConnectorIP55 High Voltage DC1000V Electric Vehicle Charging Sockets ConnectorIP55 High Voltage DC1000V Electric Vehicle Charging Sockets Connector
