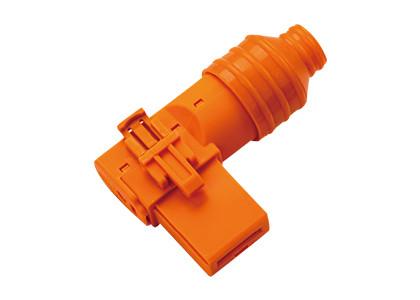

200A Single Pin Flat Right Angle DC1000V Battery Pack Connector USCAR-2 USCAR37 Standard
200A Single Pin Flat Right Angle DC1000V Battery Pack Connector USCAR-2 USCAR37 Standard
200A Single Pin Flat Right Angle DC1000V Battery Pack Connector USCAR-2 USCAR37 Standard
200A Single Pin Flat Right Angle DC1000V Battery Pack Connector USCAR-2 USCAR37 Standard
Specifications
Brand Name :
NeoPower
Model Number :
FSPC220160C
Certification :
TUV CE IEC FCC RoHs GB/T
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable according to Quantities
Payment Terms :
Western Union, MoneyGram
Supply Ability :
50000 per day
Delivery Time :
3~7 days
Packaging Details :
Standard Export Carton Box
Rated Current :
80A/120A/150A/200A
Rated Voltage :
1000V DC
Insulation Resistance :
5000 mΩ Min （Dry） 200 mΩ Min (RH 95%)
Test Voltage :
3000V AC
Minimum Mating Cycles :
500 times
Wire Range :
16mm2~50mm2
Protection Grade :
IP20B
Operation Temperature :
-40℃ ~+85 ℃
Salt Spray Resistance :
48H (mating state)
Standard :
USCAR-2, USCAR37
Description

Single Pin Flat Right Angle Solar Quick Lock EMI Shielded Touch Proof Electrical Scooters Battery Cable Pack Connector

Part No.: FSPC240101T

Description:

This product is energy storage plastic connector, which is applicable for high-voltage, high current connection between components such as energy stoarge cabinet, energy storage station, mobile energy storage vehicles, photovoltaic power station, etc.

Features:

  • Touch Proof
  • Compact Robust Design ,Various Termination Options
  • EMI Shielded
  • Quick Lock and Press-to- Release Design
  • Competitive price from factory with Small MOQ to help you reduce inventories and avoid market risks;
  • Accept OEM & ODM for your customized requirement;

Application:

  • Battery Packs
  • Electrical Motorcycle
  • Electrical Scooters
  • Ebikes

Parameters:

Electrical Performance
Rated Current 80A/120A/150A/200A
Rated Voltage 1000V DC
Insulation Resistance

5000 mΩ Min (Dry)

200 mΩ Min (RH 95%)
Test Voltage 3000V AC
Mechanical Performance
Minimum Mating Cycles 500 times
Wire Range 16mm2~50mm2
Environment Performance
Protection Grade IP20B
Operation Temperature -40 ℃ ~+85 ℃
Salt Spray Resistance 48H (Mating State)
Reference Standard
USCAR-2
USCAR-37

Product Pictures:

200A Single Pin Flat Right Angle DC1000V Battery Pack Connector USCAR-2 USCAR37 Standard200A Single Pin Flat Right Angle DC1000V Battery Pack Connector USCAR-2 USCAR37 Standard

Drawings:

Socket

200A Single Pin Flat Right Angle DC1000V Battery Pack Connector USCAR-2 USCAR37 Standard

Plug

200A Single Pin Flat Right Angle DC1000V Battery Pack Connector USCAR-2 USCAR37 Standard

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.

200A Single Pin Flat Right Angle DC1000V Battery Pack Connector USCAR-2 USCAR37 Standard

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

200A Single Pin Flat Right Angle DC1000V Battery Pack Connector USCAR-2 USCAR37 Standard200A Single Pin Flat Right Angle DC1000V Battery Pack Connector USCAR-2 USCAR37 Standard200A Single Pin Flat Right Angle DC1000V Battery Pack Connector USCAR-2 USCAR37 Standard200A Single Pin Flat Right Angle DC1000V Battery Pack Connector USCAR-2 USCAR37 Standard
