1000V DC 250A 8mm Pin RoHs High Voltage Power Socket Poka Yoke EMI Shielded Connector
1000V DC 250A 8mm Pin RoHs High Voltage Power Socket Poka Yoke EMI Shielded Connector
1000V DC 250A 8mm Pin RoHs High Voltage Power Socket Poka Yoke EMI Shielded Connector
1000V DC 250A 8mm Pin RoHs High Voltage Power Socket Poka Yoke EMI Shielded Connector
Specifications
Brand Name :
NeoPower
Model Number :
FSPC220160C
Certification :
TUV CE IEC FCC RoHs GB/T
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable according to Quantities
Payment Terms :
Western Union, MoneyGram
Supply Ability :
50000 per day
Delivery Time :
3~7 days
Packaging Details :
Standard Export Carton Box
Rated Current :
125A/150A/200A/250A
Rated Voltage :
DC 1500V
Insulation Resistance :
5000 mΩ Min （Dry） 200 mΩ Min (RH 95%)
Test Voltage :
TUV 4260V AC
Minimum Mating Cycles :
500 times
Wire Range :
25mm2~70mm2
Protection Grade :
IP67B
Operation Temperature :
-40℃ ~+125 ℃,TUV -40℃ ~+85 ℃
Salt Spray Resistance :
48H (mating state)
Standard :
USCAR-2, USCAR37, UL 4128, TUV 2pfG 2740-0420
Description

TUV CE RoHs High Current Battery POKA-YOKE Spring Loaded Pogo Pin Storage Station EMI Shielded Connector

Part No.:FSPC220180

Description:

This product is energy storage plastic connector, which is applicable for high-voltage, high current connection between components such as energy stoarge cabinet, energy storage station, mobile energy storage vehicles, photovoltaic power station, etc.

Features:

  • Touch Proof
  • Compact Robust Design ,Various Termination Options
  • EMI Shielded
  • Quick Lock and Press-to- Release Design
  • Competitive price from factory with Small MOQ to help you reduce inventories and avoid market risks;
  • Accept OEM & ODM for your customized requirement;

Application:

  • Battery Packs
  • Electrical Motorcycle
  • Electrical Scooters
  • Ebikes

Parameters:

Electrical Performance
Rated Current 125A/150A/200A/250A
Rated Voltage DC 1500V
Insulation Resistance

5000 mΩ Min (Dry)

200 mΩ Min (RH 95%)
Test Voltage TUV 4260V AC
Mechanical Performance
Minimum Mating Cycles 500 times
Wire Range 25mm2~70mm2
Environment Performance
Protection Grade IP67B
Operation Temperature -40 ℃ ~+125 ℃
Salt Spray Resistance 48H (Mating State)
Reference Standard
USCAR-2
USCAR-37
UL 4128
TUV 2pfG 2740-04.20

Product Pictures:

1000V DC 250A 8mm Pin RoHs High Voltage Power Socket Poka Yoke EMI Shielded Connector1000V DC 250A 8mm Pin RoHs High Voltage Power Socket Poka Yoke EMI Shielded Connector

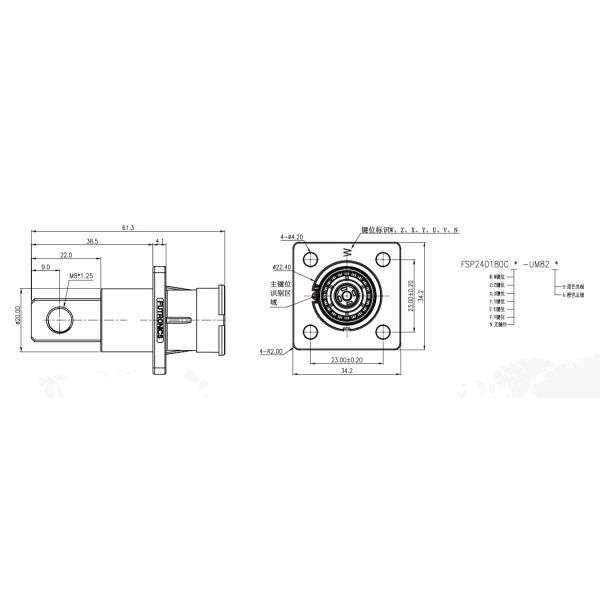

Drawings:

Socket

1000V DC 250A 8mm Pin RoHs High Voltage Power Socket Poka Yoke EMI Shielded Connector

Socket (long)

1000V DC 250A 8mm Pin RoHs High Voltage Power Socket Poka Yoke EMI Shielded Connector

Plug

1000V DC 250A 8mm Pin RoHs High Voltage Power Socket Poka Yoke EMI Shielded Connector

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.

1000V DC 250A 8mm Pin RoHs High Voltage Power Socket Poka Yoke EMI Shielded Connector

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

1000V DC 250A 8mm Pin RoHs High Voltage Power Socket Poka Yoke EMI Shielded Connector1000V DC 250A 8mm Pin RoHs High Voltage Power Socket Poka Yoke EMI Shielded Connector1000V DC 250A 8mm Pin RoHs High Voltage Power Socket Poka Yoke EMI Shielded Connector1000V DC 250A 8mm Pin RoHs High Voltage Power Socket Poka Yoke EMI Shielded Connector
