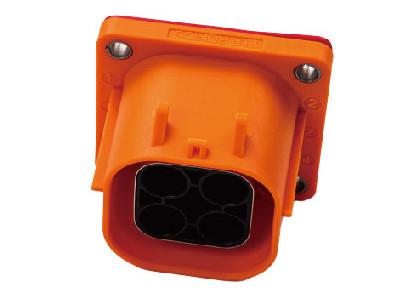

45A 4 Pin Power High Current Connector 500 Times Mechanical Life Touch proof
45A 4 Pin Power High Current Connector 500 Times Mechanical Life Touch proof
45A 4 Pin Power High Current Connector 500 Times Mechanical Life Touch proof
45A 4 Pin Power High Current Connector 500 Times Mechanical Life Touch proof
Specifications
Brand Name :
NeoPower
Model Number :
FHV20*436**01
Certification :
CE IEC FCC RoHs
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable according to Quantities
Payment Terms :
Western Union, MoneyGram
Supply Ability :
50000 per day
Delivery Time :
3~7 days
Packaging Details :
Standard Export Carton Box
Rated Current :
20A/ 30A/ 45A/ 70A
Rated Voltage :
1000V DC
Insulation Resistance :
5000 mΩ Min （Dry） 200 mΩ Min (RH 95%)
Test Voltage :
3000V AC
Minimum Mating Cycles :
500 times
Wire Range :
16 mm2~35mm2
Protection Grade :
IP67B
Operation Temperature :
-40 ℃ ~+125 ℃
Salt Spray Resistance :
144H (mating state)
EMI Shielded :
No
Description

4 Pin Emi Shielded IP67 Waterproof High Power Quick Lock Socket Plug Cable Battery Connector

Part No.: FHV20*436**01

Description:

This product is vehicle mounted high-voltage plastic shell connector, with EMI shielded, suitable for high current/ high voltage application

Features:
  • Touch Proof
  • Compact Robust Design ,Various Termination Options
  • EMI Shielded
  • Quick Lock and Press-to- Release Design
  • Competitive price from factory with Small MOQ to help you reduce inventories and avoid market risks;
  • Accept OEM & ODM for your customized requirement;

Application:

  • Battery Packs
  • High-voltage Distribution Box
  • Motor & Controller
  • Process Control/Automation
  • Heavy Equipment
  • PTC

Parameters:

Electrical Performance
Rated Current 20A/ 30A/ 45A/ 70A
Rated Voltage 1000V DC
Insulation Resistance

5000 mΩ Min (Dry)

200 mΩ Min (RH 95%)
Test Voltage 3000V AC
EMI Shielded Yes
Mechanical Performance
Minimum Mating Cycles 500 times
Wire Range 2.5 mm2~10mm2
Environment Performance
Protection Grade IP67B
Operation Temperature -40 ℃ ~+125 ℃
Salt Spray Resistance 144H (Mating State)
Reference Standard
USCAR-2
USCAR-37
LV-215

Product Pictures:

45A 4 Pin Power High Current Connector 500 Times Mechanical Life Touch proof45A 4 Pin Power High Current Connector 500 Times Mechanical Life Touch proof

Drawings:

Socket

45A 4 Pin Power High Current Connector 500 Times Mechanical Life Touch proof

Plug

45A 4 Pin Power High Current Connector 500 Times Mechanical Life Touch proof

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.

45A 4 Pin Power High Current Connector 500 Times Mechanical Life Touch proof

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

45A 4 Pin Power High Current Connector 500 Times Mechanical Life Touch proof45A 4 Pin Power High Current Connector 500 Times Mechanical Life Touch proof45A 4 Pin Power High Current Connector 500 Times Mechanical Life Touch proof45A 4 Pin Power High Current Connector 500 Times Mechanical Life Touch proof
