RoHs IP6K9K Single Pin 6mm Power Connector 120A Female Plug Socket
RoHs IP6K9K Single Pin 6mm Power Connector 120A Female Plug Socket
RoHs IP6K9K Single Pin 6mm Power Connector 120A Female Plug Socket
RoHs IP6K9K Single Pin 6mm Power Connector 120A Female Plug Socket
Specifications
Brand Name :
Neopower
Model Number :
NPFPP1P6.0
Certification :
CE IEC FCC RoHs
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable according to Quantities
Payment Terms :
Western Union, MoneyGram
Supply Ability :
50000 per day
Delivery Time :
3~7 days
Packaging Details :
Standard Export Carton Box
Number of Pins (Poles)t :
1 pins
Terminal Size :
6mm
Shell Materials :
Plastic
Plug Type :
Straight
CPA :
With
Keyway /Poka-yoke :
A:black, B:Red, C: White, D:Green
Cable Connection Method :
B: Busbar, T: Threaded, C:Crimping
Threaded Hole Size (Busbar & Threaded) :
M5*0.8 thread
EMI Shielded :
Optional
Insulation Resistance :
＞200mΩ
Rated Voltage :
1000VDC/AC
Rated Current :
100A/16mm2, 120A/25mm2
Dielectric Voltage :
3500VAC/6000VDC
Shielded Efficiency :
70dB( 10KHz-5Mhz) 65 dB(5MHz-500MHz)
HVIL :
Optional
Mating Cycle :
≥100 times
Applicable Cable Size :
16mm2, 25mm2
Vibration :
LV215
IP Grade (mated) :
IP 6K9K/IPX8/IPXXD
IP Grade (unmated) :
IPXXB
Touch Proof :
DIN EN60529
Operational Temp. :
-40℃ ~125℃
Application :
Battery Pack, Motor, PDU, Charging Systems, Inverters
Description

1 Pin 6mm Straight Angle HVIL EMI Touch Proof IP Grade Plug Connectors For EV Lithium Battery Packs

Part No.:NPFPP1P6.0

Description:

This product is vehicle mounted high-voltage plastic shell connector, suitable for lithium battery packs for electrical motorcycle, scooter, marine, boat, RV application

Features:
  • Touch Proof
  • Compact Robust Design ,Various Termination Options
  • Non-EMI Shielded
  • Quick Lock and Press-to- Release Design
  • Competitive price from factory with Small MOQ to help you reduce inventories and avoid market risks;
  • Accept OEM & ODM for your customized requirement;

Application:

  • Battery Packs
  • High-voltage Distribution Box
  • Motor & Controller
  • Process Control/Automation
  • Heavy Equipment
  • PTC

Parameters:

Basic Feature
Number of Pins (Poles) 1 pin
Terminal Size 6mm
Shell Materials Plastic
Plug Type Straight
CPA With
Keyway /Poka-yoke A:black, B:Red, C: White, D:Green
Cable Connection Method B: Busbar, T: Threaded, C:Crimping
Threaded Hole Size (Busbar & Threaded) M5*0.8 thread
EMI Shielded Optional
Electrical Characteristics
Insulation Resistance ＞200mΩ
Rated Voltage 1000VDC/AC
Rated Current 100A/ 120A
Dielectric Voltage 3500VAC/6000VDC
Shielded Efficiency 70dB( 10KHz-5Mhz) 65 dB(5MHz-500MHz)
HVIL Optional
Mechanical Characteristics
Mating Cycle ≥100 times
Applicable Cable Size 16mm2, 25mm2
Vibration LV215
IP Grade (mated) IP 6K9K/IPX8/IPXXD
IP Grade (unmated) IPXXB
Touch Proof DIN EN60529
Environmental Characteristics
Operational Temp. -40℃ ~125℃
Other LV215
Application
Battery Pack, Motor, PDU, Charging Systems, Inverters

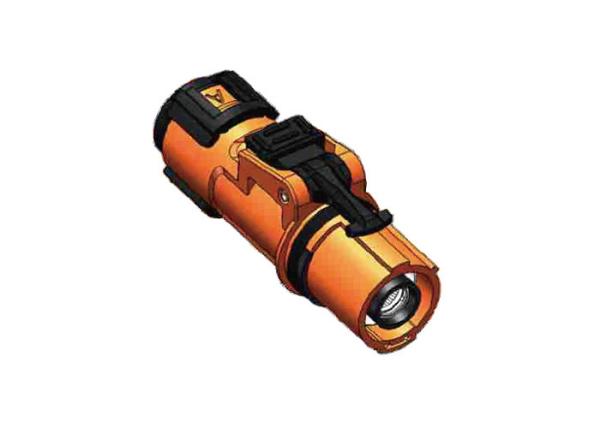

Product Pictures:

RoHs IP6K9K Single Pin 6mm Power Connector 120A Female Plug Socket

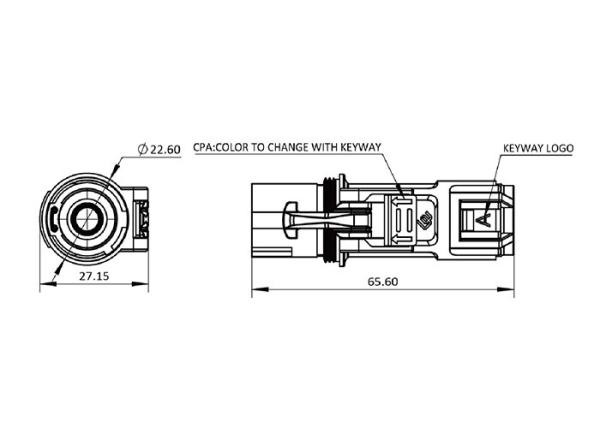

Drawings:

RoHs IP6K9K Single Pin 6mm Power Connector 120A Female Plug Socket

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.

RoHs IP6K9K Single Pin 6mm Power Connector 120A Female Plug Socket

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
