400A Waterproof Battery Connectors , UL94V-0 Electrical Plug Connector
400A Waterproof Battery Connectors , UL94V-0 Electrical Plug Connector
400A Waterproof Battery Connectors , UL94V-0 Electrical Plug Connector
400A Waterproof Battery Connectors , UL94V-0 Electrical Plug Connector
Specifications
Brand Name :
NeoPower
Model Number :
NMSDP
Certification :
CE IEC FCC RoHs
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable according to Quantities
Payment Terms :
Western Union, MoneyGram
Supply Ability :
50000 per day
Delivery Time :
3~7 days
Packaging Details :
Standard Export Carton Box
Receptacle Installation Method :
Rear
CPA :
With
Keyway /Poka-yoke :
With
Flammability :
UL94V-0
EMI Shielded :
Optional
Insulation Resistance :
＞200mΩ
Rated Voltage :
690 VDC/AC
Rated Current :
80A-400A (depends on fuse)
Fuse Brand :
B: Bussmann; S: Sinofuse; C: Cfriend
Shunt :
200A
HVIL :
Optional
Mating Cycle :
≥500 times
Vibration :
LV215
IP Grade (mated) :
IP 6K9K/IPX8/IPXXD
IP Grade (unmated) :
IPXXB (Receptacle Only)
Touch Proof :
DIN EN60529 (Receptacle Only)
Operational Temp. :
-40℃ ~125℃
Application :
Battery Pack, Motor, PDU, Charging Systems
Description

400A Waterproof Battery Connectors , UL94V-0 Electrical Plug Connector

Part No.:NMSDP

Description:

This product is manual service Disconnect connectors

Features:
  • Compact Design, Save Space
  • HVIL optional, highest Safety
  • Unique EMI Shielded Features
  • F1 Class UV Resistance
  • Competitive price from factory with Small MOQ to help you reduce inventories and avoid market risks;
  • Accept OEM & ODM for your customized requirement;

Application:

  • Battery Packs
  • High-voltage Distribution Box
  • Motor & Controller
  • Process Control/Automation
  • Heavy Equipment
  • PTC

Parameters:

Basic Feature
Receptacle Installation Method Rear
CPA With
Keyway /Poka-yoke With
Flammability UL94V-0
EMI Shielded Optional
Electrical Characteristics
Insulation Resistance ＞200mΩ
Rated Voltage 690 VDC/AC
Rated Current 80A-400A (depends on fuse)
Fuse Brand B: Bussmann; S: Sinofuse; C: Cfriend
Shunt 200A
HVIL Optional
Mechanical Characteristics
Mating Cycle ≥500 times
Vibration LV215
IP Grade (mated) IP 6K9K/IPX8/IPXXD
IP Grade (unmated) IPXXB (Receptacle Only)
Touch Proof DIN EN60529 (Receptacle Only)
Environmental Characteristics
Operational Temp. -40℃ ~125℃
Other LV215
Application
Battery Pack, Motor, PDU, Charging Systems

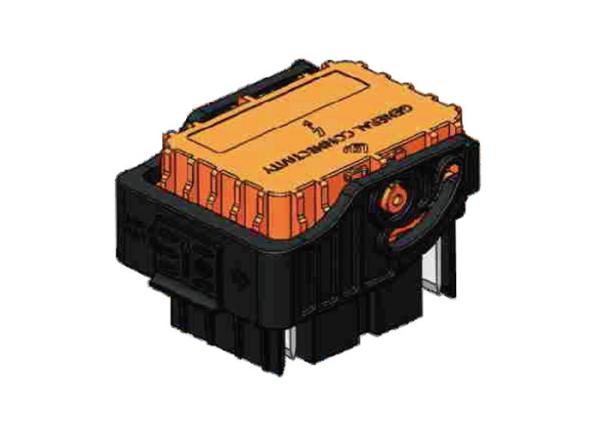

Product Pictures:

400A Waterproof Battery Connectors , UL94V-0 Electrical Plug Connector

Drawings:

400A Waterproof Battery Connectors , UL94V-0 Electrical Plug Connector

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.

400A Waterproof Battery Connectors , UL94V-0 Electrical Plug Connector

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

400A Waterproof Battery Connectors , UL94V-0 Electrical Plug Connector400A Waterproof Battery Connectors , UL94V-0 Electrical Plug Connector400A Waterproof Battery Connectors , UL94V-0 Electrical Plug Connector400A Waterproof Battery Connectors , UL94V-0 Electrical Plug Connector
