IP67 DC Power Single Pin Female Socket Receptacle Connector RoHs Certification
IP67 DC Power Single Pin Female Socket Receptacle Connector RoHs Certification
IP67 DC Power Single Pin Female Socket Receptacle Connector RoHs Certification
IP67 DC Power Single Pin Female Socket Receptacle Connector RoHs Certification
Specifications
Brand Name :
Neopower
Model Number :
NPFPR1P6.0
Certification :
CE IEC FCC RoHs
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable according to Quantities
Payment Terms :
Western Union, MoneyGram
Supply Ability :
50000 per day
Delivery Time :
3~7 days
Packaging Details :
Standard Export Carton Box
Rated Current :
100A/ 16mm2, 120A/25mm2
Rated Voltage :
1000V DC
Insulation Resistance :
5000 mΩ Min （Dry） 200 mΩ Min (RH 95%)
Test Voltage :
3000V AC
Minimum Mating Cycles :
100 times
Wire Range :
16 mm2~35mm2
Protection Grade :
IP67B
Operation Temperature :
-40 ℃ ~+125 ℃
Salt Spray Resistance :
144H (mating state)
EMI Shielded :
No
Shell :
Plastic
Connector Type :
Socket/ Receptacle
Description

IP67 DC Power Single Pin Female Socket Receptacle Connector RoHs Certification

Part No.:NPFPR1P6.0

Description:

This product is vehicle mounted high-voltage plastic shell connector, suitable for lithium battery packs for electrical motorcycle, scooter, marine, boat, RV application

Features:
  • Touch Proof
  • Compact Robust Design ,Various Termination Options
  • Non-EMI Shielded
  • Quick Lock and Press-to- Release Design
  • Competitive price from factory with Small MOQ to help you reduce inventories and avoid market risks;
  • Accept OEM & ODM for your customized requirement;

Application:

  • Battery Packs
  • High-voltage Distribution Box
  • Motor & Controller
  • Process Control/Automation
  • Heavy Equipment
  • PTC

Parameters:

Basic Feature
Number of Pins (Poles) 1pin
Terminal Size 6mm
Shell Materials Plastic
Plug Type Receptacle/ Socket
CPA With
Keyway /Poka-yoke A:black, B:Red, C: White, D Green, E: Blue, F:Brown, G:Purple
Cable Connection Method B: Busbar, T: Threaded, C:Crimping
Threaded Hole Size (Busbar & Threaded) M5
EMI Shielded Optional
Electrical Characteristics
Insulation Resistance ＞200mΩ
Rated Voltage 1000VDC/AC
Rated Current 100A/ 120A
Dielectric Voltage 3500VAC/6000VDC
Shielded Effective 70dB( 10KHz-5Mhz) 65 dB(5MHz-500MHz)
HVIL Optional
Mechanical Characteristics
Mating Cycle ≥100 times
Applicable Cable Size 16mm2, 25mm2
Vibration LV215
IP Grade (mated) IP 6K9K/IPX8/IPXXD
IP Grade (unmated) IPXXB
Touch Proof DIN EN60529
Environmental Characteristics
Operational Temp. -40℃ ~125℃
Other LV215
Application
Battery Pack, Motor, PDU, Charging Systems, Inverters

Product Pictures:

IP67 DC Power Single Pin Female Socket Receptacle Connector RoHs Certification

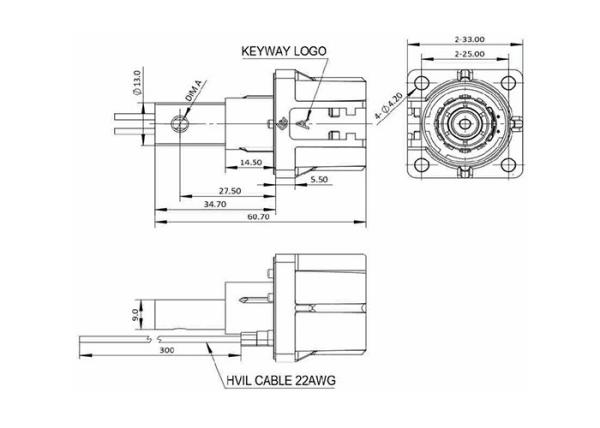

Drawings:

IP67 DC Power Single Pin Female Socket Receptacle Connector RoHs Certification

Company Profile

Neopower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

IP67 DC Power Single Pin Female Socket Receptacle Connector RoHs Certification

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
