Plastic Shell Staright Angle 2pin EV Battery Connector For Electric Car
Plastic Shell Staright Angle 2pin EV Battery Connector For Electric Car
Plastic Shell Staright Angle 2pin EV Battery Connector For Electric Car
Plastic Shell Staright Angle 2pin EV Battery Connector For Electric Car
Plastic Shell Staright Angle 2pin EV Battery Connector For Electric Car
Plastic Shell Staright Angle 2pin EV Battery Connector For Electric Car
Plastic Shell Staright Angle 2pin EV Battery Connector For Electric Car
Plastic Shell Staright Angle 2pin EV Battery Connector For Electric Car
Plastic Shell Staright Angle 2pin EV Battery Connector For Electric Car
Plastic Shell Staright Angle 2pin EV Battery Connector For Electric Car
Specifications
Brand Name :
Neopower
Model Number :
C1079
Certification :
CE IEC FCC RoHs
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable according to Quantities
Payment Terms :
Western Union, MoneyGram
Supply Ability :
50000 per day
Delivery Time :
3~7 days
Packaging Details :
Standard Export Carton Box
Rated Current :
120A (25mm2), 150A (35mm2), 200A (50mm2)
Rated Voltage :
1000V DC
Insulation Resistance :
≥4000mΩ(power)≥1000mΩ(signal)
Dielectric Withstanding Voltage :
3500V AC (power), 1000V AC(signal)
Wire Range :
25 mm2~50mm2
IP Rating :
P67&IP6K9K,IPXXB
Operation Temperature :
-40 ℃ ~+125 ℃
Salt Spray Resistance :
144H (mating state)
HVIL :
Yes
Shell :
Plastic
Description

2Pin Straight Right Angle Electric Car Plug Socket Receptacle EV Connector

Part No.: C1079

Features:

  • Secondary lock function

  • Cable range: 25~50mm2

  • Poka-yoke

  • HVIL

  • Touch-proof

  • 360°shielding

Application:

  • Motor controller
  • Lithium battery, lead-acid battery
  • Driving system
  • charging system

Specifications:

  • Rated current: 120A (25mm2) 150A (35mm2), 200A (50mm2)
  • Rated voltage:1000V
  • Insulation resistance: ≥4000mΩ(power)≥1000mΩ(signal)
  • Dielectric withstanding voltage:3500V AC (power), 1000V AC(signal)
  • Temperature Range: -40~+125 ℃
  • IP Rating: IP67&IP6K9K,IPXXB

Parameters:

Rated Current: 120A (25mm2), 150A (35mm2), 200A (50mm2)
Rated Voltage:

1000V
Insulation Resistance: ≥4000mΩ(power)≥1000mΩ(signal)
Dielectric Withstanding Voltage: 3500V AC (power), 1000V AC(signal)
Temperature Range: -40~+125 ℃
IP Rating: IP67&IP6K9K,IPXXB
Application: Motor controller, battery, driving system, charging system

Product Pictures:

Plastic Shell Staright Angle 2pin EV Battery Connector For Electric Car

Drawings:

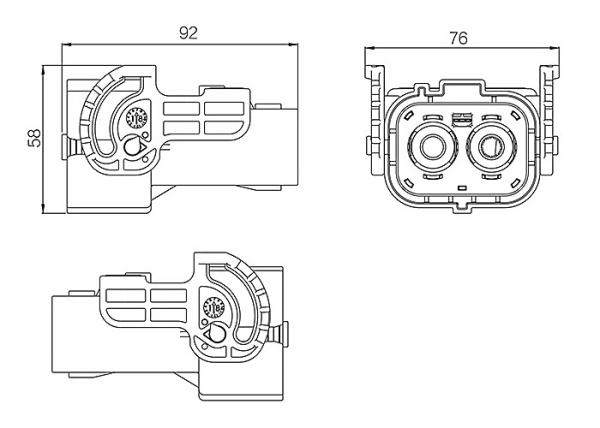

C1079 2pin 180° straight plug

Plastic Shell Staright Angle 2pin EV Battery Connector For Electric Car

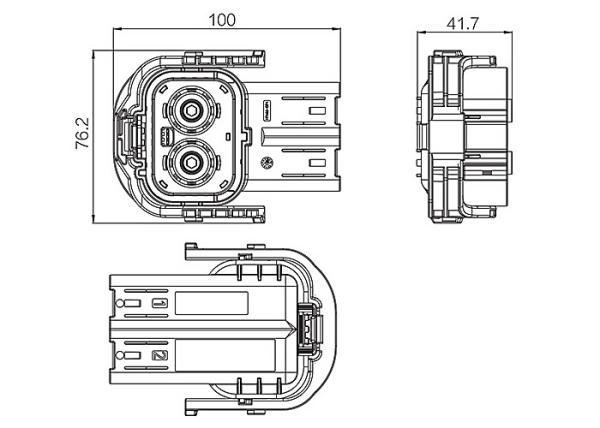

C1079 2pin 90° right angle plug

Plastic Shell Staright Angle 2pin EV Battery Connector For Electric Car

C 1079 2 pin receptacle

Plastic Shell Staright Angle 2pin EV Battery Connector For Electric Car

C 1079 2 pin mounting interface design

Plastic Shell Staright Angle 2pin EV Battery Connector For Electric Car

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

Plastic Shell Staright Angle 2pin EV Battery Connector For Electric Car

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
