250A High Current Power High Voltage Electrical Connectors Touchproof
250A High Current Power High Voltage Electrical Connectors Touchproof
250A High Current Power High Voltage Electrical Connectors Touchproof
250A High Current Power High Voltage Electrical Connectors Touchproof
250A High Current Power High Voltage Electrical Connectors Touchproof
250A High Current Power High Voltage Electrical Connectors Touchproof
250A High Current Power High Voltage Electrical Connectors Touchproof
250A High Current Power High Voltage Electrical Connectors Touchproof
250A High Current Power High Voltage Electrical Connectors Touchproof
250A High Current Power High Voltage Electrical Connectors Touchproof
250A High Current Power High Voltage Electrical Connectors Touchproof
250A High Current Power High Voltage Electrical Connectors Touchproof
250A High Current Power High Voltage Electrical Connectors Touchproof
250A High Current Power High Voltage Electrical Connectors Touchproof
Specifications
Brand Name :
Neopower
Model Number :
C757
Certification :
CE IEC FCC RoHs
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable according to Quantities
Payment Terms :
Western Union, MoneyGram
Supply Ability :
50000 per day
Delivery Time :
3~7 days
Packaging Details :
Standard Export Carton Box
Rated Current :
125A (25mm2) , 150A (35mm2), 200A (50mm2), 250A (70mm2)
Rated Voltage :
800V DC
Insulation Resistance :
≥5000mΩ(power)
Dielectric Withstanding Voltage :
3000V AC (power)
Wire Range :
25 mm2~70mm2
IP Rating :
P67&IP6K9K,IPXXB
Operation Temperature :
-40 ℃ ~+125 ℃
Salt Spray Resistance :
144H (mating state)
HVIL :
Yes
Shell :
Plastic
Angle :
Straight Angle, Right Angle
Description

250A High Current Power High Voltage Electrical Connectors Touchproof

Part No.: C757

Features:

  • Secondary lock function

  • Cable range: 25~70mm2

  • Poka-yoke

  • Touch-proof

  • 360° Wire Outlet

Application:

  • Motor controller
  • Battery Pack
  • PDU

Specifications:

  • Rated current: 125A (25mm2) , 150A (35mm2), 200A (50mm2), 250A (70mm2)
  • Rated voltage: 800V
  • Insulation resistance: ≥5000mΩ(power)
  • Dielectric withstanding voltage:3000V AC (power)
  • Temperature Range: -40~+125 ℃
  • IP Rating: IP67

Parameters:

Rated Current: 125A (25mm2) , 150A (35mm2), 200A (50mm2), 250A (70mm2)
Rated Voltage:

800V
Insulation Resistance: ≥5000mΩ(power)
Dielectric Withstanding Voltage: 3500V AC (power)
Temperature Range: -40~+125 ℃
IP Rating: IP67
Application: Motor controller, Battery Pack, PDU

Product Pictures:

250A High Current Power High Voltage Electrical Connectors Touchproof

Drawings:

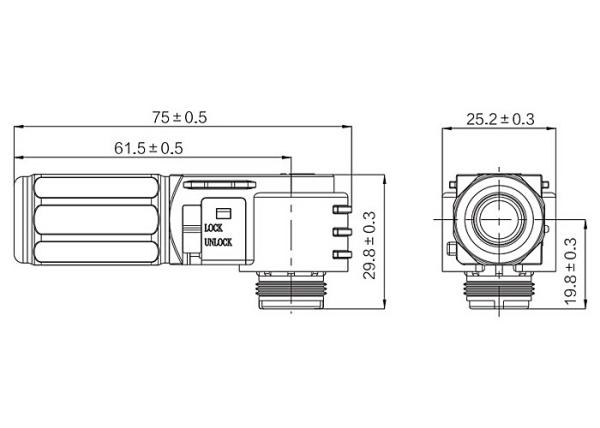

C757 25mm2~35mm2 Single Pin Right Angle 90°plug

250A High Current Power High Voltage Electrical Connectors Touchproof

C757 50mm2~70mm2 Single Pin Right Angle 90°plug

250A High Current Power High Voltage Electrical Connectors Touchproof

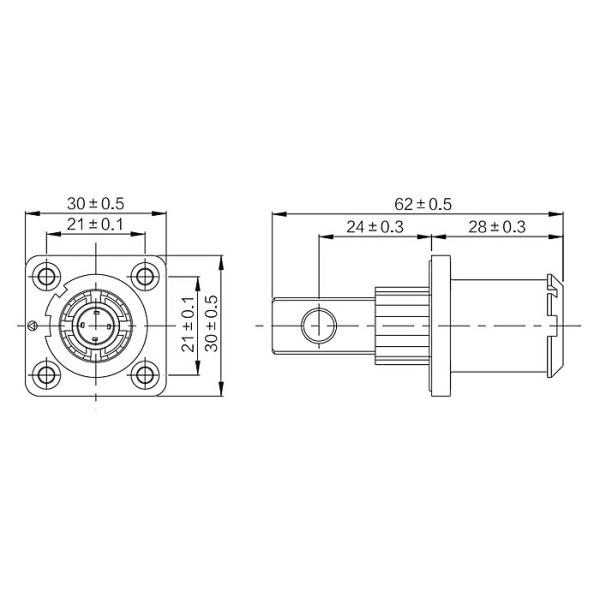

C757 25mm2~35mm2 Single Pin Receptacle

250A High Current Power High Voltage Electrical Connectors Touchproof

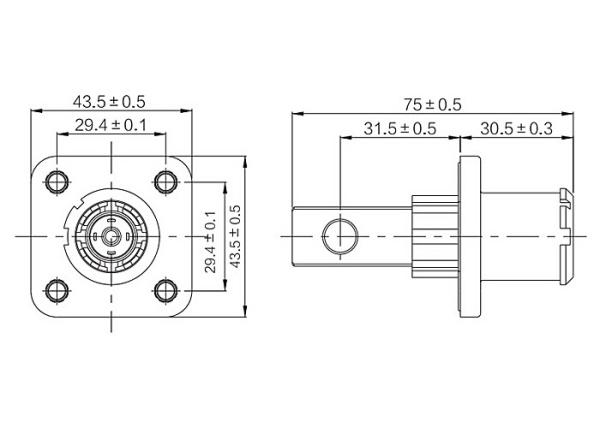

C757 50mm2~70mm2 Single Pin Receptacle

250A High Current Power High Voltage Electrical Connectors Touchproof

C757 25mm2~35mm2 Single Pin Receptacle Interface Mounting Design

250A High Current Power High Voltage Electrical Connectors Touchproof

C757 50mm2~70mm2 Single Pin Receptacle Interface Mounting Design

250A High Current Power High Voltage Electrical Connectors Touchproof

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

250A High Current Power High Voltage Electrical Connectors Touchproof

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
