Touchproof 80A Aviation Wire Connectors For Lithium Battery
Touchproof 80A Aviation Wire Connectors For Lithium Battery
Touchproof 80A Aviation Wire Connectors For Lithium Battery
Touchproof 80A Aviation Wire Connectors For Lithium Battery
Touchproof 80A Aviation Wire Connectors For Lithium Battery
Touchproof 80A Aviation Wire Connectors For Lithium Battery
Touchproof 80A Aviation Wire Connectors For Lithium Battery
Touchproof 80A Aviation Wire Connectors For Lithium Battery
Specifications
Brand Name :
NeoPower
Model Number :
FPT12
Certification :
TUV CE IEC FCC RoHs GB/T
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable according to Quantities
Payment Terms :
Western Union, MoneyGram
Supply Ability :
50000 per day
Delivery Time :
3~7 days
Packaging Details :
Standard Export Carton Box
Rated Current :
5-80A
Rated Voltage :
300V-1000V DC
Insulation Resistance :
5000 mΩ Min （Dry） 200 mΩ Min (RH 95%)
Test Voltage :
1500~3000V AC
Minimum Mating Cycles :
500 times
Wire Range :
0.25mm2~16mm2
Protection Grade :
IP67 (mated)
Operation Temperature :
-40℃ ~+125 ℃
Salt Spray Resistance :
48H (mating state)
Standard :
USCAR-2, USCAR37,RoHS, MIL-C-26482
Description

Signal Transmission Lithium Battery Pack Distribution Box Motor Controller Industrial Machinary Aviation Connectors

Part No.:FPT12

Description:

1. Low current signal connection for battery pack, distribution box, motor controller and other equipment.

2. Onboard charger, PDU, air conditioner, PTC, DC/DC slow charging interface, distribution box and other equipment.

Features:

  • Touch Proof
  • Compact Robust Design ,Various Termination Options
  • EMI Shielded
  • Quick Lock and Press-to- Release Design
  • Competitive price from factory with Small MOQ to help you reduce inventories and avoid market risks;
  • Accept OEM & ODM for your customized requirement;

Application:

  • Battery Packs
  • Electrical Motorcycle
  • Electrical Scooters
  • Ebikes

Parameters:

Electrical Performance
Rated Current 5A~80A
Rated Voltage 300~1000V DC
Insulation Resistance

5000 mΩ Min (Dry)

200 mΩ Min (RH 95%)
Test Voltage 1500~3000V AC
Mechanical Performance
Minimum Mating Cycles 500 times
Wire Range 0.25mm2~16mm2
Environment Performance
Protection Grade IP67 (mated)
Operation Temperature -40 ℃ ~+85 ℃
Salt Spray Resistance 48H (Mating State)
Reference Standard
USCAR-2
USCAR-37
RoHS
MIL-C-26482

Product Pictures:

Touchproof 80A Aviation Wire Connectors For Lithium BatteryTouchproof 80A Aviation Wire Connectors For Lithium Battery

Touchproof 80A Aviation Wire Connectors For Lithium BatteryTouchproof 80A Aviation Wire Connectors For Lithium Battery

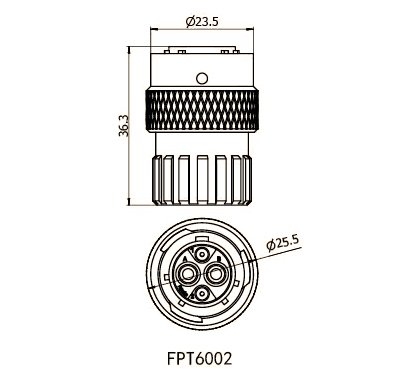

Drawings:

Touchproof 80A Aviation Wire Connectors For Lithium Battery

Touchproof 80A Aviation Wire Connectors For Lithium Battery

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.

Touchproof 80A Aviation Wire Connectors For Lithium Battery

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

Touchproof 80A Aviation Wire Connectors For Lithium BatteryTouchproof 80A Aviation Wire Connectors For Lithium BatteryTouchproof 80A Aviation Wire Connectors For Lithium BatteryTouchproof 80A Aviation Wire Connectors For Lithium Battery
