22AWG Transmission Cable Connector , IP6K9K 10 Pin Terminal Plug Connectors
22AWG Transmission Cable Connector , IP6K9K 10 Pin Terminal Plug Connectors
22AWG Transmission Cable Connector , IP6K9K 10 Pin Terminal Plug Connectors
22AWG Transmission Cable Connector , IP6K9K 10 Pin Terminal Plug Connectors
Specifications
Brand Name :
NeoPower
Model Number :
NSTPP10
Certification :
CE IEC FCC RoHs
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable according to Quantities
Payment Terms :
Western Union, MoneyGram
Supply Ability :
50000 per day
Delivery Time :
3~7 days
Packaging Details :
Standard Export Carton Box
Number of Pins (Poles) :
10 pin
Shell Materials :
Plastic
Connector Type :
Plug
CPA :
No
Keyway /Poka-yoke :
A:black, B:Red
EMI Shielded :
No
Insulation Resistance :
＞200mΩ
Rated Voltage :
1000VDC/AC
Rated Current :
7A/ 22AWG, 13A/16AWG
Dielectric Voltage :
3500VAC/6000VDC
Shielded Efficiency :
70dB( 10KHz-5Mhz) 65 dB(5MHz-500MHz)
HVIL :
Optional
Mating Cycle :
≥100 times
Applicable Cable Size :
16mm2, 25mm2
Vibration :
LV215
IP Grade (mated) :
IP6K9K/IPX8/IPXXD
IP Grade (unmated) :
IPXXB
Touch Proof :
DIN EN60529
Operational Temp. :
-40℃ ~125℃
Application :
Battery Pack, Motor, PDU, Charging Systems, Inverters
Description

10 Pin Terminal Plug Connectors for Lithium Battery Pack BMS Charger Station Signal Transmission

Part No.:NSTPP10

Description:

This product is multi-pin signal transmisson connector, used for Lithium battery, BMS,Motor controller, PDU signal transmission application

Features:
  • Touch Proof
  • Compact Robust Design ,Various Termination Options
  • Non-EMI Shielded
  • Quick Lock and Press-to- Release Design
  • Competitive price from factory with Small MOQ to help you reduce inventories and avoid market risks;
  • Accept OEM & ODM for your customized requirement;

Application:

  • Battery Packs
  • High-voltage Distribution Box
  • Motor & Controller
  • Process Control/Automation
  • Heavy Equipment
  • PTC

Parameters:

Basic Feature
Number of Pins (Poles) 10 poles
Connector Type Plug
CPA No
Keyway /Poka-yoke A:black, B:Red
EMI Shielded No
Electrical Characteristics
Insulation Resistance ＞200mΩ
Rated Voltage 1000VDC/AC
Rated Current 7A/ 22AWG, 13A/16AWG
Dielectric Voltage 3500VAC/6000VDC
Shielded Efficiency 70dB( 10KHz-5Mhz) 65 dB(5MHz-500MHz)
HVIL Optional
Mechanical Characteristics
Mating Cycle ≥100 times
Applicable Cable Size 22AWG, 16AWG
Vibration LV215
IP Grade (mated) IP 6K9K/IPX8/IPXXD
IP Grade (unmated) IPXXB
Touch Proof DIN EN60529
Environmental Characteristics
Operational Temp. -40℃ ~125℃
Other LV215
Application
BMS, Battery Pack, Motor controller, PDU, Charging Systems

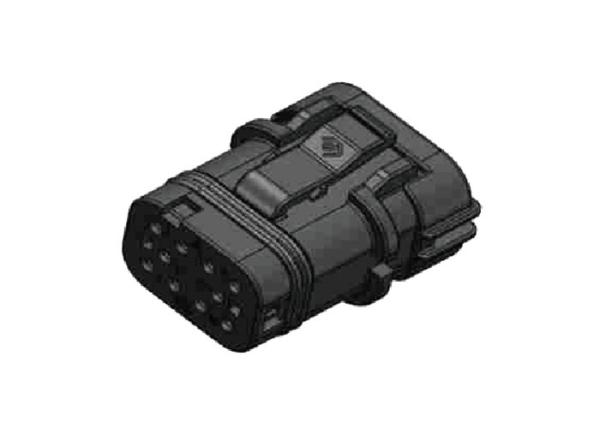

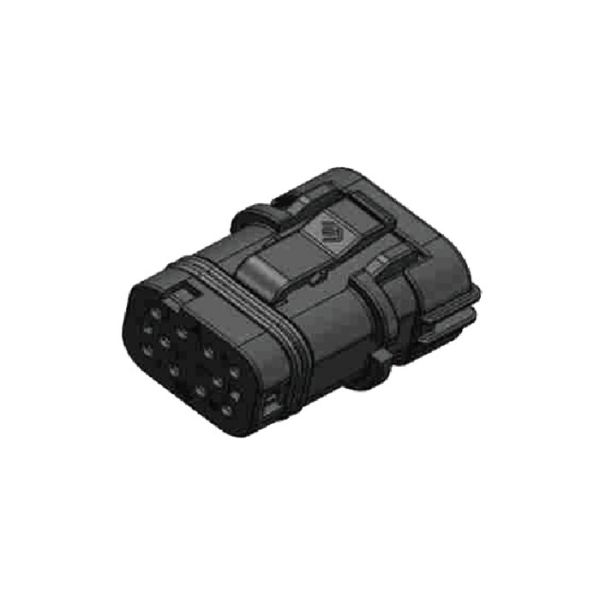

Product Pictures:

22AWG Transmission Cable Connector , IP6K9K 10 Pin Terminal Plug Connectors

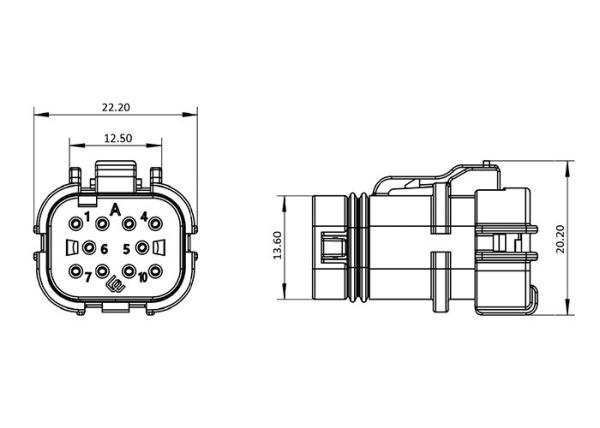

Drawings:

22AWG Transmission Cable Connector , IP6K9K 10 Pin Terminal Plug Connectors

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.

22AWG Transmission Cable Connector , IP6K9K 10 Pin Terminal Plug Connectors

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
