24VDC Transmission Cable Connector , IEC Metal Shell 8 Pin Cable Connector
24VDC Transmission Cable Connector , IEC Metal Shell 8 Pin Cable Connector
24VDC Transmission Cable Connector , IEC Metal Shell 8 Pin Cable Connector
24VDC Transmission Cable Connector , IEC Metal Shell 8 Pin Cable Connector
24VDC Transmission Cable Connector , IEC Metal Shell 8 Pin Cable Connector
24VDC Transmission Cable Connector , IEC Metal Shell 8 Pin Cable Connector
24VDC Transmission Cable Connector , IEC Metal Shell 8 Pin Cable Connector
24VDC Transmission Cable Connector , IEC Metal Shell 8 Pin Cable Connector
Specifications
Brand Name :
Neopower
Model Number :
S1048
Certification :
CE IEC FCC RoHs
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable according to Quantities
Payment Terms :
Western Union, MoneyGram
Supply Ability :
50000 per day
Delivery Time :
3~7 days
Packaging Details :
Standard Export Carton Box
Rated Current :
5A (0.75mm2) 8A (1mm2), 10A (1.50mm2)
Rated Voltage :
24V DC
Insulation Resistance :
2000mΩ(signal)
Dielectric Withstanding Voltage :
1000V AC(signal)
Wire Range :
0.75 mm2~1.50mm2
IP Rating :
IP67
Operation Temperature :
-40 ℃ ~+125 ℃
Shell :
Metal
Description

8 Pin Helical Bayonet 24V Signal Plug Receptacle For Lithium Battery Packs PDU Applications

Part No.: S1048

Description:

  • Bayonet Connection

  • Cable range: 0.75~1.50mm2

  • Poka-yoke

  • Helical Structure

Application:

  • Battery Pack
  • PDU

Specifications:

  • Rated current: 5A (0.75mm2) 8A (1mm2), 10A (1.50mm2)
  • Rated voltage:24V
  • Insulation resistance: ≥2000mΩ
  • Dielectric withstanding voltage:1000V AC(signal)
  • Temperature Range: -40~+125 ℃
  • IP Rating: IP67

Parameters:

Rated Current: 5A (0.75mm2) 8A (1mm2), 10A (1.50mm2)
Rated Voltage:

24V
Insulation Resistance: ≥2000mΩ
Dielectric Withstanding Voltage: 1000V AC(signal)
Temperature Range: -40℃~+125 ℃
IP Rating: IP67
Application: battery pack, PDU

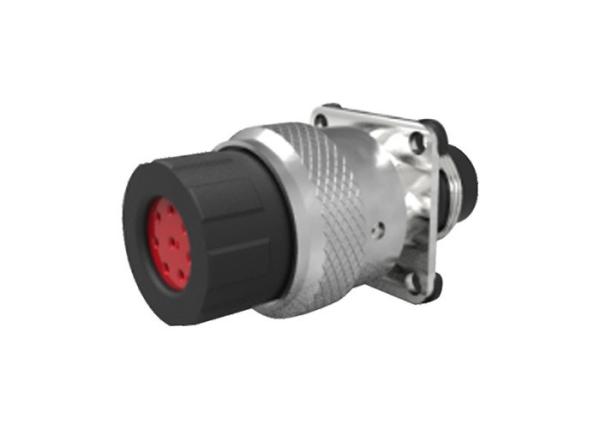

Product Pictures:

24VDC Transmission Cable Connector , IEC Metal Shell 8 Pin Cable Connector

Drawings:

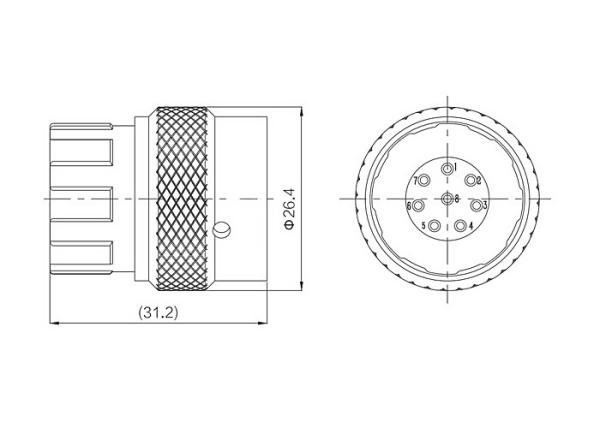

S1048-EV-S8P plug

24VDC Transmission Cable Connector , IEC Metal Shell 8 Pin Cable Connector

S1048-EV-P8R Receptacle

24VDC Transmission Cable Connector , IEC Metal Shell 8 Pin Cable Connector

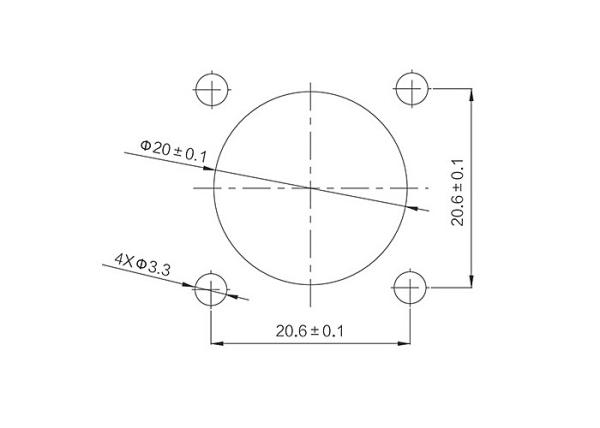

S1048 8-pin Receptacle Mounting Interface
24VDC Transmission Cable Connector , IEC Metal Shell 8 Pin Cable Connector

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

24VDC Transmission Cable Connector , IEC Metal Shell 8 Pin Cable Connector

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
